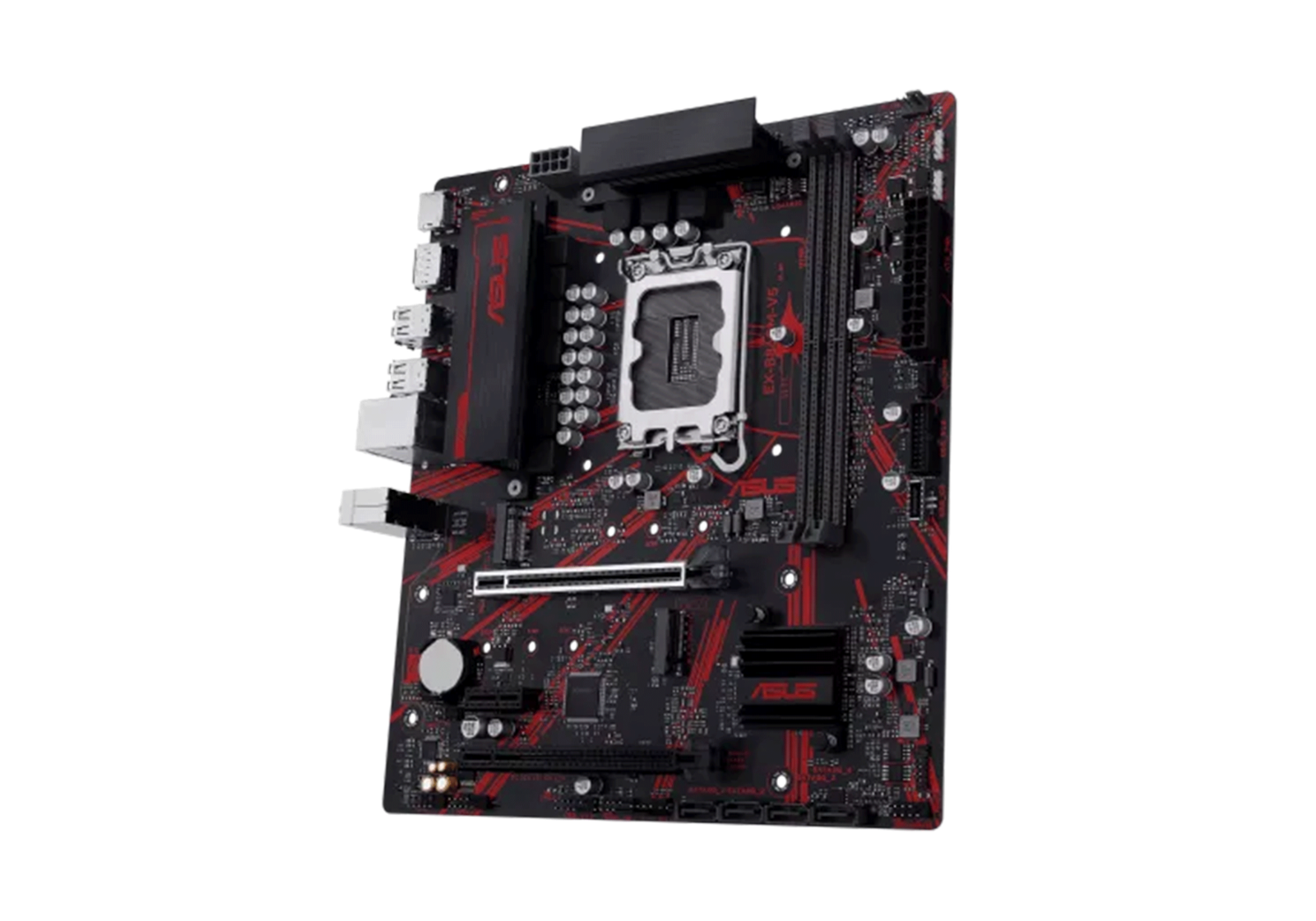

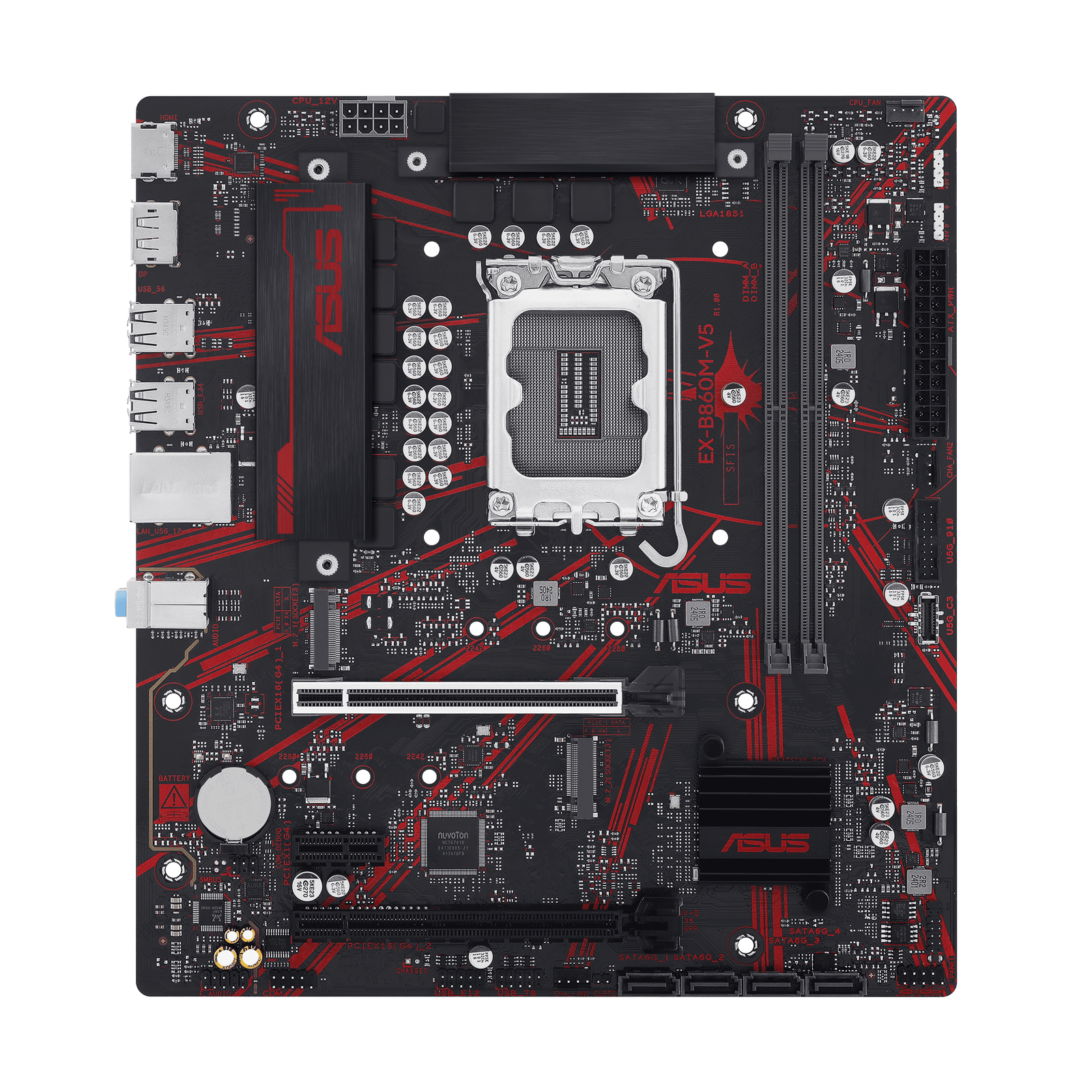

ASUS EX-B860M-V5, an Intel(R) B860 Motherboard

0: ” Support Intel(R) Core(TM) Ultra Processors (Series 2) , LGA1851* Supports Intel(R) Turbo Boost Technology 2.0 and Intel(R) Turbo Boost Max Technology 3.0** * Refer to https://www.asus.com/support/download-center/ for CPU support list. ** Intel(R) Turbo Boost Max Technology 3.0 support depends on the CPU types” Chipset: ” Intel(R) B860 Chipset” Memory: “2 x DIMM slots, max. 128GB, DDR5 Supports up to 8800+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)* Dual channel memory architecture Supports Intel(R) Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III(AEMPIII) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market. ** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.” Graphics: ” 1 x DisplayPort** 1 x HDMI(TM) port*** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. **** VGA resolution support depends on processors’ or graphic cards’ resolution” Expansion Slots: “Intel(R) Core(TM) Ultra Processors (Series 2) 1 x PCIe 4.0 x16 slot Intel(R) B860 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x1 slot – To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals” Storage: ” Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel(R) Core(TM) Ultra Processors (Series 2) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) Intel(R) B860 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel(R) Rapid Storage Technology supports SATA RAID 0/1/5/10″ Ethernet: ” 1 x Realtek 2.5Gb Ethernet ASUS LANGuard ” USB: ” Rear USB (Total 6 ports) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 5Gbps connector (supports USB Type-C(R)) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports * USB Type-C(R) power delivery output: max. 5V/3A ** USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth” Audio: “Realtek 7.1 Surround Sound High Definition Audio CODEC* – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback Audio Features – Audio Shielding – Premium audio capacitors – Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.” Back Panel I/O Ports: ” 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI(TM) port 1 x Realtek 2.5Gb Ethernet 3 x Audio jacks” Internal I/O Connectors: ” Fan and Cooling Related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector Storage Related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps connector (supports USB Type-C(R)) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x 10-1 pin Front Panel System header” Special Features: ” ASUS 5X PROTECTION III – DIGI+ VRM – LANGuard – Overvoltage protection – SafeSlot Core+ – Stainless-steel back I/O ASUS Q-Design – Q-Dashboard – Q-DIMM – Q-LED Core – Q-Slot ASUS Thermal Solution – VRM heatsink design ASUS EZ DIY – ProCool Non-stop Action – Lightning Boot Non-stop Challenger – ASUS iCafe labs certified Non-stop Durability – Luminous anti-moisture coating – USBGuard” BIOS: 256 (128+128) Mb Flash ROM, UEFI AMI BIOS Manageability: WOL by PME, PXE Accessories: ” Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O shield 1 x M.2 anchor package Documentation 1 x Quick start guide” Operating System: ” Windows 11 (22H2 & later), Windows 10 64-bit (21H2 & later)” Form Factor: ” micro-ATX Form Factor 9.6 inch x 8.75 inch ( 24.4 cm x 22.2 cm )
