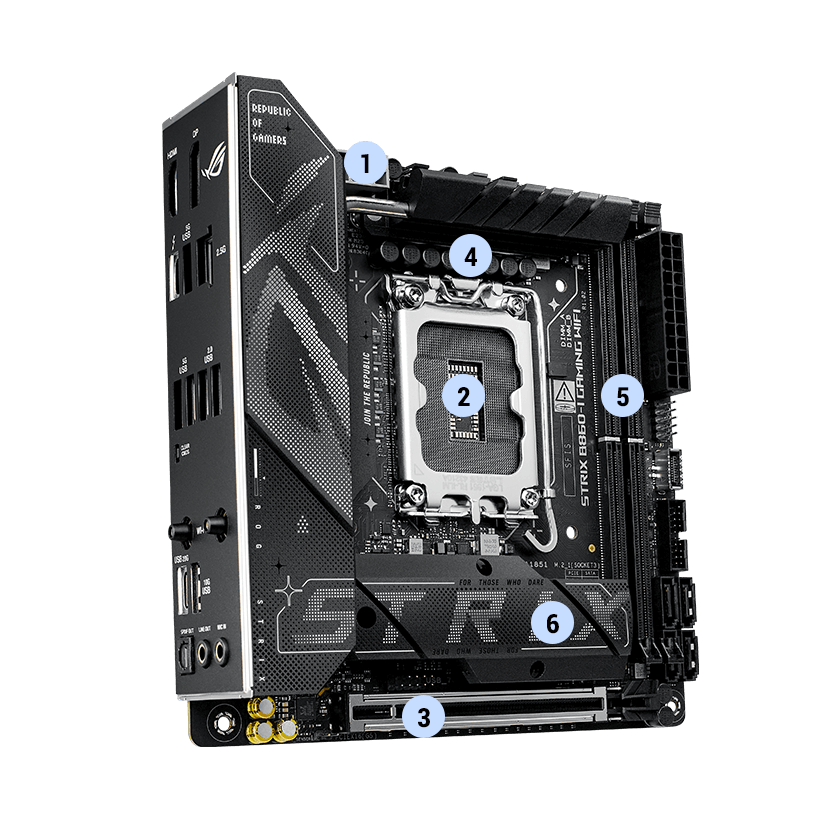

ASUS ROG STRIX B860-I GAMING WIFI Motherboard
✅ In Stock
🚚 Ships in 24–48 hours
The ROG Strix B860-I Gaming WiFi is designed to dominate with Intel(R) Core(TM) Ultra Processors(Series 2). Its advanced power design and AI solutions drive top-tier performance, while Thunderbolt(TM) 4, WiFi 7 and high-speed DDR5 slots offer cutting-edge connectivity. This motherboard delivers the power and speed needed for elite gaming and demanding AI applications
Build Includes
- 🔒 100% Sealed & Genuine Product
- 🔄 Easy Returns
- 🚚 Free & Safe Shipping
- 📸 Sealed Product Pictures Shared Pre-shipping
- Clean Cable Management
- 🔒 100% Sealed & Genuine Product
- 🔄 Easy Returns
- 🚚 Free & Safe Shipping
- 📸 Sealed Product Pictures Shared Pre-shipping
- Clean Cable Management
- 🔒 100% Sealed & Genuine Product
- 🔄 Easy Returns
- 🚚 Free & Safe Shipping
- 📸 Sealed Product Pictures Shared Pre-shipping
- Clean Cable Management
PRODUCT OVERVIEW
- CPU: Support Intel(R) Core(TM) Ultra Processors
- (Series 2)
- Supports Intel(R) Turbo Boost Technology 2.0
- and Intel(R) Turbo Boost Max Technology 3.0
- Refer to
- https://www.asus.com/support/download-center/ for CPU support list.
- Intel(R) Turbo Boost Max Technology 3.0
- support depends on the CPU types.
- Chipset: Intel(R) B860 Chipset
- Memory: 2 x DIMM slots, max. 128GB, DDR5
- Supports up to 9066+MT/s (OC), Non-ECC
- Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)
- Dual channel memory architecture
- DIMM Fit
- Supports Intel(R) Extreme Memory Profile
- (XMP) memory module
- ASUS Enhanced Memory Profile III (AEMP III)
- Adjustments will be made based on the specifications of mass-produced memory products available on the market.
- Supported memory types, data rate
- (speed), and number of DRAM modules vary depending on the CPU and memory
- configuration, for more information please refer to CPU/Memory Support list
- under the Support tab of product information site or visit
- https://www.asus.com/support/download-center/.
- *Non-ECC, un-buffered DDR5 memory
- supports On-Die ECC function.
- Graphics: 1 x DisplayPort
- 1 x HDMI(TM) port
- 1 x Intel(R) Thunderbolt(TM) 4 supports
- DisplayPort and Thunderbolt(TM) video outputs
- Graphics specifications may vary between
- CPU types. Please refer to www.intel.com for any updates.
- Supports max. 4K@60Hz as specified in
- DisplayPort 1.4.
- Supports 4K@60Hz as specified in HDMI
- 2.1.
- Supports up to 8K@60Hz x1 with DSC,
- maximum total bandwidth up to 23.8Gbps, for resolution support please check
- DisplayPort 2.1 specs.
- VGA resolution support depends on
- processors’ or graphic cards’ resolution.
- Expansion Slots: Intel(R) Core(TM) Ultra Processors (Series 2)
- 1 x PCIe 5.0 x16 slot
- – To ensure compatibility of the device
- installed, please refer to https://www.asus.com/support/download-center/ for
- the list of supported peripherals.

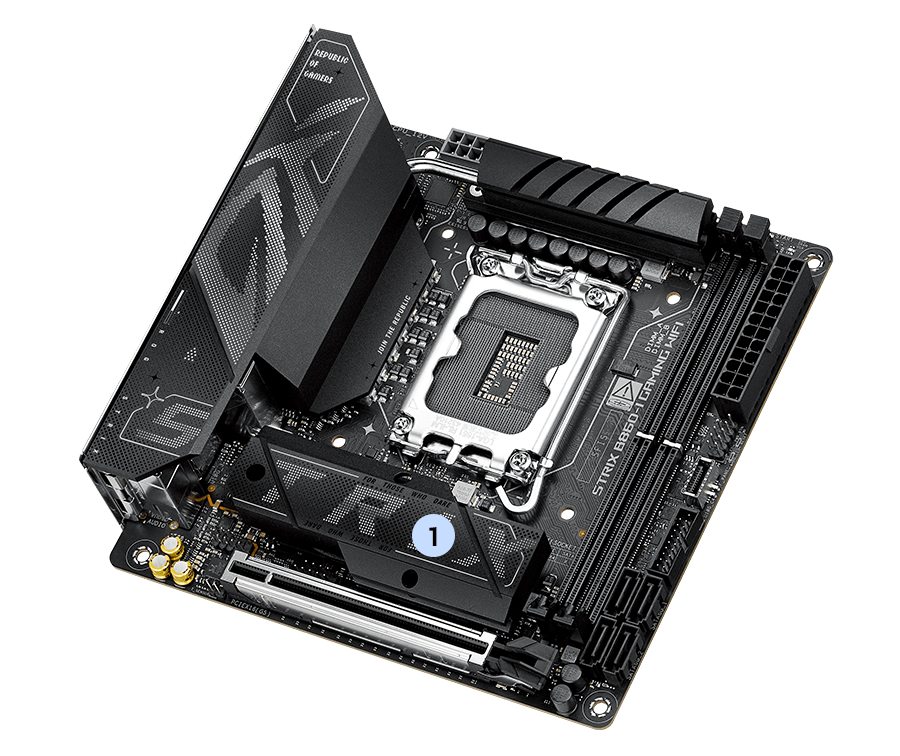

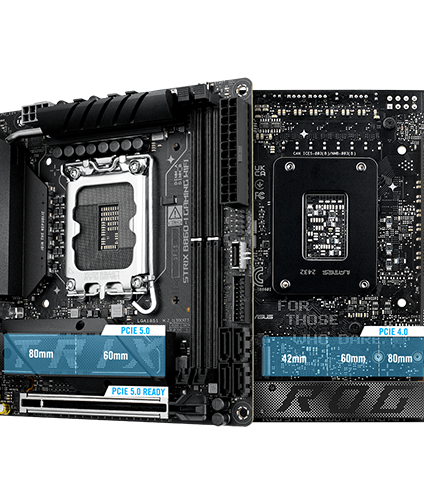

- Storage: Total supports 2 x M.2 slots and 4 x SATA
- 6Gb/s ports
- Intel(R) Core(TM) Ultra Processors (Series 2)
- M.2_1 slot (Key M), type 2260/2280
- (supports PCIe 5.0 x4 mode)
- Intel(R) B860 Chipset
- M.2_2 slot (Key M), type 2242/2260/2280
- (supports PCIe 4.0 x4 mode)
- 4 x SATA 6Gb/s ports
- Intel(R) Rapid Storage Technology supports
- SATA RAID 0/1/5/10.
- Ethernet: 1 x Intel(R) 2.5Gb Ethernet
- ASUS LANGuard
- Wireless & Bluetooth: Wi-Fi 7
- 2×2 Wi-Fi 7 (802.11be)
- Supports 2.4/5/6GHz frequency band
- Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
- Bluetooth(R) v5.4
- Wi-Fi features may vary depending on the operating system
- For
- Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi
- 6E.
- For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor’s website for details.
- Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
- The Bluetooth(R) version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications.
- USB: Rear USB (Total 8 ports)
- 1 x Thunderbolt(TM) 4 port (1 x USB Type-C(R))
- 1 x USB 20Gbps port (1 x USB Type-C(R))
- 1 x USB 10Gbps ports (1 x Type-A)
- 3 x USB 5Gbps ports (3 x Type-A)
- 2 x USB 2.0 ports (2 x Type-A)
- Front USB (Total 5 ports)
- 1 x USB 10Gbps connector (supports USB
- Type-C(R))
- 1 x USB 5Gbps header supports 2 additional
- USB 5Gbps ports
- 1 x USB 2.0 header supports 2 additional
- USB 2.0 ports
- USB Type-C(R) power delivery output: max.
- 5V/3A
- Audio: Realtek ALC1220P 7.1 Surround Sound High
- Definition Audio CODEC
- – Impedance sense for front and rear
- headphone outputs
- – Internal audio Amplifier to enhance the
- highest quality sound for headphone and speakers
- – Supports: Jack-detection,
- Multi-streaming, Front Panel Jack-retasking
- – High quality 120 dB SNR stereo playback
- output and 113 dB SNR recording input (Line-in)
- – Supports up to 32-Bit/192 kHz
- playback
- Audio Features
- – SupremeFX Shielding Technology
- – Savitech SV3H712 AMP
- – Rear optical S/PDIF out port
- – Premium audio capacitors
- – Dedicated audio PCB layers
- Due to limitations in HDA bandwidth,
- 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
- A chassis with an HD audio module in the
- front panel is required to support 7.1 Surround Sound audio output.
- Back Panel I/O Ports: 1 x Thunderbolt(TM) 4 port (1 x USB Type-C(R))
- 1 x USB 20Gbps port (1 x USB Type-C(R))
- 1 x USB 10Gbps ports (1 x Type-A)
- 3 x USB 5Gbps ports (3 x Type-A)
- 2 x USB 2.0 ports (2 x Type-A)
- 1 x DisplayPort
- 1 x HDMI(TM) port
- 1 x Wi-Fi module
- 1 x Intel(R) 2.5Gb Ethernet port
- 2 x Audio jacks
- 1 x Optical S/PDIF out port
- 1 x Clear CMOS button
- Internal I/O Connectors: Fan and Cooling Related
- 1 x 4-pin CPU Fan header
- 1 x 4-pin AIO Pump header
- 1 x 4-pin Chassis Fan headers
- Power Related
- 1 x 24-pin Main Power connector
- 1 x 8-pin +12V CPU Power connector
- Storage Related
- 2 x M.2 slots (Key M)
- 4 x SATA 6Gb/s ports
- USB
- 1 x USB 10Gbps connector (supports USB
- Type-C(R))
- 1 x USB 5Gbps header supports 2 additional
- USB 5Gbps ports
- 1 x USB 2.0 header supports 2 additional
- USB 2.0 ports
- Miscellaneous
- 2 x Addressable Gen2 headers
- 1 x Front Panel Audio header (F_AUDIO)
- 1 x 10-1 pin Front System Panel header
- 1 x Thermal Sensor header
- Special Features: Extreme Engine Digi+
- – 5K Black metallic capacitors
- ASUS Q-Design
- – PCIe Slot Q-Release Slim (with PCIe
- SafeSlot)
- – M.2 Q-Latch
- – Q-Antenna
- – Q-Dashboard
- – Q-DIMM
- – Q-LED (CPU [red], DRAM [yellow], VGA
- [white], Boot Device [yellow green])
- – Q-Slot
- ASUS Thermal Solution
- – M.2 heatsink backplate
- – M.2 heatsink
- – VRM heatsink design
- ASUS EZ DIY
- – Clear CMOS button
- – CPU Socket lever protector
- – ProCool
- – Pre-mounted I/O shield
- – SafeSlot
- – SafeDIMM
- Aura Sync
- – Addressable Gen2 headers
- Software Features: ROG Exclusive Software
- – ROG CPU-Z
- – Dolby Atmos
- ASUS Exclusive Software
- Armoury Crate
- – Aura Creator
- – Aura Sync
- – Fan Xpert 4
- – GameFirst
- – Power Saving
- AIDA64 Extreme (60 days free trial)
- HWiNFO
- ASUS AI Advisor
- ASUS DriverHub
- ASUS GlideX
- TurboV Core
- Adobe Creative Cloud (Free Trial)
- Norton 360 for Gamers (60 Days Free Trial)
- WinRAR (40 Days Free Trial)
- UEFI BIOS
- ASUS EZ DIY
- – ASUS CrashFree BIOS 3
- – ASUS EZ Flash
- – ASUS UEFI BIOS EZ Mode
- – ASUS MyHotkey
- NPU Boost
- BIOS: 256Mb Flash ROM, UEFI AMI BIOS
- Manageability: WOL by PME, UEFI PXE
- Accessories: Cables
- 2 x SATA 6Gb/s cables
- 1 x ROG USB2.0 splitter cable
- 1 x Panel cable
- Miscellaneous
- 1 x ASUS WiFi Q-Antenna
- 1 x Cable ties package
- 1 x M.2 Q-Latch package
- 1 x Screw package for M.2 SSD
- 1 x M.2 Bracket
- 1 x ROG key chain
- 1 x ROG Strix stickers
- Documentation
- 1 x Quick start guide
- Operating System: Windows 11 (22H2 & later)
- Form Factor: Mini-ITX Form Factor
- 6.7 inch x 6.7 inch ( 17 cm x 17 cm )
