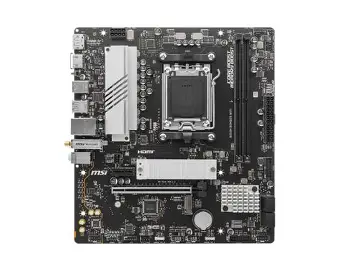

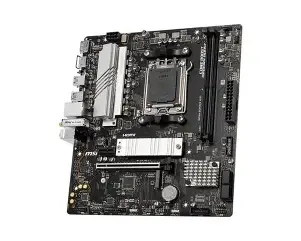

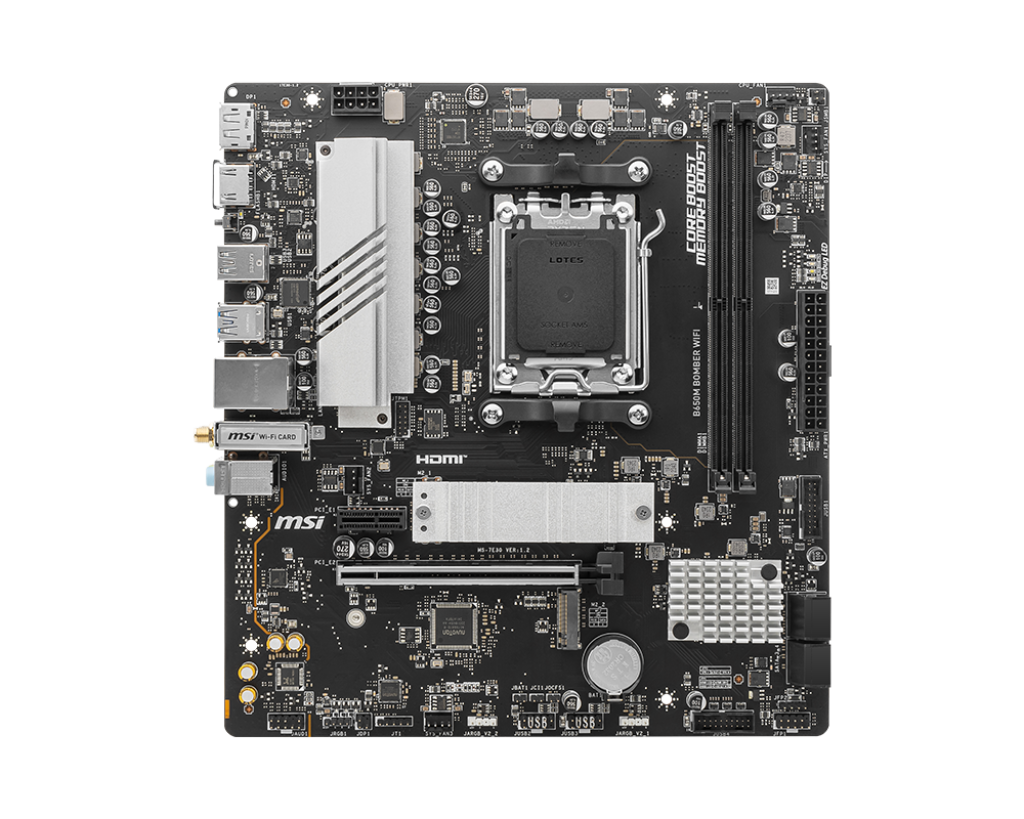

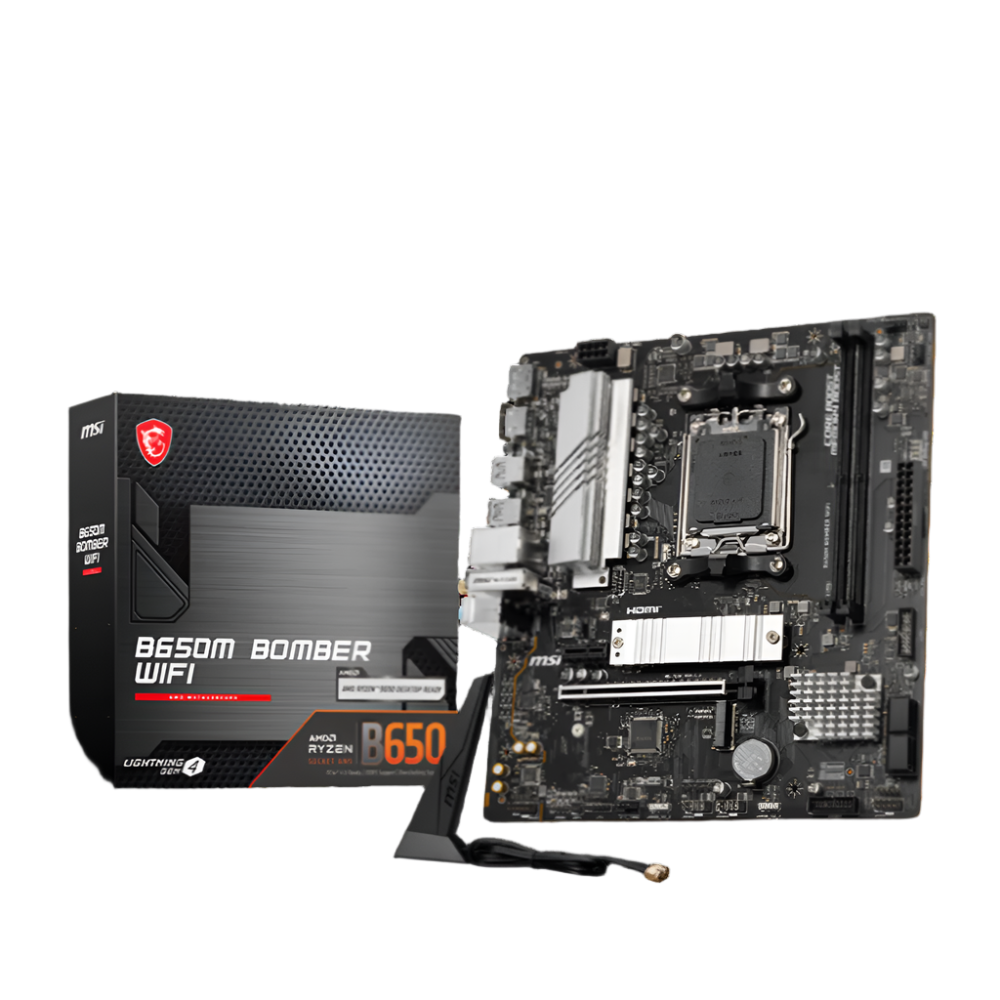

MSI B650M BOMBER WIFI Motherboard

Chipset: AMD B650 CPU: Supports AMD Ryzen(TM) 9000/ 8000/ 7000 Series Desktop Processors: Socket AM5 Memory: 2x DDR5, Maximum Memory Capacity 128GB: Memory Support DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MT/s Onboard Graphics: 1x HDMI(TM): Support HDMI(TM) 2.1, maximum resolution of 4K 60Hz*: 1x DisplayPort: Support DP 1.4, maximum resolution of 4K 60Hz*: *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. Slot: 1x PCI-E x16 slot (Qty): Supports x16/x1: ? Supports x16 (For Ryzen(TM) 9000/ 7000 Series processors): ? Supports x8 (For Ryzen(TM) 8700/ 8600/ 8400 Series processors): ? Supports x4 (For Ryzen(TM) 8500/ 8300 Series processors): 1x PCI-E x1 slot (Qty): PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset): PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU) Audio: Realtek(R) ALC897 Codec: 7.1-Channel High Definition Audio Storage: 2x M.2 (Qty): M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices: M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices: 4x SATA 6G (Qty): ? The M2_2 slot will be unavailable when using Ryzen(TM) 8500/ 8300 Series processor RAID: Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices: Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices USB: 2x USB 2.0 (Rear): 4x USB 2.0 (Front): 3x USB 5Gbps Type A (Rear): 1x USB 5Gbps Type C (Rear): 4x USB 5Gbps Type A (Front) LAN: Realtek(R) RTL8125BG 2.5Gbps LAN Internal IO: 1x Power Connector(ATX_PWR): 1x Power Connector(CPU_PWR): 1x CPU Fan: 3x System Fan: 2x Front Panel (JFP): 1x Chassis Intrusion (JCI): 1x Front Audio (JAUD): 2x Addressable V2 RGB LED connector (JARGB_V2): 1x RGB LED connector(JRGB): 1x TPM pin header(Support TPM 2.0): 4x USB 2.0 ports: 4x USB 5Gbps Type A ports WIRELESS LAN & BLUETOOTH: Wi-Fi 6E: The Wireless module is pre-installed in the M.2 (Key-E) slot: Supports MU-MIMO TX/RX: Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands: Supports 802.11 a/ b/ g/ n/ ac/ ax: : Supports Bluetooth(R) 5.3**: : * The usage of Wi-Fi 6GHz band relies on Windows 11 support and depends on every country?s regulations.: ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor?s website for details. LED FEATURE: 4x EZ Debug LED BACK PANEL PORTS: : DisplayPort: HDMI(TM): Flash BIOS Button: USB 5Gbps Type-A: 2.5G LAN: Wi-Fi / Bluetooth: Audio connectors: USB 5Gbps Type-C: USB 2.0: OPERATING SYSTEM: Support for Windows(R) 11 64-bit, Windows(R) 10 64-bit BOX CONTENT: PCB Info: mATX: 226mmx243.84mm
