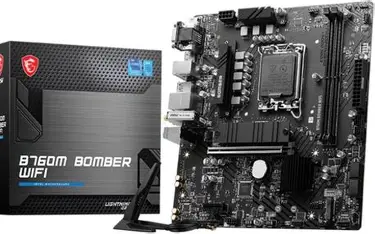

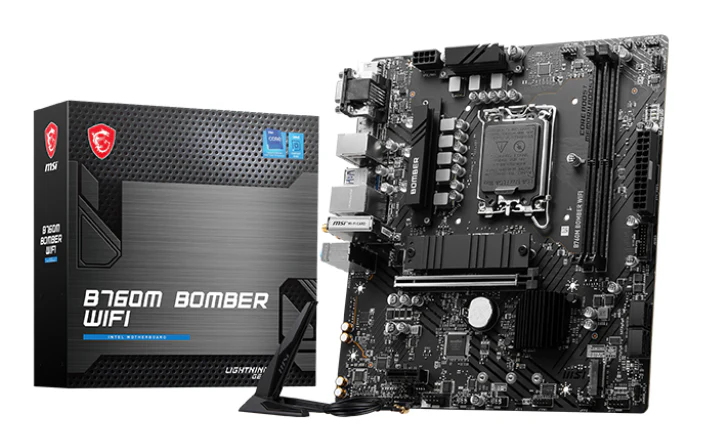

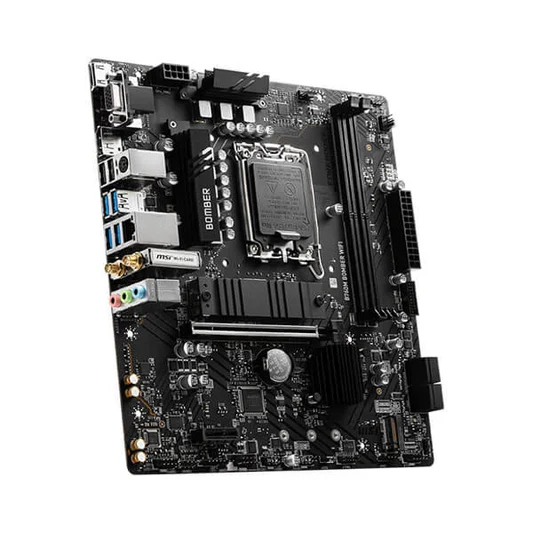

MSI B760M BOMBER WIFI DDR5 Motherboard

Chipset: INTEL B760 CPU: Support Intel(R) Core(TM) 14th/ 13th/ 12th Gen Processors, Intel(R) Pentium(R) Gold and Celeron(R) Processors: LGA 1700 Memory: 2x DDR5, Maximum Memory Capacity 64GB: Memory Support 7200(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) Onboard Graphics: 1x HDMI(TM): Support HDMI(TM) 2.1 with HDR, maximum resolution of 4K 60Hz* ; 1x DisplayPort: Support DP 1.4, maximum resolution of 4K 60Hz*: 1x D-Sub: Support VGA, maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz: *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. Slot: 1x PCI-E x16 slot (Qty): 1x PCI-E x1 slot (Qty): PCI_E1 Gen PCIe 4.0 supports up to (From CPU): PCI_E2 Gen PCIe 4.0 supports up to (From Chipset) Audio: Realtek(R) ALC897 Codec: 7.1-Channel High Definition Audio Storage: 2x M.2 (Qty): M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices: M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices: 4x SATA 6G (Qty): * SATA7 will be unavailable when installing M.2 SATA SSD in the M2_2 slot. RAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices USB: 2x USB 2.0 (Rear): 4x USB 2.0 (Front): 4x USB 5Gbps Type A (Rear): 2x USB 5Gbps Type A (Front) LAN: Realtek(R) RTL8125B 2.5Gbps LAN Internal IO: 1x Power Connector(ATX_PWR): 1x Power Connector(CPU_PWR): 1x CPU Fan: 2x System Fan: 2x Front Panel (JFP): 1x Chassis Intrusion (JCI): 1x Front Audio (JAUD): 1x Com Port (JCOM): 2x Addressable V2 RGB LED connector (JARGB_V2): 1x RGB LED connector(JRGB): 1x TPM pin header(Support TPM 2.0): 4x USB 2.0 ports: 2x USB 5Gbps Type A ports WIRELESS LAN & BLUETOOTH: Intel(R) Wi-Fi 6E: The Wireless module is pre-installed in the M.2 (Key-E) slot: Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps: Supports 802.11 a/ b/ g/ n/ ac/ ax: : Supports Bluetooth(R) 5.3, FIPS, FISMA: : * Wi-Fi 6E 6GHz may depend on every country?s regulations and will be ready in Windows 11.: ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. LED FEATURE: 4x EZ Debug LED BACK PANEL PORTS: : HDMI(TM): VGA: DisplayPort: Keyboard / Mouse: 2.5G LAN: Wi-Fi / Bluetooth: Audio Connectors: USB 2.0: USB 3.2 Gen 1 5Gbps (Type-A): OPERATING SYSTEM: Support for Windows(R) 11 64-bit, Windows(R) 10 64-bit PCB Info: mATX: 220mmx243.84mm
