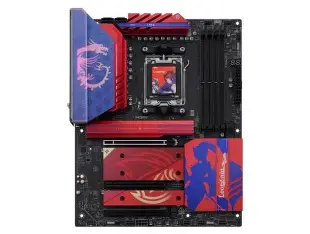

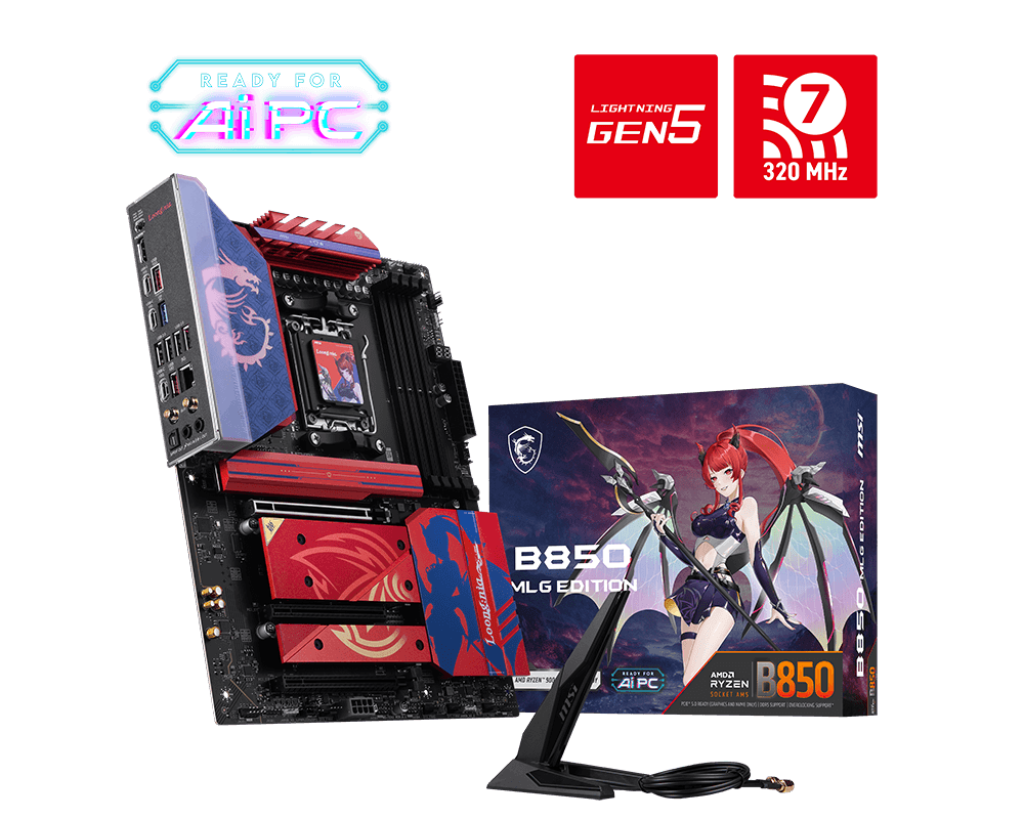

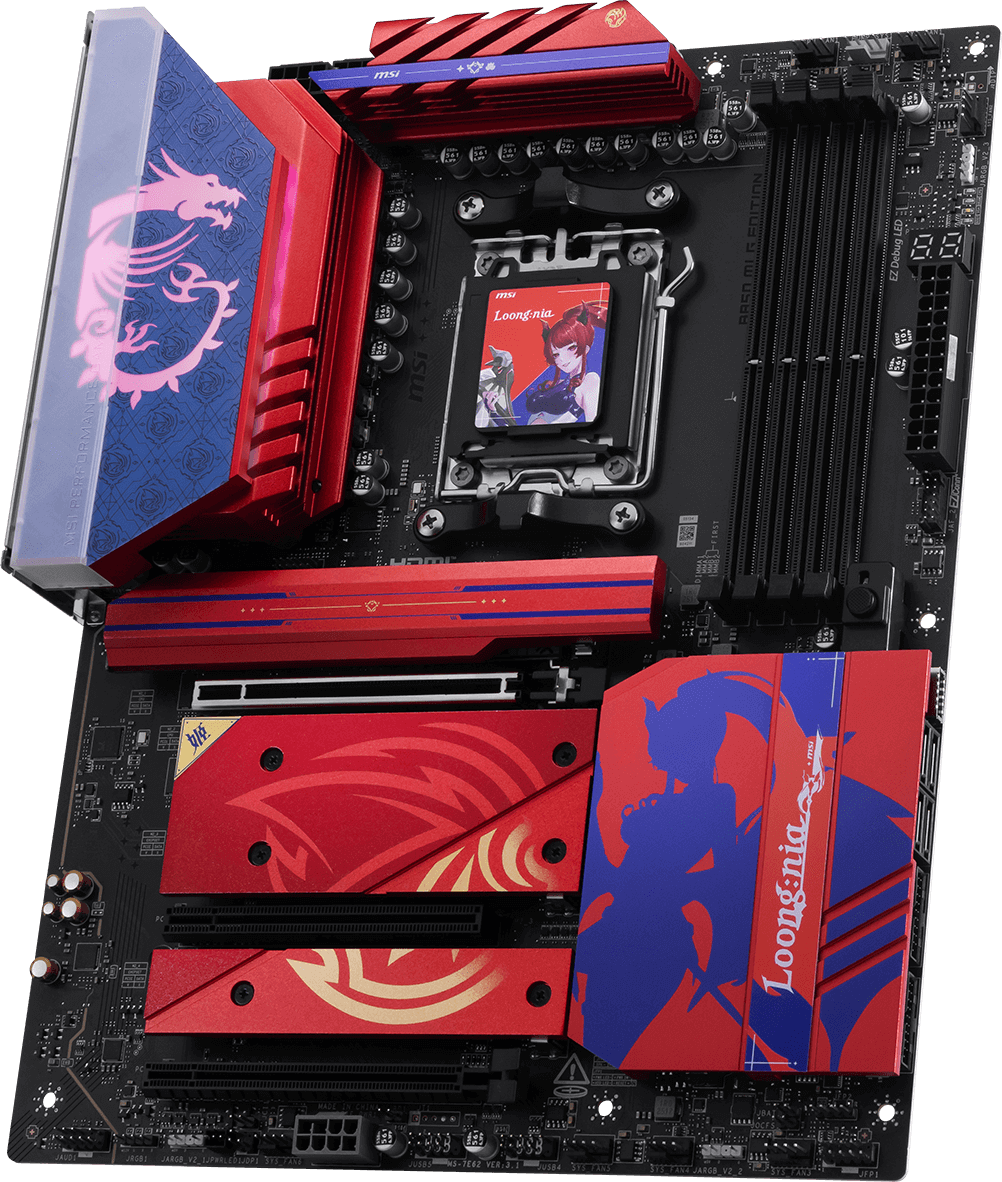

MSI B850 MLG EDITION Motherboard

Chipset: AMD B850 CPU: Socket AM5 Memory: 4x DDR5 UDIMM: Ryzen(TM) 9000 Series Processors max. overclocking frequency: Onboard Graphics: Support HDMITM 2.1 with FRL port, supporting a maximum resolution of 8K 60Hz*: *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. Slot: 3x PCI-E x16 slot: : PCI_E1 slot: ? Supports PCIe 5.0 x16 (For Ryzen(TM) 9000/ 7000 Series processors): ? Supports PCIe 4.0 x8 (For Ryzen(TM) 8700/ 8600/ 8400 Series processors): ? Supports PCIe 4.0 x4 (For Ryzen(TM) 8500/ 8300 Series processor): : *PCI_E3 slot will run x2 speed when installing devices in the M.2_3 slot Audio: Realtek(R) ALC4080 Codec: 7.1-Channel USB High-Performance Audio: Supports up to 32-Bit/384 kHz playback on front panel: Supports S/PDIF output Storage: 4x M.2: : M.2_1 slot: ? Supports up to PCIe 5.0 x4 (For Ryzen(TM) 9000/ 7000 Series processors): ? Supports up to PCIe 4.0 x4 (For Ryzen(TM) 8000 Series processors): : M.2_2 slot: ? Supports up to PCIe 5.0 x4 (For Ryzen(TM) 9000/ 7000 Series processors): ? Supports up to PCIe 4.0 x4 (For Ryzen(TM) 8700/ 8600 / 8400 Series processors): ? Supports up to PCIe 4.0 x2 (For Ryzen(TM) 8500/ 8300 Series processors) RAID: ? Supports RAID 0, RAID 1 and RAID 10* for M.2 NVMe storage devices: *RAID 10 for M.2 NVMe storage devices is only supported by AMD Ryzen 9000/7000 series CPU LAN: 1x Realtek(R) 8126 5G LAN: Internal IO: 1x Power Connector(ATX_PWR): 2x Power Connector(CPU_PWR): 1x Power Connector(PCIE_PWR 8pin): 1x CPU Fan: 1x Combo Fan (Pump_Sys Fan): 6x System Fan: 1x EZ Conn-header (JAF_2): 2x Front Panel (JFP): 1x Chassis Intrusion (JCI): 1x Front Audio (JAUD): 3x Addressable V2 RGB LED connector (JARGB_V2): 1x RGB LED connector(JRGB): 1x TPM pin header(Support TPM 2.0) WIRELESS LAN & BLUETOOTH: Wi-Fi 7: The Wireless module is pre-installed in the M.2 (Key-E) slot: Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps: Supports 802.11 a/ b/ g/ n/ ac/ ax/ be: : Supports Bluetooth(R) 5.4**, MLO, 4KQAM: : * 6GHz band support may depend on every country?s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.: ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor?s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2. LED FEATURE: 4x EZ Debug LED: 1x EZ Digit Debug LED: 1x EZ Memory Detection LED BACK PANEL PORTS: : Clear CMOS Button: USB 10Gbps Type-A: USB 5Gbps Type-A: USB 2.0: 5G LAN: Wi-Fi / Bluetooth: Audio Connectors: Flash BIOS Button: HDMI(TM): USB 10Gbps Type-C: USB 10Gbps Type-A: USB 10Gbps Type-C: Optical S/PDIF Out: OPERATING SYSTEM: Support for Windows(R) 11 64-bit BOX CONTENT: PCB Info 304.8mmx243.84mm
