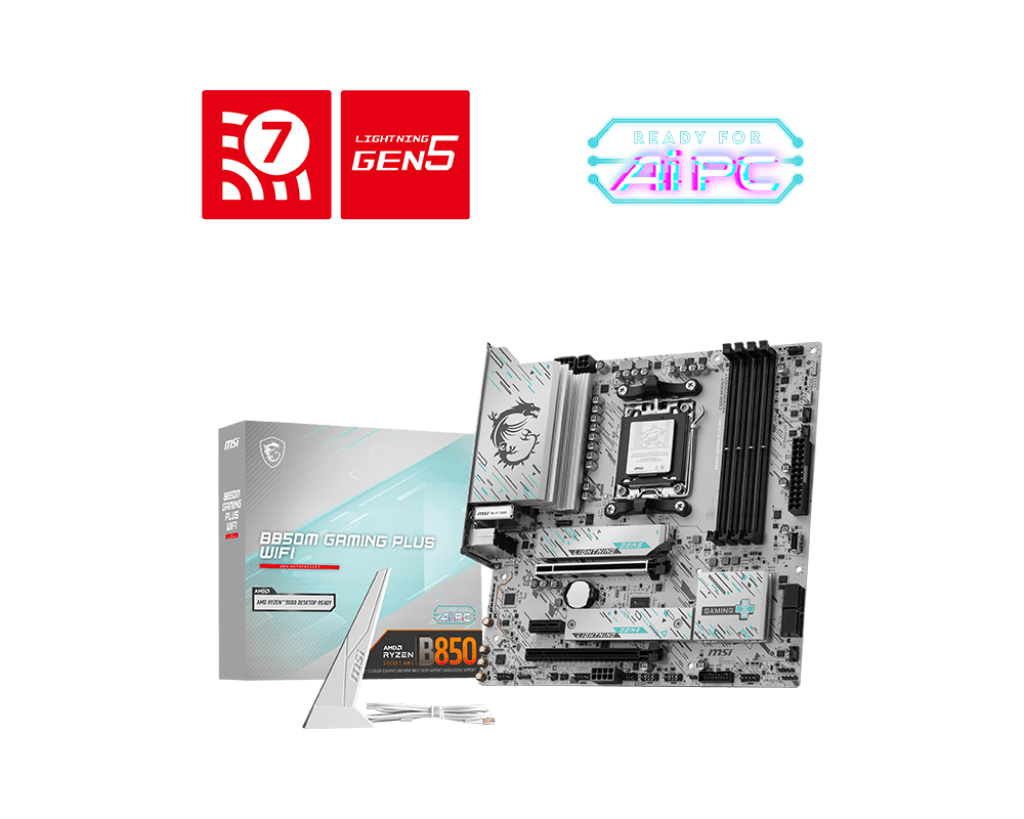

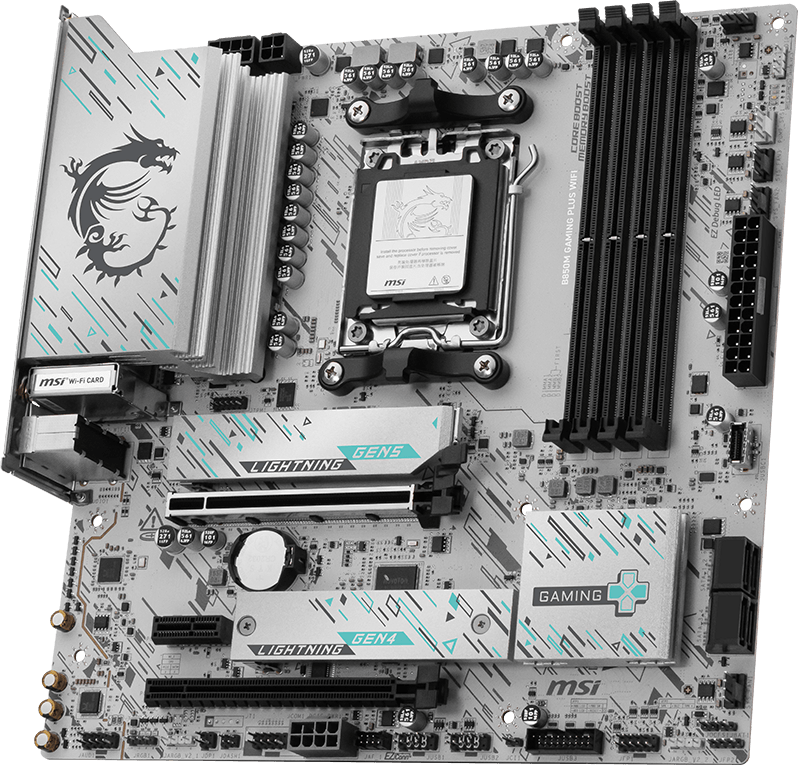

MSI B850M GAMING PLUS WIFI Motherboard

Chipset: AMD B850 CPU: Supports AMD Ryzen(TM) 9000/ 8000/ 7000 Series Desktop Processors: Socket AM5 Memory: 4x DDR5 UDIMM, Maximum Memory Capacity 256GB: Memory Support DDR5 8200 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s: Ryzen(TM) 9000 Series Processors max. overclocking frequency: Onboard Graphics 1x HDMI(TM): Support HDMI(TM) 2.1, maximum resolution of 4K 60Hz*: 1x DisplayPort: Support DisplayPort 1.4, maximum resolution of 4K 60Hz*: : *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. Slot: 2x PCI-E x16 slot: 1x PCI-E x1 slot: PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU): PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset): PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset): : PCI_E1 slot: ? Supports PCIe 5.0 x16 (For Ryzen(TM) 9000/ 7000 Series processors): ? Supports PCIe 4.0 x8 (For Ryzen(TM) 8700/ 8600/ 8400 Series processors): ? Supports PCIe 4.0 x4 (For Ryzen(TM) 8500/ 8300 Series processor) Audio: Realtek(R) ALC897: 7.1-Channel High Definition Audio Storage: 2x M.2: M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices: M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices: 4x SATA 6G: : M2_1 slot: ? Supports up to PCIe 5.0 x4 (For Ryzen(TM) 9000/ 7000 Series processors): ? Supports up to PCIe 4.0 x4 (For Ryzen(TM) 8000 Series processors): : M2_2 slot: ? Supports up to PCIe 4.0 x4 (For Ryzen(TM) 9000/ 8700/ 8600/ 8400/ 7000 Series processors): ? Supports up to PCIe 4.0 x2 (For Ryzen(TM) 8500/ 8300 Series processors): : *Please refer to the manual for M.2 SSD heatsink restrictions. RAID: Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices: Supports RAID 0 and RAID 1 for M.2 NVMe storage devices USB: 4x USB 2.0 (Front): 3x USB 5Gbps Type A (Rear): 2x USB 5Gbps Type A (Front): 3x USB 10Gbps Type A (Rear): 2x USB 10Gbps Type C (Rear): 1x USB 10Gbps Type C (Front) LAN: Realtek(R) 8126 5G LAN Internal IO: 1x Power Connector(ATX_PWR): 2x Power Connector(CPU_PWR): 1x Power Connector(PCIE_PWR 8pin): 1x CPU Fan: 1x Combo Fan (Pump_Sys Fan): 3x System Fan: 2x Front Panel (JFP): 1x Chassis Intrusion (JCI): 1x Front Audio (JAUD): 1x Com Port (JCOM): 1x Tuning Controller connector(JDASH): 3x Addressable V2 RGB LED connector (JARGB_V2): 1x RGB LED connector(JRGB): 1x TPM pin header(Support TPM 2.0): 4x USB 2.0 ports: 2x USB 5Gbps Type A ports: 1x USB 10Gbps Type C ports WIRELESS LAN & BLUETOOTH: Wi-Fi 7 Solution: The Wireless module is pre-installed in the M.2 (Key-E) slot: Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (160MHz) up to 2.9Gbps: Supports 802.11 a/ b/ g/ n/ ac/ ax/ be: : Supports Bluetooth(R) 5.4**, MLO, 4KQAM: : * 6GHz band support may depend on every country?s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.: ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor?s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2. LED FEATURE: 4x EZ Debug LED: 1x EZ Memory Detection LED BACK PANEL PORTS: : Clear CMOS Button: DisplayPort 1.4: USB 10Gbps (Type-A): USB 5Gbps (Type-A): 5G LAN: Wi-Fi / Bluetooth: HD Audio Connectors: Flash BIOS Button: HDMI(TM): USB 10Gbps (Type-A): USB 10Gbps (Type-C): USB 5Gbps (Type-A): OPERATING SYSTEM: Support for Windows(R) 11 64-bit BOX CONTENT: PCB Info: mATX | 243.84mmx243.84mm :
