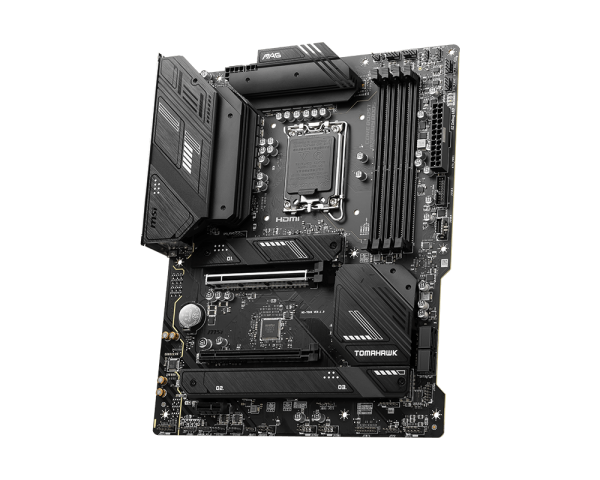

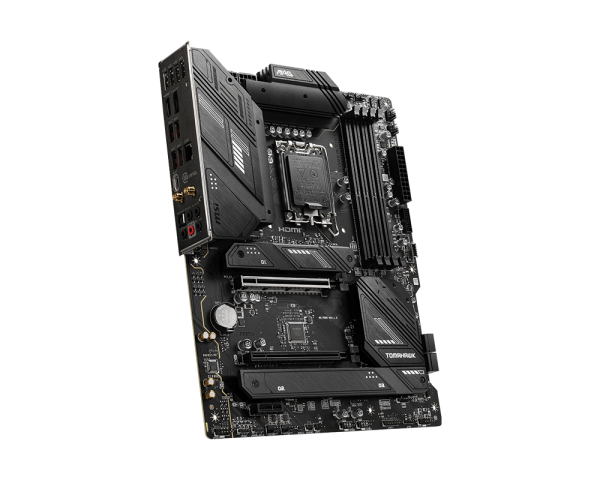

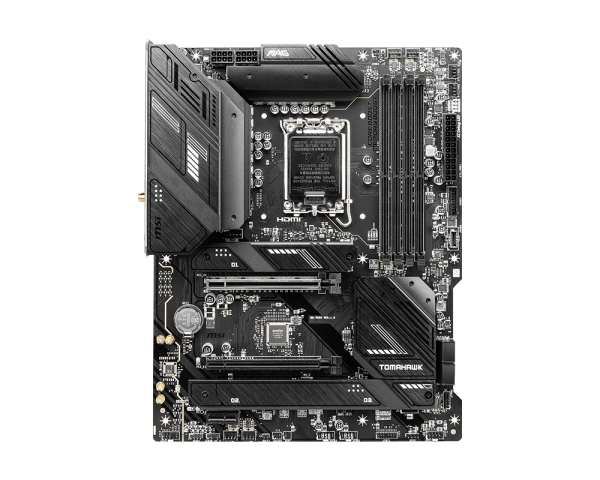

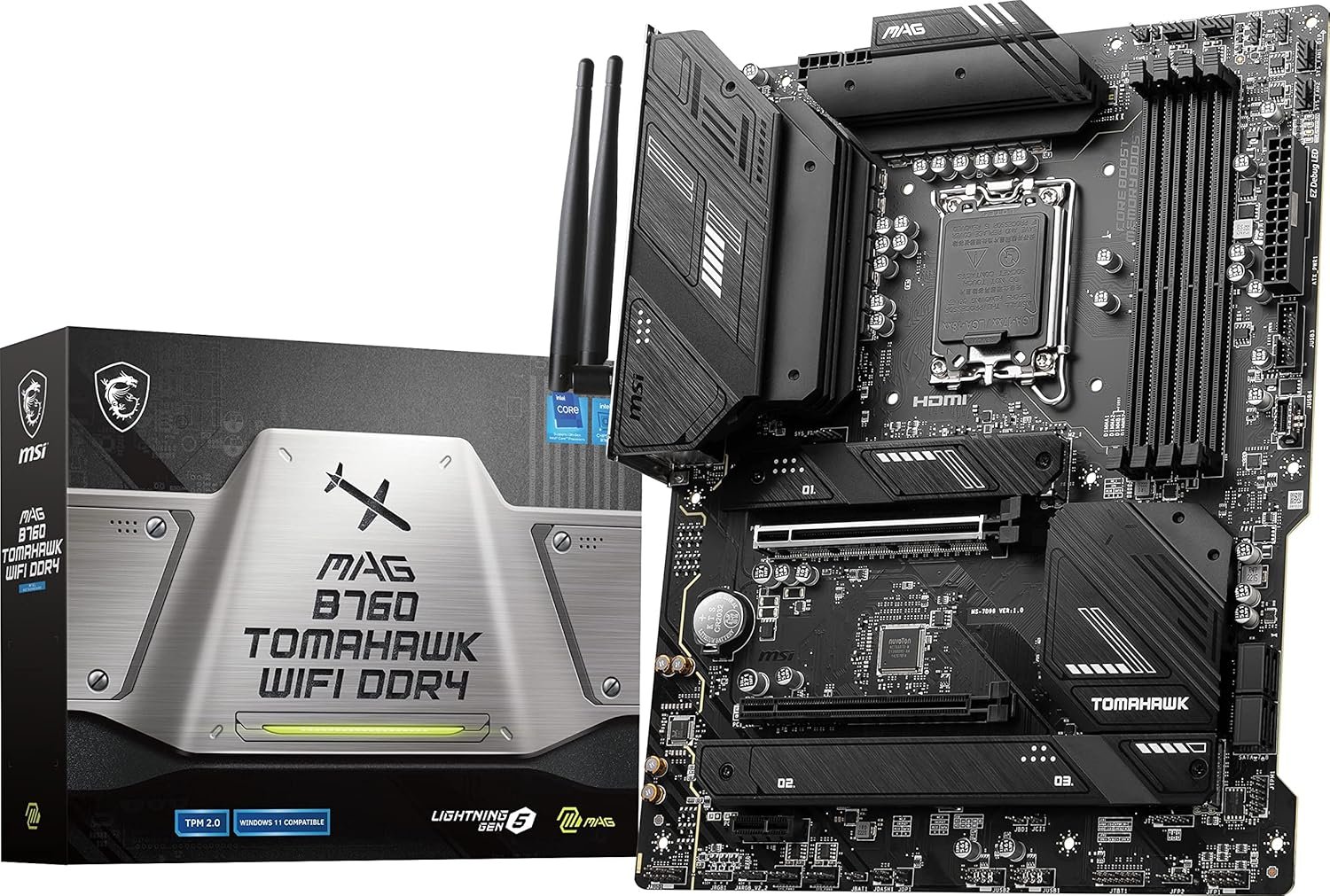

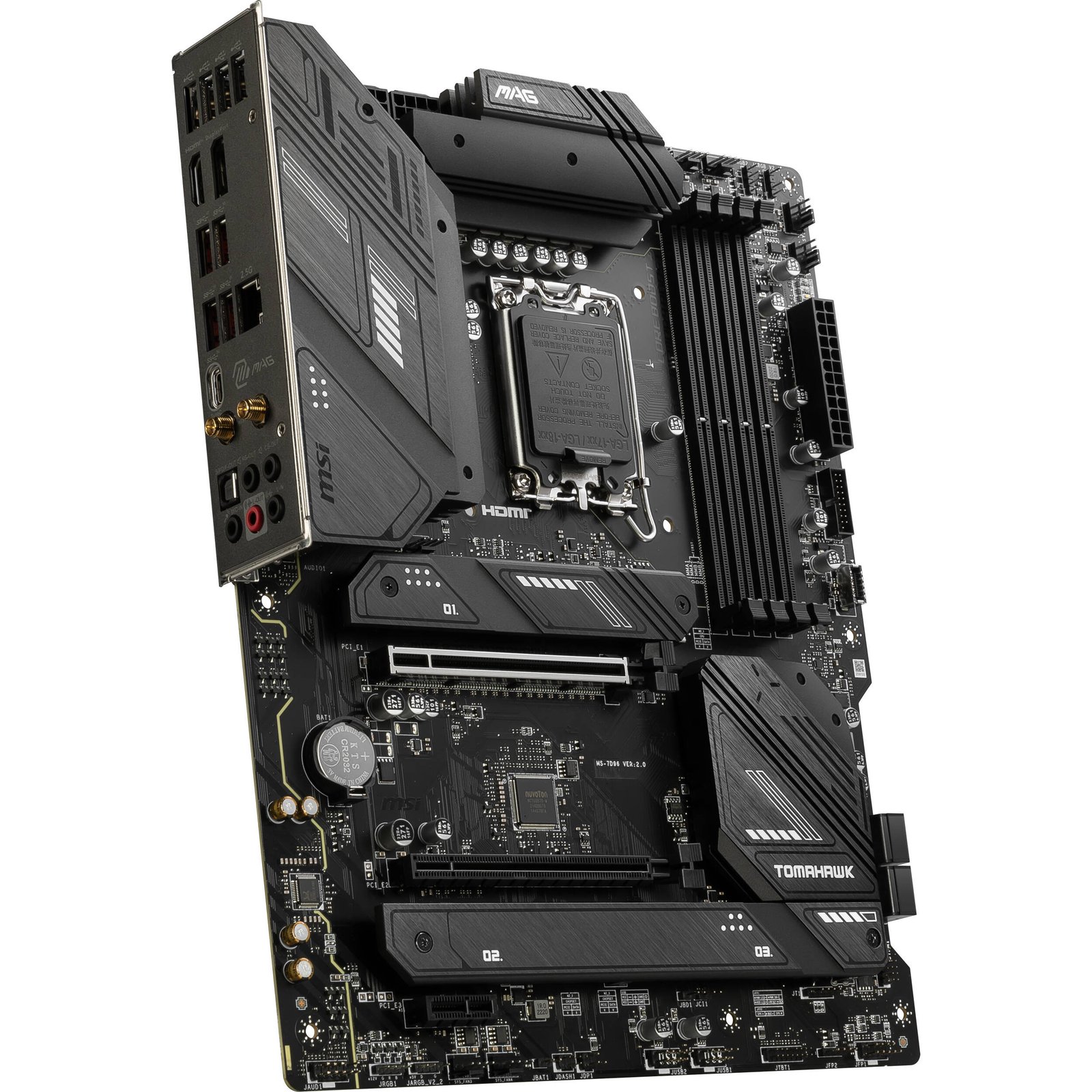

MSI MAG B760 TOMAHAWK WIFI Motherboard

Chipset: INTEL B760

CPU: Support Intel(R) Core(TM) 14th/ 13th/ 12th Gen Processors, Intel(R) Pentium(R) Gold and Celeron(R) Processors: LGA1700

Memory: 4x DDR5, Maximum Memory Capacity 256GB: Memory Support 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz

Onboard Graphics
;
1x HDMI(TM): Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*: 1x DisplayPort: Support DP 1.4, maximum resolution of 8K 60Hz*: *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot: 2x PCI-E x16 slot: Supports x16/x4: 1x PCI-E x1 slot: PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU): PCI_E2 Gen PCIe 3.0 supports up to x4 (From Chipset): PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset)
Audio: Realtek(R) ALC897 Codec: 7.1-Channel High Performance Audio: Supports S/PDIF output

Storage: 3x M.2: M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices: M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices: M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices: 4x SATA 6G

RAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

USB: 4x USB 2.0 (Rear): 4x USB 2.0 (Front): 2x USB 5Gbps Type A (Front): 4x USB 10Gbps Type A (Rear): 1x USB 10Gbps Type C (Front): 1x USB 20Gbps Type C (Rear)
LAN: Realtek(R) 2.5Gbps LAN

Internal IO: 1x Power Connector(ATX_PWR): 2x Power Connector(CPU_PWR): 1x CPU Fan: 1x Pump Fan: 5x System Fan: 2x Front Panel (JFP): 1x Chassis Intrusion (JCI): 1x Front Audio (JAUD): 1x Tuning Controller connector(JDASH): 2x Addressable V2 RGB LED connector (JARGB_V2): 2x RGB LED connector(JRGB): 1x TPM pin header(Support TPM 2.0): 4x USB 2.0 ports: 2x USB 5Gbps Type A ports: 1x USB 10Gbps Type C ports

WIRELESS LAN & BLUETOOTH: Intel(R) Wi-Fi 6E: The Wireless module is pre-installed in the M.2 (Key-E) slot: Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps: Supports 802.11 a/ b/ g/ n/ ac/ ax: : Supports Bluetooth(R) 5.3, FIPS, FISMA: * Wi-Fi 6E 6GHz may depend on every country?s regulations and will be ready in Windows 11.: ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
LED FEATURE: 4x EZ Debug LED

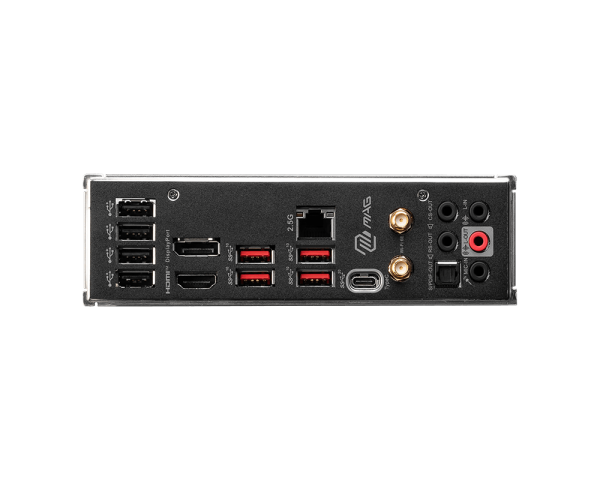

BACK PANEL PORTS: : USB 2.0: DisplayPort 1.4: USB 3.2 Gen 2 10Gbps Type-A: 2.5G LAN Port: Wi-Fi / Bluetooth Antenna: HD Audio Connectors: HDMI(TM) 2.1 Port: USB 3.2 Gen 2×2 20Gbps Type-C: Optical S/PDIF OUT: OPERATING SYSTEM: Support for Windows(R) 11 64-bit, Windows(R) 10 64-bit

BOX CONTENT: PCB Info: ATX: 243.84mmx304.8mm
