MSI MAG X670E TOMAHAWK WIFI Motherboard

Chipset: AMD X670

CPU: Supports AMD Ryzen(TM) 9000/ 8000/ 7000 Series Desktop Processors: Socket AM5

Memory: 4x DDR5, Maximum Memory Capacity 256GB: Memory Support DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz: Max. overclocking frequency: Onboard Graphics
1x HDMI(TM)
Support HDMI(TM) 2.1 FRL, maximum resolution of 4K 120Hz*
1x DisplayPort

Support DP 1.4, maximum resolution of 4K 60Hz*
1x Type-C DisplayPort

Supports DisplayPort 1.4 with HBR3, maximum resolution of 4K 120Hz: *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot: 3x PCI-E x16 slot: ? Supports x16/x4/x2 (For Ryzen(TM) 9000/ 7000 Series processors): ? Supports x8/x4/x2(For Ryzen(TM) 8700/ 8600/ 8400 Series processors): ? Supports x4/x2/x2 (For Ryzen(TM) 8500/ 8300 Series processors): 1x PCI-E x1 slot: PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU): PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset): PCI_E3 Gen PCIe 4.0 supports up to x4 (From CPU): PCI_E4 Gen PCIe 4.0 supports up to x2 (From Chipset): *PCI_E4 & M2_4 share the bandwidth. M2_4 will run at x2 speed when installing device in the PCI_E4 slot.
Audio: Realtek(R) ALC1200 Codec: 7.1-Channel High Definition Audio: Supports S/PDIF output

Storage: 4x M.2: M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices: M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices: M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices: M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices: 4x SATA 6G: *PCI_E4 & M2_4 share the bandwidth. M2_4 will run at x2 speed when installing device in the PCI_E4 slot.
RAID: ?Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices: ?Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices: *RAID 5 configuration is only supported by Ryzen(TM) 9000 series processors.: *RAID 10 for M.2 NVMe storage devices is only supported by Ryzen(TM) 9000/7000 series processors.
USB: 4x USB 2.0 (Front): 4x USB 5Gbps Type A (Rear): 4x USB 5Gbps Type A (Front): 2x USB 10Gbps Type A (Rear): 1x USB 10Gbps Type C (Rear): 1x USB 10Gbps Type C (Front): 1x USB 20Gbps Type C (Rear)
LAN: Realtek(R) RTL8125BG 2.5Gbps LAN

Internal IO: 1x Power Connector(ATX_PWR): 2x Power Connector(CPU_PWR): 1x CPU Fan: 1x Pump Fan: 6x System Fan: 2x Front Panel (JFP): 1x Chassis Intrusion (JCI): 1x Front Audio (JAUD): 1x Tuning Controller connector(JDASH): 2x Addressable V2 RGB LED connector (JARGB_V2): 2x RGB LED connector(JRGB): 1x TPM pin header(Support TPM 2.0): 4x USB 2.0 ports: 4x USB 5Gbps Type A ports: 1x USB 10Gbps Type C ports

WIRELESS LAN & BLUETOOTH: AMD Wi-Fi 6E: The Wireless module is pre-installed in the M.2 (Key-E) slot: Supports MU-MIMO TX/RX: Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands: Supports 802.11 a/ b/ g/ n/ ac/ ax: Supports Bluetooth(R) 5.3**: * Wi-Fi 6E 6GHz may depend on every country?s regulations and will be ready in Windows 11.: ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
LED FEATURE: 4x EZ Debug LED

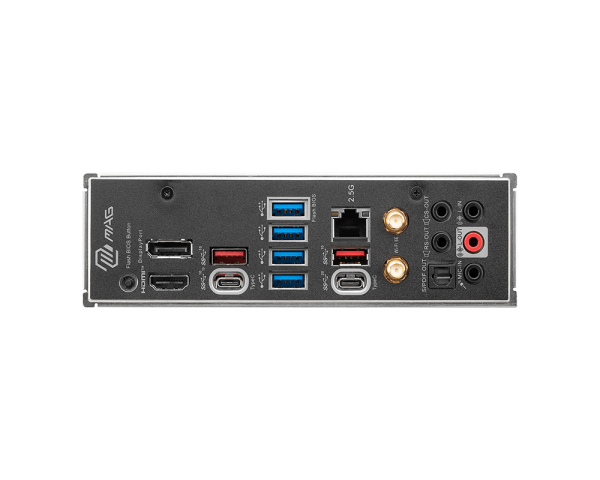

BACK PANEL PORTS: : DisplayPort: USB 3.2 Gen 2 10Gbps (Type-A): USB 3.2 Gen 2 5Gbps (Type-A): 2.5G LAN: Wi-Fi / Bluetooth: Audio Connectors: Flash BIOS Button: HDMI(TM): USB 3.2 Gen 2 10Gbps (Type-C Display port): USB 3.2 Gen 2×2 20Gbps (Type-C): S/PDIF-Out: OPERATING SYSTEM: Support for Windows(R) 11 64-bit, Windows(R) 10 64-bit

BOX CONTENT: PCB Info: ATX | 243.84mmx304.8mm
