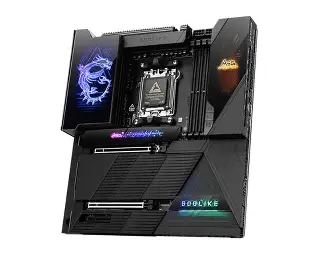

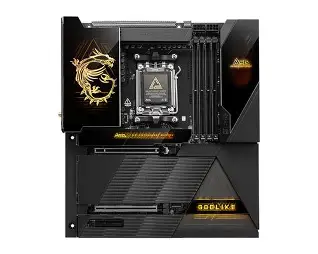

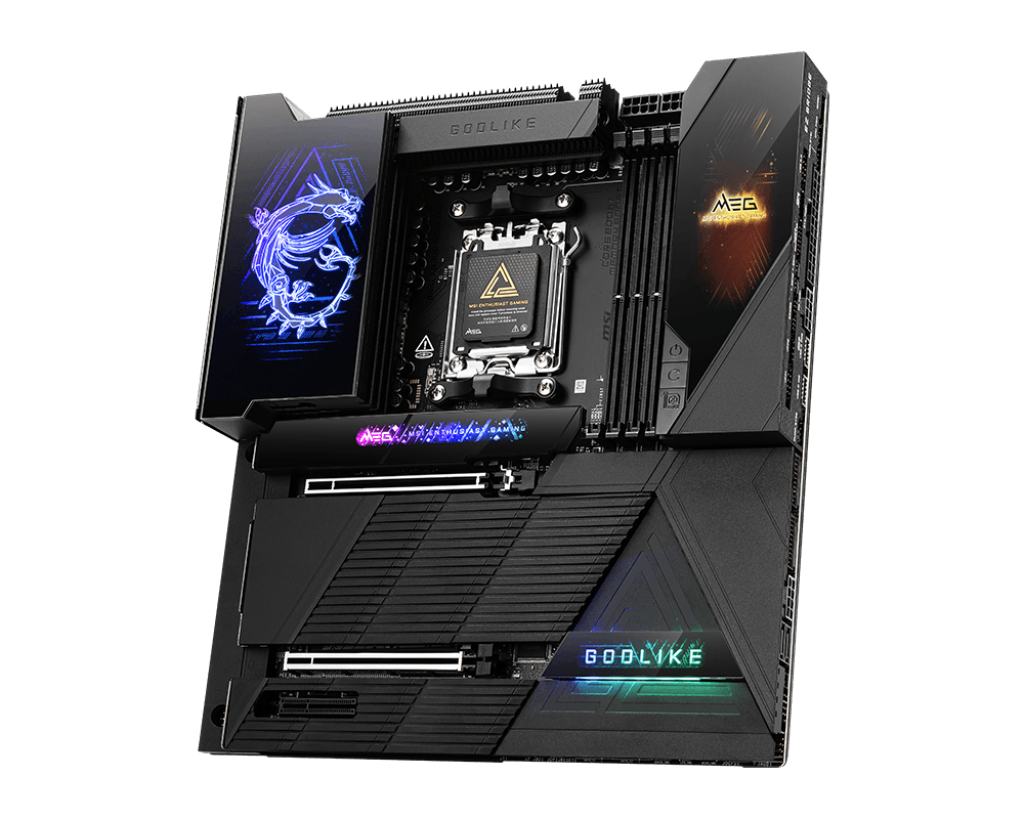

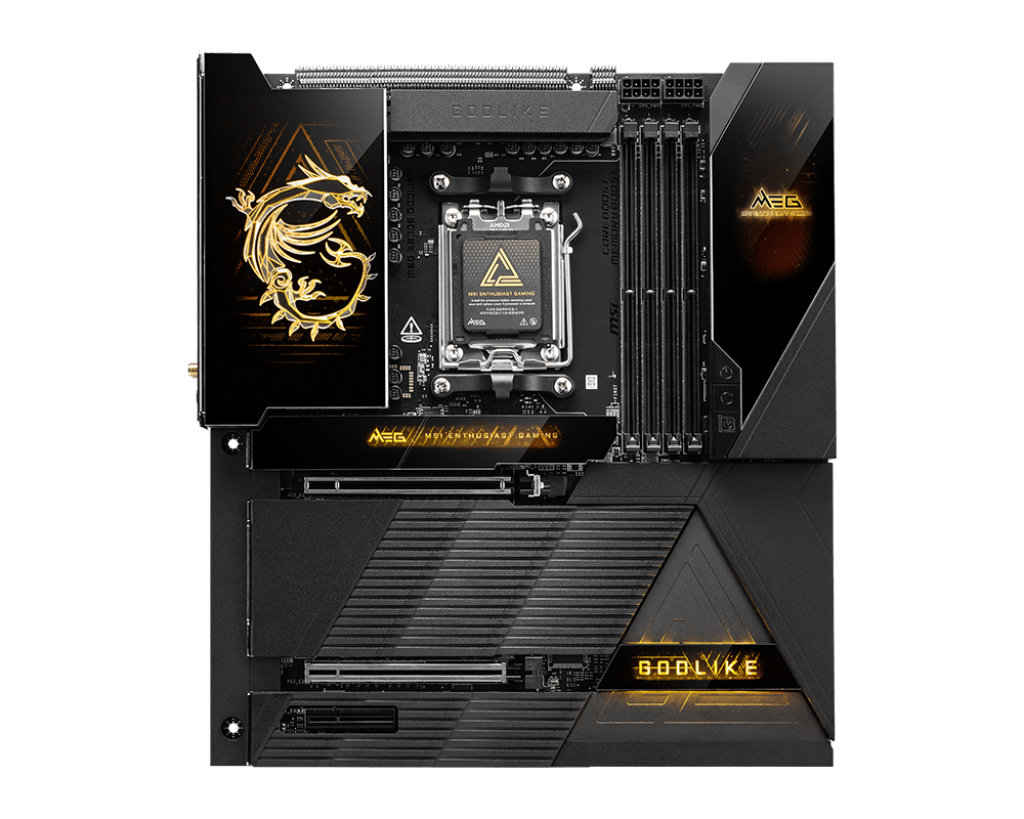

MSI MEG X870E GODLIKE Motherboard

Chipset: AMD X870E CPU: Supports AMD Ryzen(TM) 9000/ 8000/ 7000 Series Desktop Processors: Socket AM5 Memory: 4x DDR5 UDIMM, Maximum Memory Capacity 256GB: Memory Support DDR5 9000 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s: Ryzen(TM) 9000 Series Processors max. overclocking frequency: Onboard Graphics: 2x Type-C DisplayPort: USB4(R) port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K@60Hz*: * Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. Slot: 2x PCI-E x16 slot: 1x PCI-E x4 slot: PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU): PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU): PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset): PCI_E1 & PCI_E2 slots: ? Supports up to PCIe 5.0 x16/ x0 or x8/ x8 (For Ryzen(TM)9000/ 7000 Series processors): ? Supports up to PCIe 4.0 x8/ x0 (For Ryzen(TM) 8700/ 8600/ 8400 Series processors): ? Supports up to PCIe 4.0 x4/ x0 (For Ryzen(TM) 8500/ 8300 Series processors): PCI_E3 slot: ? Supports up to PCIe 4.0 x4: * PCI_E3 slot will run at x2 speed when installing device in the M2_4 slot. You can switch PCI_E3 slot to x4 in the BIOS, but this will disable the M2_4 slot.: Please refer to the PCIe configuration table in the manual for more details. Audio: Realtek(R) ALC4082 Codec + ESS9219Q Combo DAC/HPA: 7.1-Channel USB High-Performance Audio: Supports S/PDIF output: Supports up to 32-Bit/384 kHz playback on front panel Storage: 7x M.2: M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices: M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices: M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices: M.2_4 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices: M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices: 4x SATA 6G: M.2_1 Source (via M.2 XPANDER-Z SLIDER GEN5) supports up to PCIe 5.0 x4 , supports 2280 devices: M.2_2 Source (via M.2 XPANDER-Z SLIDER GEN5) supports up to PCIe 5.0 x4 , supports 2280 devices: : M.2_1:: ? Supports up to PCIe 5.0 x4 (For Ryzen(TM) 9000/ 7000 Series processors): ? Supports up to PCIe 4.0 x4 (For Ryzen(TM) 8000 Series processors): M.2_2:: ? Supports up to PCIe 5.0 x4 (For Ryzen(TM) 9000/ 7000 Series processors): ? Supports up to PCIe 4.0 x4 (For Ryzen(TM) 8700/ 8600/ 8400 Series processors): ? The M2_2 slot will be unavailable when using Ryzen(TM) 8500/ 8300 Series processors.: M2_4:: PCI_E3 slot will run at x2 speed when installing device in the M2_4 slot. You can switch PCI_E3 slot to x4 in the BIOS, but this will disable the M2_4 slot.: : * Supports onboard 5x M.2 slots and additional 2x M.2 slots via M.2 card.: ** Please refer to the manual for M.2 SSD heatsink restrictions. RAID: Supports RAID 0, RAID 1 and Raid 10 for SATA storage devices: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices: : *RAID 5 configuration is only supported by Ryzen(TM) 9000 series processors.: **RAID 10 for M.2 NVMe storage devices is only supported by Ryzen(TM) 9000/7000 series processors. USB: 4x USB 2.0 (Front): 4x USB 5Gbps Type A (Front): 8x USB 10Gbps Type A (Rear): 5x USB 10Gbps Type C (Rear): 1x USB 10Gbps Type C (Front): 1x USB 20Gbps Type C (Front): 2x USB 40Gbps Type C (Rear): : * USB 40Gbps Type-C ports on the back panel and M2_2 slot share PCIe 5.0 x4 bandwidth. Both run at PCIe 5.0 x2 when a device is installed in the M2_2 slot. You can switch M2_2 to PCIe 5.0 x4 in the BIOS, but this will disable the USB 40Gbps Type-C ports. The USB4 host controller supports up to PCIe 4.0 x4.: ** USB 40Gbps Type-C ports on the back panel only run PCIe 4.0 x2 when install Ryzen(TM) 8500/ 8300 Series processors. LAN: 1x Marvell(R) AQC113CS 10Gbps LAN: 1x Realtek(R) 8126 5Gbps LAN Internal IO: 1x Power Connector(ATX_PWR): 2x Power Connector(CPU_PWR): 1x Power Connector(PCIE_PWR 8pin): 1x Front Type-C Quick Charge Connector(PD_PWR1): 1x CPU Fan: 2x Combo Fan (Pump_Sys Fan): 1x EZ Conn-header (JAF_2): 2x Front Panel (JFP): 1x Chassis Intrusion (JCI): 1x Front Audio (JAUD): 2x Thermal Sensor connectors(T_SEN): 1x Tuning Controller connector(JDASH): 1x Addressable V2 RGB LED connector (JARGB_V2): V-check point: 4x USB 2.0 ports: 4x USB 5Gbps Type A ports: 1x USB 10Gbps Type C ports: 1x USB 20Gbps Type C ports WIRELESS LAN & BLUETOOTH: Wi-Fi 7 Solution: The Wireless module is pre-installed in the M.2 (Key-E) slot: Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps: Supports 802.11 a/ b/ g/ n/ ac/ ax/ be: Supports Bluetooth(R) 5.4**, MLO, 4KQA: * 6GHz band support may depend on every country?s regulations and Wi-Fi 7 will be ready in Windows 11 SV3.: ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan. LED FEATURE: 1x Dynamic Dashboard III: 1x EZ Digit Debug LED: 1x EZ LED Control switch BACK PANEL PORTS: : USB 10Gbps (Type-A): Flash BIOS Button: Clear CMOS Button: Smart Button: 10G LAN: 5G LAN: Wi-Fi / Bluetooth: HD Audio Connectors: USB 40Gbps (Type-C): USB 10Gbps (Type-C): USB 10Gbps (Type-A): Optical S/PDIF-Out: OPERATING SYSTEM: Support for Windows(R) 11 64-bit BOX CONTENT: PCB Info: E-ATX: 304.8mmx277mm
