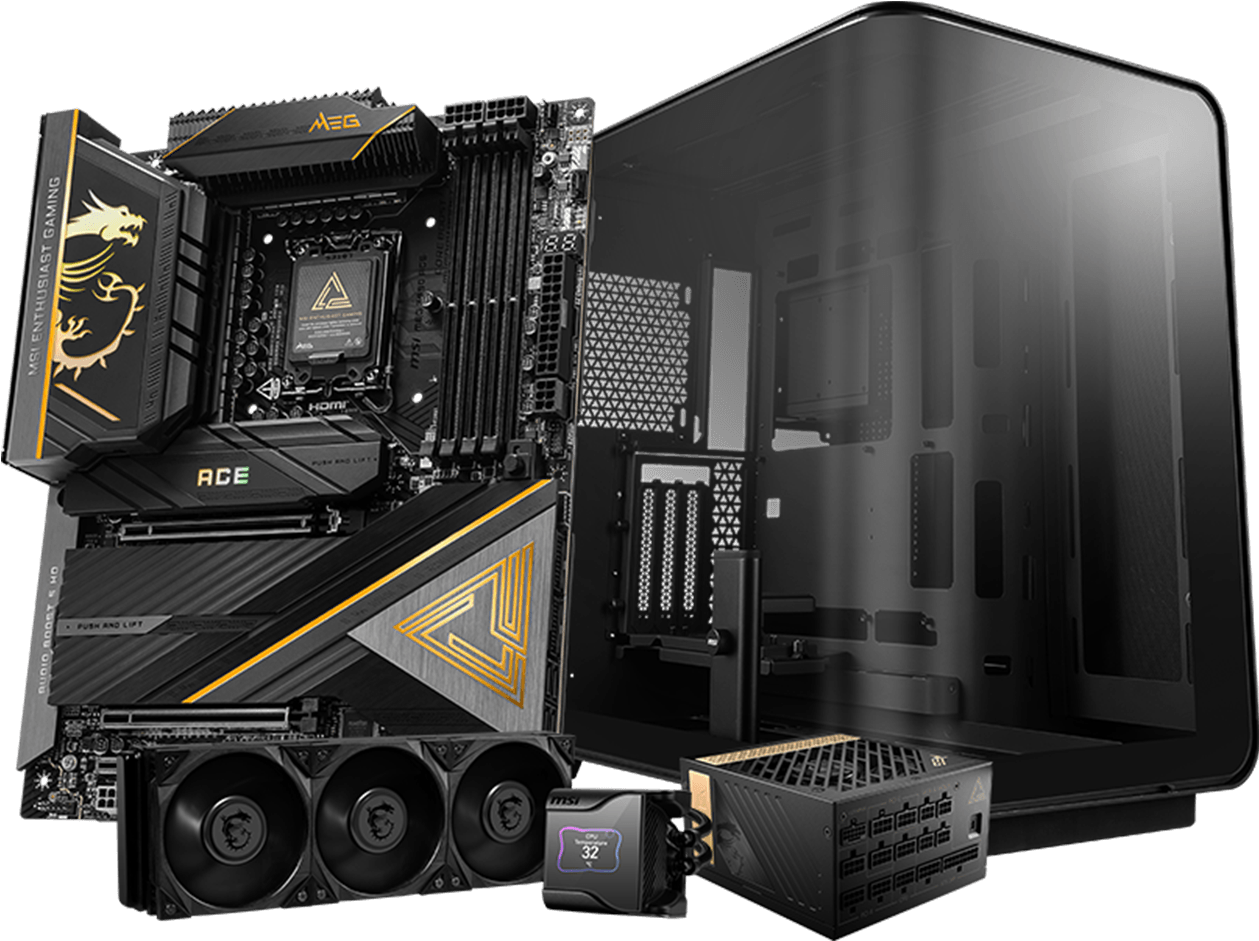

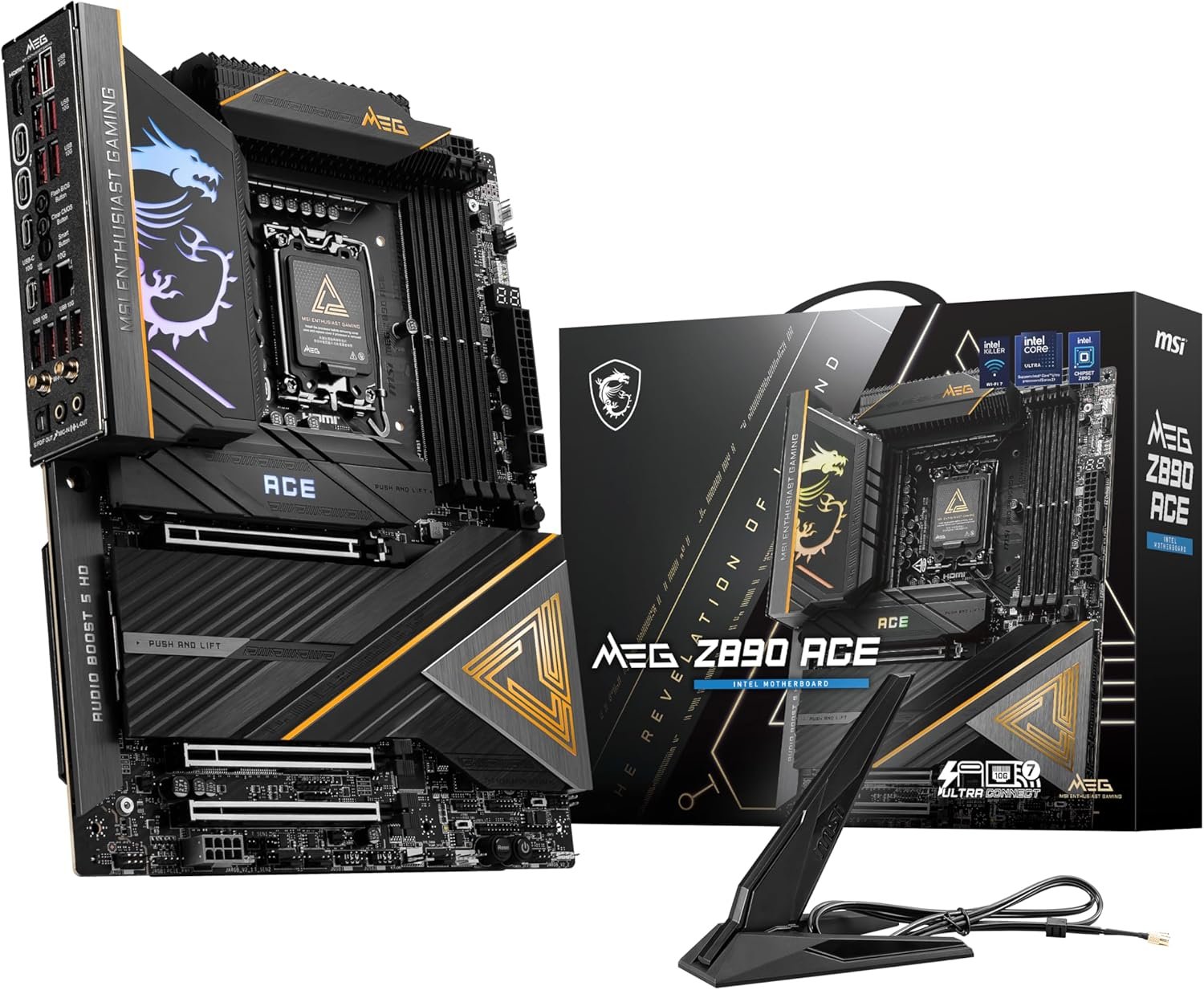

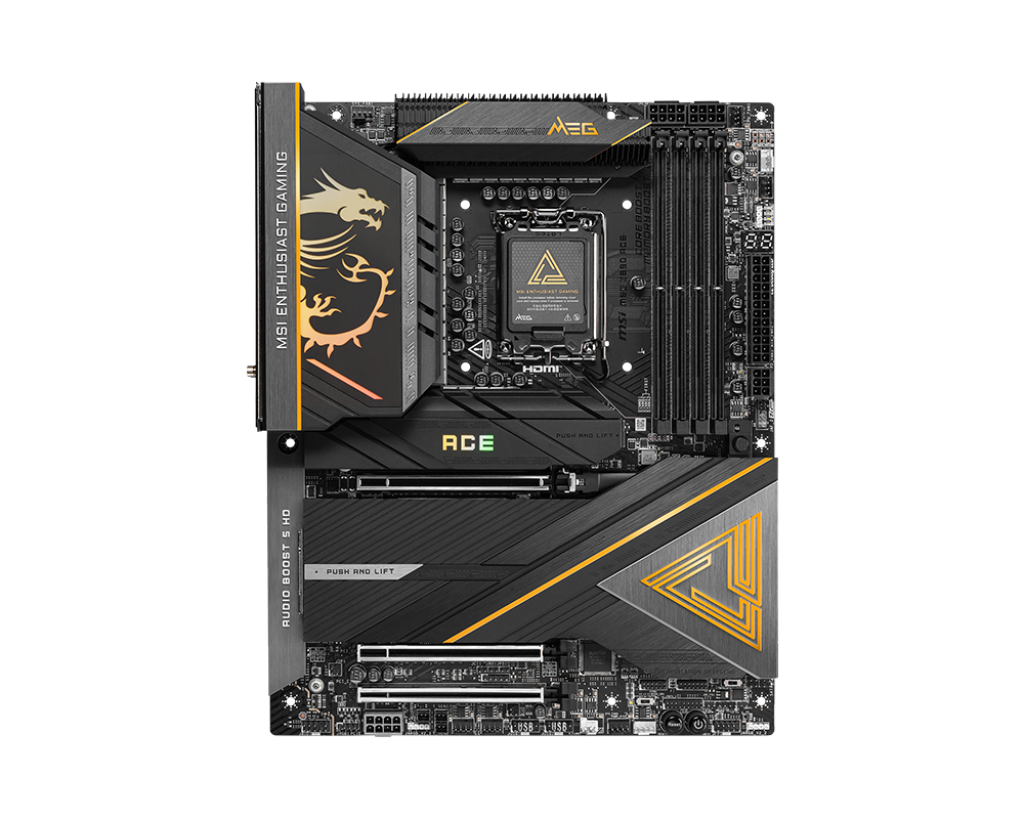

MSI MEG Z890 ACE Motherboard

Chipset: INTEL Z890 CPU: Supports Intel(R) Core(TM) Ultra Processors (Series 2): LGA 1851 Memory: 4x DDR5 UDIMM, Maximum Memory Capacity 256GB: Memory Support 9200 – 6400 (OC) MT/s / 6400 – 4800 (JEDEC) MT/s Onboard Graphics: 1x HDMI(TM): Support HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz*: 2x Type-C DisplayPort: Thunderbolt(TM) 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*: : * Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. Slot: 3x PCI-E x16 slot: PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU): PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU): PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset): : ? PCI_E1 support manual BIOS adjustment to X8+X8/X8+X4+X4: ? PCI_E2 support manual BIOS adjustment to X4+X4: : * PCI_E1 slot will run at x8 speed when PCI_E2 slot installing device.: ** PCI_E1 slot will run at x8 speed and PCI_E2 slot will run at x4 speed when installing PCIe Gen 5 M.2 device in the M2_4 slot. Audio: Realtek(R) ALC4082 Codec + ESS9219Q Combo DAC/HPA: 7.1-Channel USB High-Performance Audio: Supports S/PDIF output: Supports up to 32-Bit/384 kHz playback on front panel Storage: 5x M.2: M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices: M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices: M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices: M.2_4 Source (From CPU+Chipset) supports up to PCIe 5.0 x4 + PCIe 4.0 x4 , supports 22110/2280/2260 devices: M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 22110/2280 devices: 4x SATA 6G: : * M2_4 default from chipset, can support PCIe 5.0 x4 (From CPU) by manual BIOS adjustment.: ** M2_4 and M2_5 cannot support 22110 Device at the same time.: *** Please refer to the manual for M.2 SSD heatsink restrictions. RAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices Onboard Thunderbolt: 2x Thunderbolt4 ports (Rear): Support up to 40Gbps transfer rate with Thunderbolt devices: Support up to 20Gbps transfer rate with USB4 devices: Support up to 10Gbps transfer rate with USB 3.2 devices: Support up to 5V/3A,15W power charging: Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices: Support up to 8K display USB: 4x USB 2.0 (Front): 4x USB 5Gbps Type A (Front): 11x USB 10Gbps Type A (Rear): 2x USB 10Gbps Type C (Rear): 1x USB 20Gbps Type C (Front): * To achieve USB PD 60W fast charging for JUSBC1, the PD_PWR1 connector needs to be connected to the power supply unit. LAN: 1x Marvell(R) AQC113CS 10Gbps LAN Internal IO: 1x Power Connector(ATX_PWR): 2x Power Connector(CPU_PWR): 1x Power Connector(PCIE_PWR 8pin): 1x Front Type-C Quick Charge Connector(PD_PWR1): 1x CPU Fan: 2x Combo Fan (Pump_Sys Fan): 5x System Fan: 1x EZ Conn-header (JAF_2): 2x Front Panel (JFP): 1x Chassis Intrusion (JCI): 1x Water Flow connector: 1x Slow Mode Booting Jumper(JSLOW): 1x Front Audio (JAUD): 2x Thermal Sensor connectors(T_SEN): 1x Tuning Controller connector(JDASH): 3x Addressable V2 RGB LED connector (JARGB_V2): 1x RGB LED connector(JRGB): 1x TPM pin header(Support TPM 2.0): V-check point: 4x USB 2.0 ports: 4x USB 5Gbps Type A ports: 1x USB 20Gbps Type C ports WIRELESS LAN & BLUETOOTH: Intel(R) Killer(TM) BE1750x Wi-Fi 7: The Wireless module is pre-installed in the M.2 (Key-E) slot: Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps: Supports 802.11 a/ b/ g/ n/ ac/ ax/ be: : Supports Bluetooth(R) 5.4**, MLO, 4KQAM: : * 6GHz band support may depend on every country?s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.: ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor?s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2. LED FEATURE: 4x EZ Debug LED: 1x EZ Digit Debug LED: 1x EZ LED Control switch BACK PANEL PORTS: : USB 10Gbps (Type-A): Flash BIOS Button: Clear CMOS Button: Smart Button: 10G LAN: Wi-Fi / Bluetooth: HD Audio Connectors: HDMI(TM) 2.1 Port Thunderbolt(TM) 4 40Gbps (Type-C) USB 10Gbps (Type-C) USB 10Gbps (Type-A) Optical S/PDIF-Out OPERATING SYSTEM Support for Windows(R) 11 64-bit BOX CONTENT PCB Info ATX 243.84mmx304.8mm
