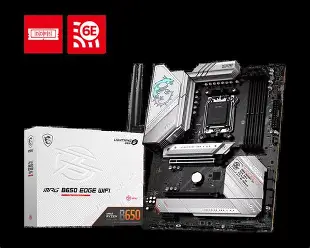

MSI MPG B650 EDGE WIFI Motherboard

Original price was: ₹49,990.00.Current price is: ₹26,990.00.

✅ In Stock
🚚 Ships in 24–48 hours

BE AHEAD, POP YOUR STYLE The MPG series brings out fashionable products by showing extremely unique styles and expressing a conceited attitude towards the challenge of the gaming world. With extraordinary performance and style, the MPG series defines the future of gaming fashion.

Build Includes

PRODUCT OVERVIEW

Chipset
AMD B650
CPU
Supports AMD Ryzen(TM) 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5
Memory
4x DDR5, Maximum Memory Capacity 256GB
Memory Support DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency: Onboard Graphics
1x HDMI(TM)
Support HDMI(TM) 2.1 HDR, maximum resolution of 4K 60Hz
1x DisplayPort
Support DP 1.4 HBR3, maximum resolution of 8K 60Hz
Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot
2x PCI-E x16 slot
? Supports x16/x2 (For Ryzen(TM) 9000/ 7000 Series processors)
? Supports x8/x2 (For Ryzen(TM) 8700/ 8600/ 8400 Series processors)
? Supports x4/x2 (For Ryzen(TM) 8500/ 8300 Series processors)
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x2 (From Chipset)
PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
Audio
Realtek(R) ALC4080 Codec
7.1-Channel USB High Performance Audio
Supports up to 32-Bit/384 kHz playback on front panel
Storage
3x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
6x SATA 6G
? The M2_2 slot will be unavailable when using Ryzen(TM) 8500/ 8300 Series processor
RAID
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
SATA_A1~A2 do not support RAID function.
USB
2x USB 2.0 (Rear)
4x USB 2.0 (Front)
4x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
3x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Front)
1x USB 20Gbps Type C (Rear)
LAN
Realtek(R) RTL8125BG 2.5Gbps LAN
Internal IO
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
6x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
WIRELESS LAN & BLUETOOTH
AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth(R) 5.3
Wi-Fi 6E 6GHz may depend on every country?s regulations and will be ready in Windows 11.
Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
LED FEATURE
4x EZ Debug LED
1x EZ LED Control switch
BACK PANEL PORTS
Display Port
2.5G LAN
USB 2.0 (Type-A)
Wi-Fi / Bluetooth
Audio Connectors
Flash BIOS Button
HDMI(TM)
USB 10Gbps (Type-A)
USB 20Gbps (Type-C)
USB 5Gbps (Type-A)
Optical S/PDIF Out
OPERATING SYSTEM
Support for Windows(R) 11 64-bit, Windows(R) 10 64-bit
BOX CONTENT
PCB Info
ATX | 243.84mmx304.8mm
