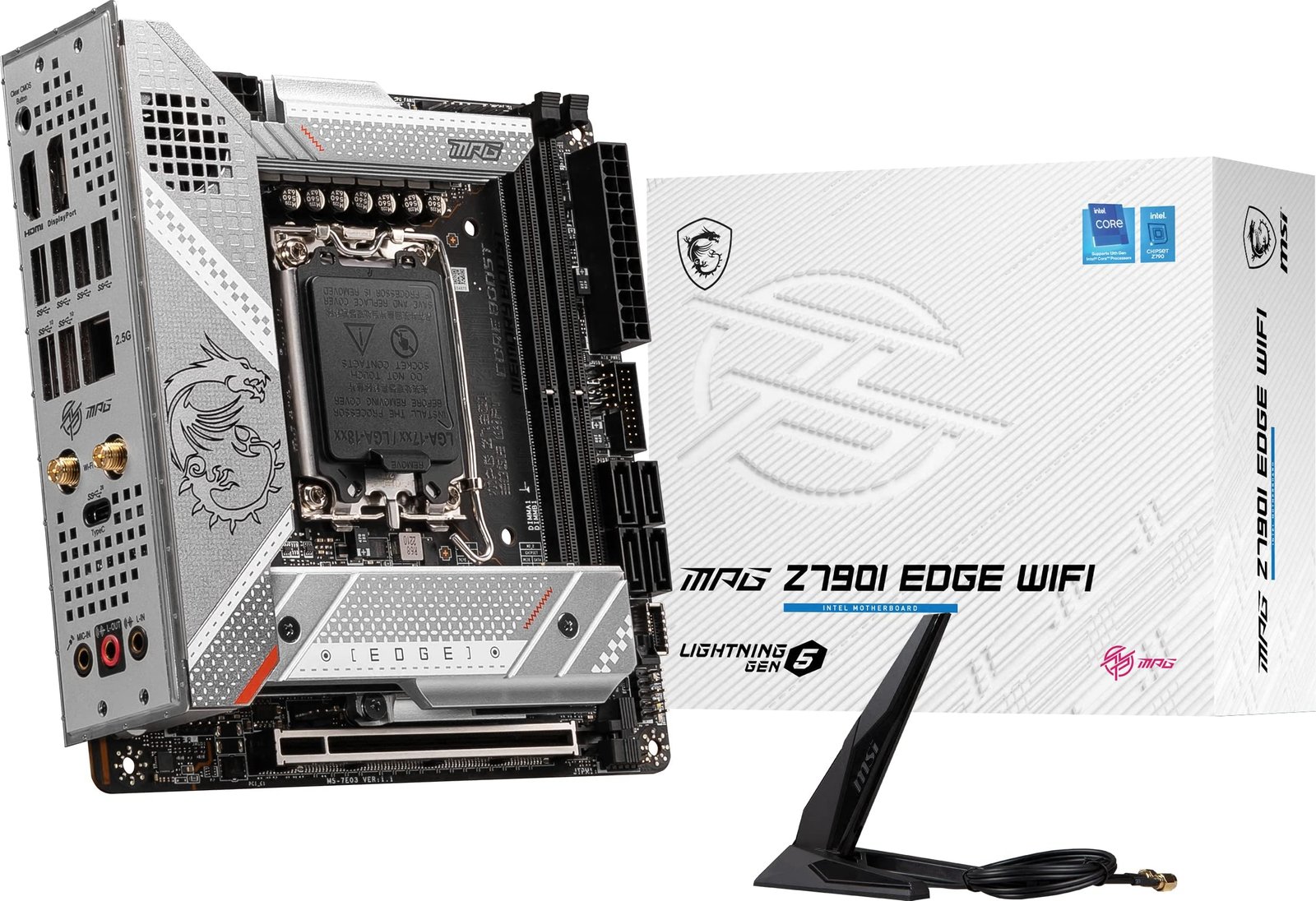

MSI MPG Z790I EDGE WIFI Motherboard

Chipset: INTEL Z790 CPU: Support Intel(R) Core(TM) 14th/ 13th/ 12th Gen Processors, Intel(R) Pentium(R) Gold and Celeron(R) Processors: LGA 1700 Memory: 2x DDR5, Maximum Memory Capacity 128GB: Memory Support 8000+(OC)/ 7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Onboard Graphics: 1x HDMI(TM): Support HDMI(TM) 2.1 with HDR, maximum resolution of 4K 60Hz* ; 1x DisplayPort: Support DP 1.4, maximum resolution of 4K 60Hz*: *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. Slot: 1x PCI-E x16 slot: PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) Audio: Realtek(R) ALC4080 Codec: 7.1-Channel USB High Performance Audio: Supports up to 32-Bit/384 kHz playback on front panel Storage: 1x M.2: M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices: M.2_2 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280 devices: M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 devices: 4x SATA 6G RAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices: Supports RAID 0, RAID 1, RAID 5 for M.2 NVMe storage devices USB: 2x USB 2.0 (Front): 4x USB 5Gbps Type A (Rear): 2x USB 5Gbps Type A (Front): 2x USB 10Gbps Type A (Rear): 1x USB 20Gbps Type C (Rear): 1x USB 20Gbps Type C (Front) LAN: Intel(R) 2.5Gbps LAN Internal IO: 1x Power Connector(ATX_PWR): 1x Power Connector(CPU_PWR): 1x CPU Fan: 1x Pump Fan: 1x System Fan: 1x Front Panel (JFP): 1x Chassis Intrusion (JCI): 1x Front Audio (JAUD): 1x Addressable V2 RGB LED connector (JARGB_V2): 1x TPM pin header(Support TPM 2.0): 2x USB 2.0 ports: 2x USB 5Gbps Type A ports: 1x USB 20Gbps Type C ports WIRELESS LAN & BLUETOOTH: Intel(R) Wi-Fi 6E: The Wireless module is pre-installed in the M.2 (Key-E) slot: Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps: Supports 802.11 a/ b/ g/ n/ ac/ ax: : Supports Bluetooth(R) 5.3**, FIPS, FISMA: : * Wi-Fi 6E 6GHz may depend on every country?s regulations and will be ready in Windows 11.: ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. LED FEATURE: 4x EZ Debug LED BACK PANEL PORTS: : Display Port: 2.5G LAN: USB 20Gbps (Type-C): Audio Connectors: Clear CMOS: HDMI(TM): USB 5Gbps (Type-A): USB 10Gbps (Type-A): Wi-Fi / Bluetooth: OPERATING SYSTEM: Support for Windows(R) 11 64-bit, Windows(R) 10 64-bit BOX CONTENT: PCB Info: Mini-ITX: 170mmx170mm
