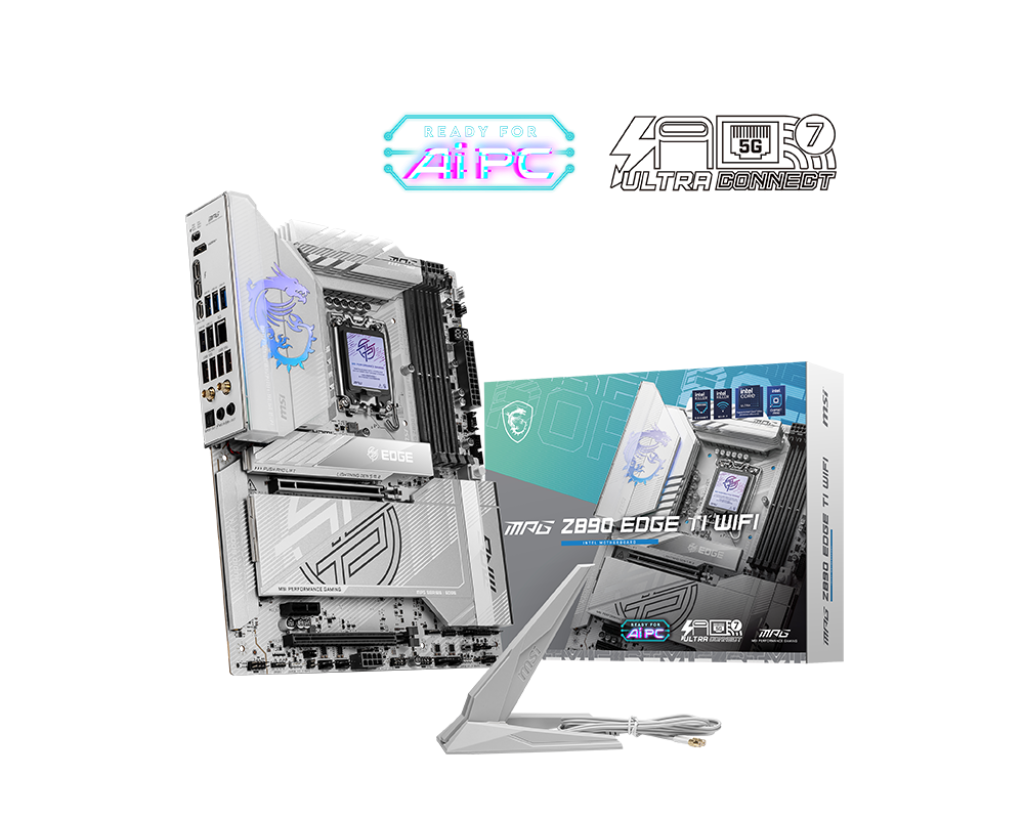

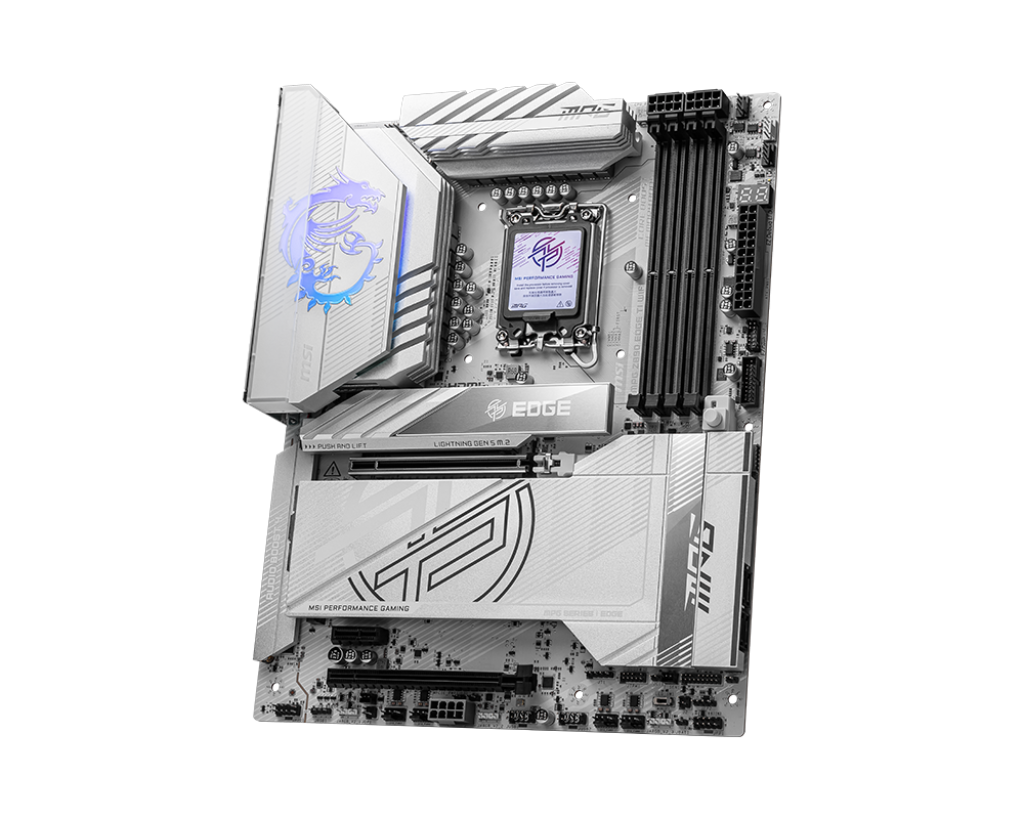

MSI MPG Z890 EDGE TI WIFI Motherboard

Chipset: INTEL Z890 CPU: Supports Intel(R) Core(TM) Ultra Processors (Series 2): LGA 1851 Memory: 4x DDR5 UDIMM, Maximum Memory Capacity 256GB: Memory Support 9200 – 6400 (OC) MT/s / 6400 – 4800 (JEDEC) MT/s Onboard Graphics: 1x HDMI(TM): Supports HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz*: 2x Type-C DisplayPort: ThundeboltTM 4 ports, , supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*: : *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. Slot: 2x PCI-E x16 slot: 1x PCI-E x1 slot: PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU): PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset): PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset): : ? PCI_E1 support manual BIOS adjustment to X8+X8 / X8+X4+X4 Audio: Realtek(R) ALC1220P Codec: 7.1-Channel High Definition Audio: Supports S/PDIF output Storage: 5x M.2: M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices: M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices: M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices: M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices: M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 22110/2280/2260 devices: 4x SATA 6G: : *Please refer to the manual for M.2 SSD heatsink restrictions. RAID: ?Supports RAID 0, RAID 1, RAID 5 and Raid 10 for SATA storage devices: ?Supports RAID 0, RAID 1, RAID 5 and Raid 10 for M.2 NVMe storage devices Onboard Thunderbolt: 2x Thunderbolt4 ports (Rear): Supports up to 40Gbps transfer rate with Thunderbolt devices: Supports up to 20Gbps transfer rate with USB4 devices: Supports up to 10Gbps transfer rate with USB 3.2 devices: Supports up to 5V/3A,15W power charging: Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices: Supports up to 8K display USB: 1x USB 2.0 (Rear): 4x USB 2.0 (Front): 4x USB 5Gbps Type A (Rear): 2x USB 5Gbps Type A (Front): 4x USB 10Gbps Type A (Rear): 1x USB 10Gbps Type C (Rear): 1x USB 20Gbps Type C (Front): *USB 20Gbps Type-C (Front) support USB PD 27W fast charging for JUSBC1 LAN: 1x Intel(R) Killer(TM) E5000B 5G LAN Internal IO: 1x Thunderbolt5 card connector(JTBT5, support RTD3): 1x Power Connector(ATX_PWR): 2x Power Connector(CPU_PWR): 1x Power Connector(PCIE_PWR 8pin): 1x CPU Fan: 1x Combo Fan (Pump_Sys Fan): 6x System Fan: 1x EZ Conn-header (JAF_2): 2x Front Panel (JFP): 1x Chassis Intrusion (JCI): 1x Front Audio (JAUD): 1x Thermal Sensor connectors(T_SEN): 3x Addressable V2 RGB LED connector (JARGB_V2): 1x RGB LED connector(JRGB): 1x TPM pin header(Support TPM 2.0): 4x USB 2.0 ports: 2x USB 5Gbps Type A ports: 1x USB 20Gbps Type C ports WIRELESS LAN & BLUETOOTH: Intel(R) Killer(TM) BE1750x Wi-Fi 7: The Wireless module is pre-installed in the M.2 (Key-E) slot: Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
