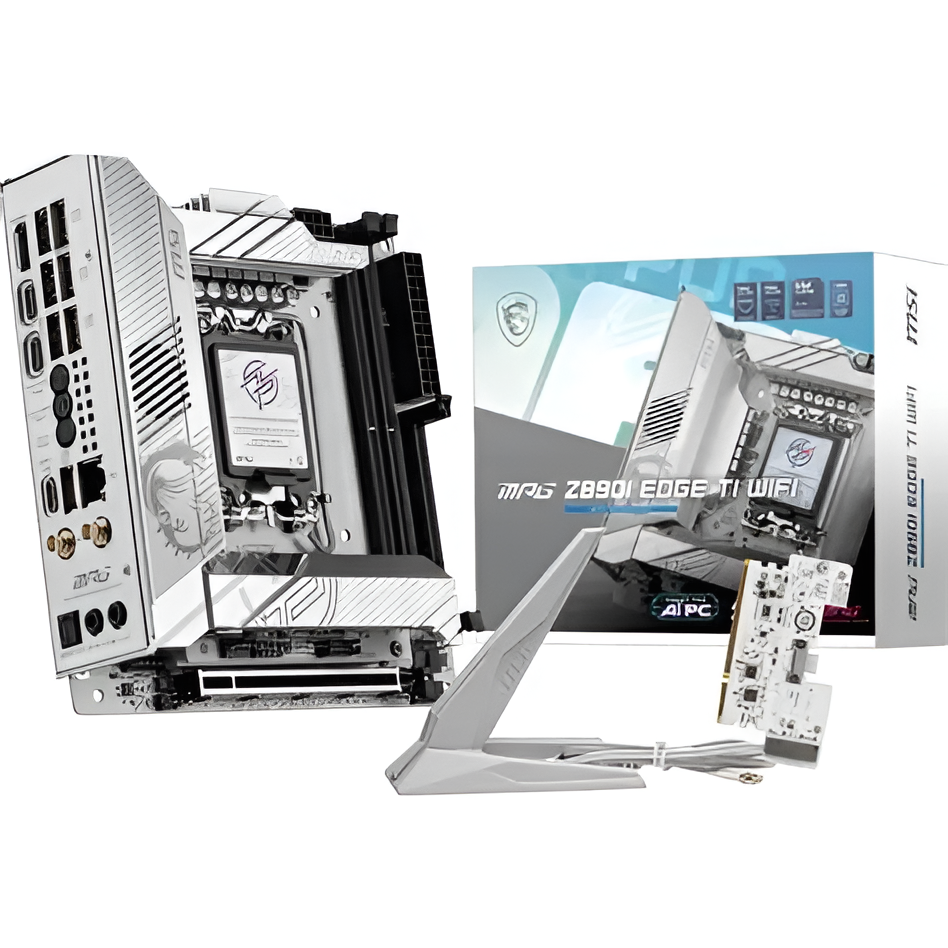

MSI MPG Z890I EDGE TI WIFI Motherboard

Chipset: INTEL Z890 CPU: Supports Intel(R) Core(TM) Ultra Processors (Series 2): LGA 1851 Memory: 2x DDR5, Maximum Memory Capacity 128GB: Memory Support 8600 – 6400 (OC) MT/s / 6400 – 4800 (JEDEC) MT/s Onboard Graphics: 1x HDMI(TM): Supports HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz*: 2x Type-C DisplayPort: ThundeboltTM 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*: : *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. Slot: 1x PCI-E x16 slot: PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU): : ? PCI_E1 support manual BIOS adjustment to X8+X8 / X8+X4+X4 Audio: Realtek(R) ALC4080 Codec: 7.1-Channel USB High Performance Audio: Supports S/PDIF output Storage: 4x M.2: M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280 devices: M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices: M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280 devices: M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 devices: 2x SATA 6G: : ?M.2_4 & 2x SATA are supported by 5-in-1 XPANDER: ?Please refer to the manual for M.2 SSD heatsink restrictions. RAID: ?Supports RAID 0, RAID 1 and RAID 5 for SATA storage devices: ?Supports RAID 0, RAID 1, Raid 5 and RAID 10 for M.2 NVMe storage devices Onboard Thunderbolt: 2x Thunderbolt4 ports (Rear): Supports up to 40Gbps transfer rate with Thunderbolt devices: Supports up to 20Gbps transfer rate with USB4 devices: Supports up to 10Gbps transfer rate with USB 3.2 devices: Supports up to 5V/3A,15W power charging: Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices: Supports up to 8K display USB: 2x USB 2.0 (Front): 2x USB 5Gbps Type A (Front): 7x USB 10Gbps Type A (Rear): 1x USB 10Gbps Type C (Rear): 1x USB 20Gbps Type C (Front): *2x 5Gbps Type-A & 1x 20Gbps Type-C are supported by 5-in-1 XPANDER: *USB 20Gbps Type-C (Front) support USB PD 27W fast charging for JUSBC1 LAN: 1x Intel(R) Killer(TM) E5000B 5G LAN Internal IO: 1x Power Connector(ATX_PWR): 1x Power Connector(CPU_PWR): 1x CPU Fan: 1x Combo Fan (Pump_Sys Fan): 1x System Fan: 1x EZ Conn-header (JAF_2): 2x Front Panel (JFP): 1x Chassis Intrusion (JCI): 1x Front Audio (JAUD): 1x Thermal Sensor connectors(T_SEN): 1x Addressable V2 RGB LED connector (JARGB_V2): 1x TPM pin header(Support TPM 2.0): 2x USB 2.0 ports: 2x USB 5Gbps Type A ports: 1x USB 20Gbps Type C ports WIRELESS LAN & BLUETOOTH: Intel(R) Killer(TM) BE1750x Wi-Fi 7: The Wireless module is pre-installed in the M.2 (Key-E) slot: Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps: Supports 802.11 a/ b/ g/ n/ ac/ ax/ be: : Supports Bluetooth(R) 5.4**, MLO, 4KQAM: : * 6GHz band support may depend on every country?s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.: ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor?s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2. LED FEATURE: 4x EZ Debug LED: BACK PANEL PORTS: : USB 10Gbps Type-A: Flash BIOS Button: Clear CMOS Button: Smart Button: 5G LAN: Wi-Fi / Bluetooth: Audio Connectors: HDMI(TM): Thunderbolt 4: USB 10Gbps Type-C: USB 10Gbps Type-A: Optical S/PDIF Out: OPERATING SYSTEM: Support for Windows(R) 11 64-bit BOX CONTENT: PCB Info: Mini-ITX: 170mmx170mm
