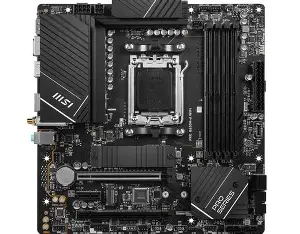

MSI PRO B650-A WIFI Motherboard

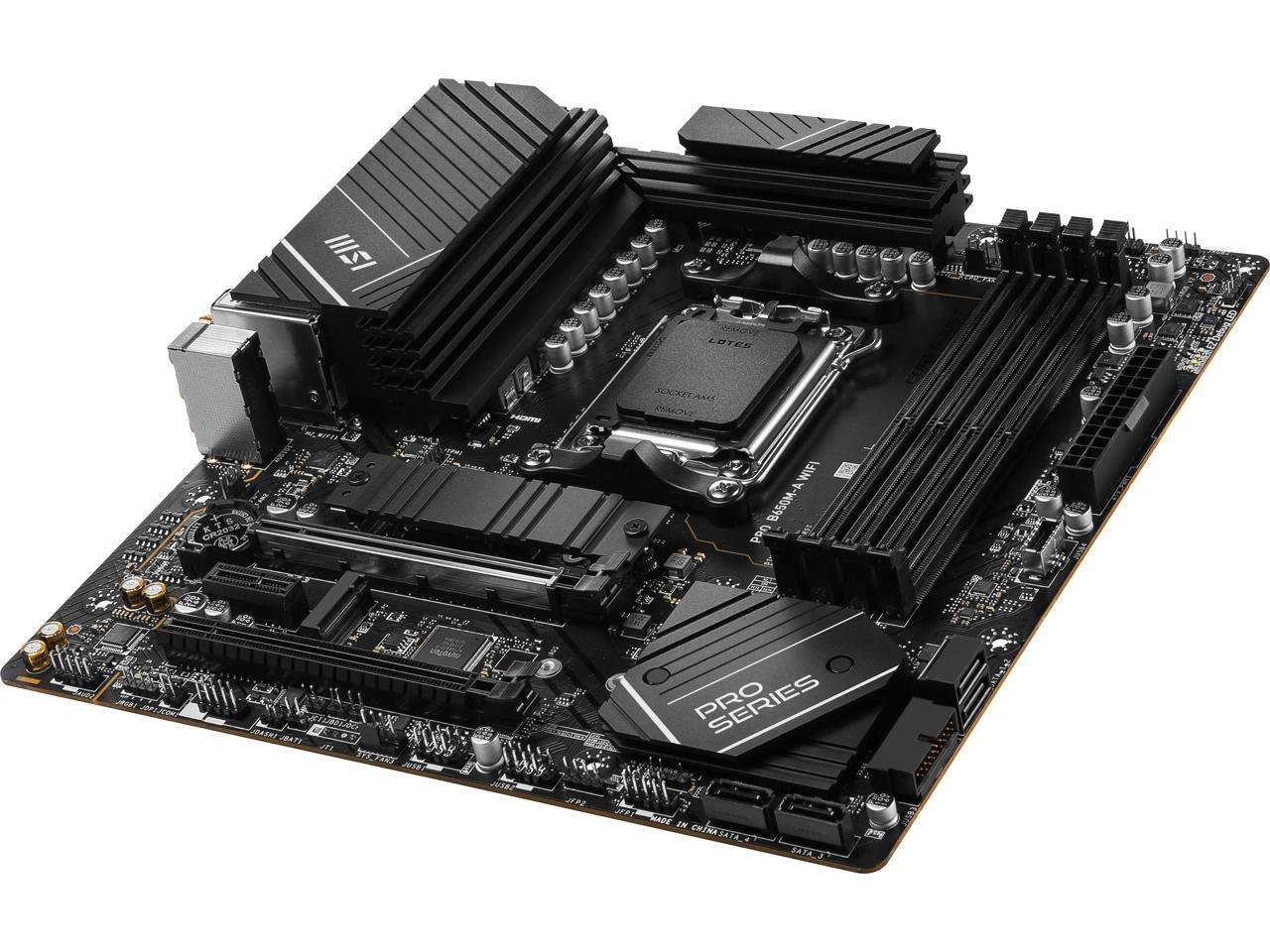

MSI PRO B650-A WIFI Motherboard - Image 2

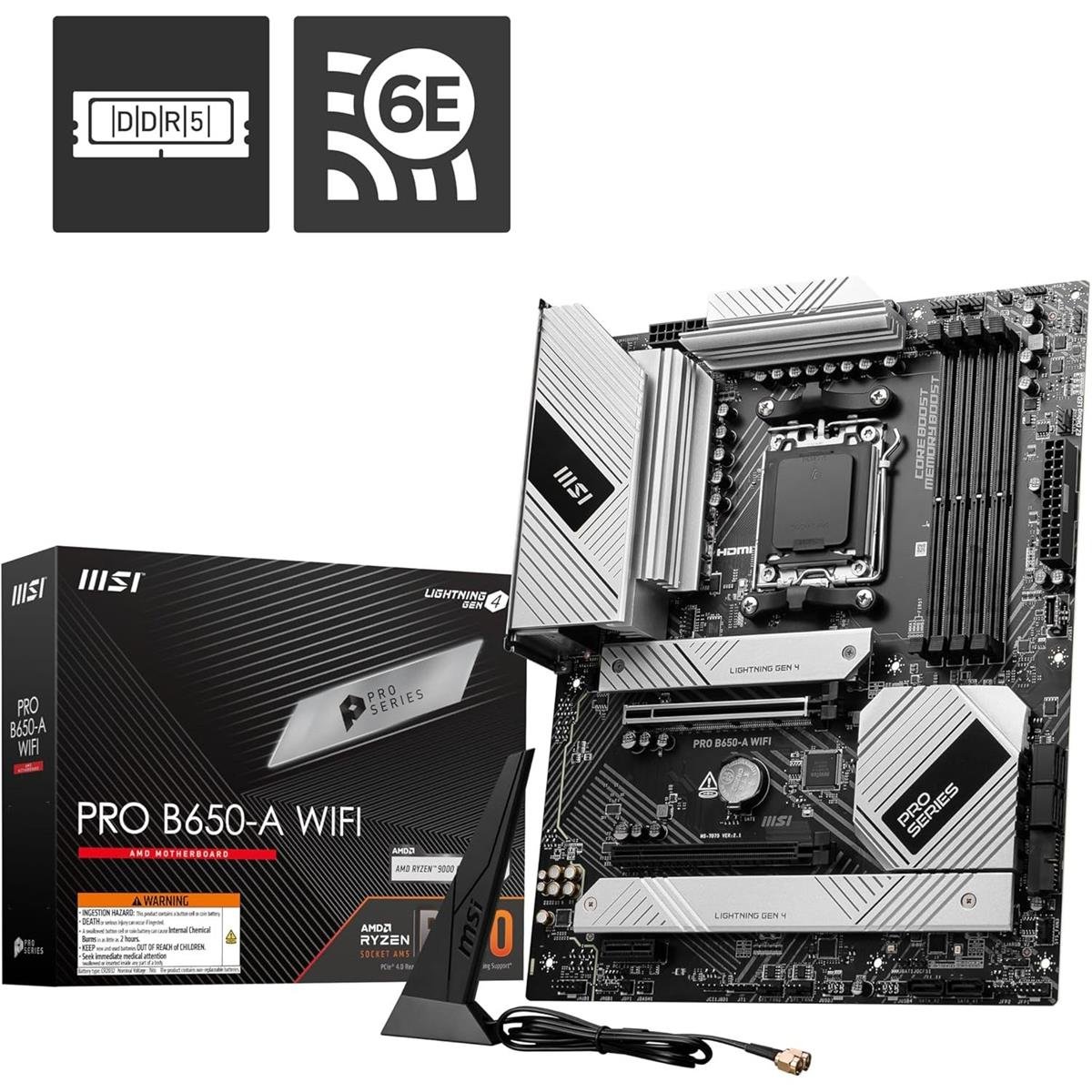

MSI PRO B650-A WIFI Motherboard - Image 3
MSI PRO B650-A WIFI Motherboard - Image 4

MSI PRO B650-A WIFI Motherboard

Original price was: ₹33,990.00.Current price is: ₹14,490.00.

✅ In Stock
🚚 Ships in 24–48 hours

The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.

Build Includes

  • 🔒 100% Sealed & Genuine Product
  • 🔄 Easy Returns
  • 🚚 Free & Safe Shipping
  • 📸 Sealed Product Pictures Shared Pre-shipping
  • Clean Cable Management
  • 🔒 100% Sealed & Genuine Product
  • 🔄 Easy Returns
  • 🚚 Free & Safe Shipping
  • 📸 Sealed Product Pictures Shared Pre-shipping
  • Clean Cable Management
  • 🔒 100% Sealed & Genuine Product
  • 🔄 Easy Returns
  • 🚚 Free & Safe Shipping
  • 📸 Sealed Product Pictures Shared Pre-shipping
  • Clean Cable Management
PRODUCT OVERVIEW
  • Chipset
  • AMD B650
  • CPU
  • Supports AMD Ryzen(TM) 9000/ 8000/ 7000 Series Desktop Processors
  • Socket AM5
  • Memory
  • 4x DDR5, Maximum Memory Capacity 256GB
  • Memory Support DDR5 7600+(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
  • Max. overclocking frequency: Onboard Graphics
  • 1x HDMI(TM)
  • Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz
  • 1x DisplayPort
  • Support DP 1.4 port with HBR3, maximum resolution of 8K 60Hz
  • Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
  • Slot
  • 2x PCI-E x16 slot
  • ? Supports x16/x2 (For Ryzen(TM) 9000/ 7000 Series processors)
  • ? Supports x8/x2 (For Ryzen(TM) 8700/ 8600/ 8400 Series processors)
  • ? Supports x4/x2 (For Ryzen(TM) 8500/ 8300 Series processors)
  • 1x PCI-E x1 slot
  • PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
  • PCI_E2 Gen PCIe 4.0 supports up to x2 (From Chipset)
  • PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
  • PCI_E2 & M2_3 share the bandwidth. PCI_E2 will run at x2 speed and M2_3 will run at x2 speed when installing devices in both slots.
  • Audio
  • Realtek(R) ALC4080 Codec
  • 7.1-Channel High Performance Audio
  • Supports S/PDIF output
  • Supports up to 32-Bit/384 kHz playback on front panel
  • Storage
  • 3x M.2
  • M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
  • M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
  • M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
  • 6x SATA 6G
  • The M2_2 slot will be unavailable when using Ryzen(TM) 8500/ 8300 Series processor
  • M2_3 & PCI_E2 share the bandwidth. M2_3 will run at x2 speed and PCI_E2 will run at x2 speed when installing devices in both slots.
  • RAID
  • Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
  • Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
  • SATA_A1 & SATA_A2 do not support RAID function.
  • USB
  • 2x USB 2.0 (Rear)
  • 4x USB 2.0 (Front)
  • 4x USB 5Gbps Type A (Rear)
  • 2x USB 5Gbps Type A (Front)
  • 3x USB 10Gbps Type A (Rear)
  • 1x USB 10Gbps Type C (Front)
  • 1x USB 20Gbps Type C (Rear)
  • LAN
  • Realtek(R) RTL8125B 2.5Gbps LAN
  • Internal IO
  • 1x Power Connector(ATX_PWR)
  • 2x Power Connector(CPU_PWR)
  • 1x CPU Fan
  • 1x Pump Fan
  • 6x System Fan
  • 2x Front Panel (JFP)
  • 1x Chassis Intrusion (JCI)
  • 1x Front Audio (JAUD)
  • 1x Tuning Controller connector(JDASH)
  • 2x Addressable V2 RGB LED connector (JARGB_V2)
  • 2x RGB LED connector(JRGB)
  • 1x TPM pin header(Support TPM 2.0)
  • 4x USB 2.0 ports
  • 2x USB 5Gbps Type A ports
  • 1x USB 10Gbps Type C ports
  • WIRELESS LAN & BLUETOOTH
  • AMD Wi-Fi 6E
  • The Wireless module is pre-installed in the M.2 (Key-E) slot
  • Supports MU-MIMO TX/RX
  • Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
  • Supports 802.11 a/ b/ g/ n/ ac/ ax
  • Supports Bluetooth(R) 5.3
  • The usage of Wi-Fi 6GHz band relies on Windows 11 support and depends on every country?s regulations.
  • The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor?s website for details.
  • LED FEATURE
  • 4x EZ Debug LED
  • BACK PANEL PORTS
  • DisplayPort
  • 2.5G LAN
  • USB 2.0
  • USB 5Gbps Type-A
  • Wi-Fi / Bluetooth
  • Audio Connectors
  • Flash BIOS Button
  • HDMI(TM)
  • USB 10Gbps Type-A
  • USB 20Gbps Type-C
  • Optical S/PDIF OUT
  • OPERATING SYSTEM
  • Support for Windows(R) 11 64-bit, Windows(R) 10 64-bit
  • BOX CONTENT
  • PCB Info
  • ATX | 243.84mmx304.8mm
  • COD Available (Select Locations)
  • EMI Options via Razorpay/ICICI/HDFC
  • PAN India Shipping (3–6 Days)
  • Product Photos Sent Before Shipping
