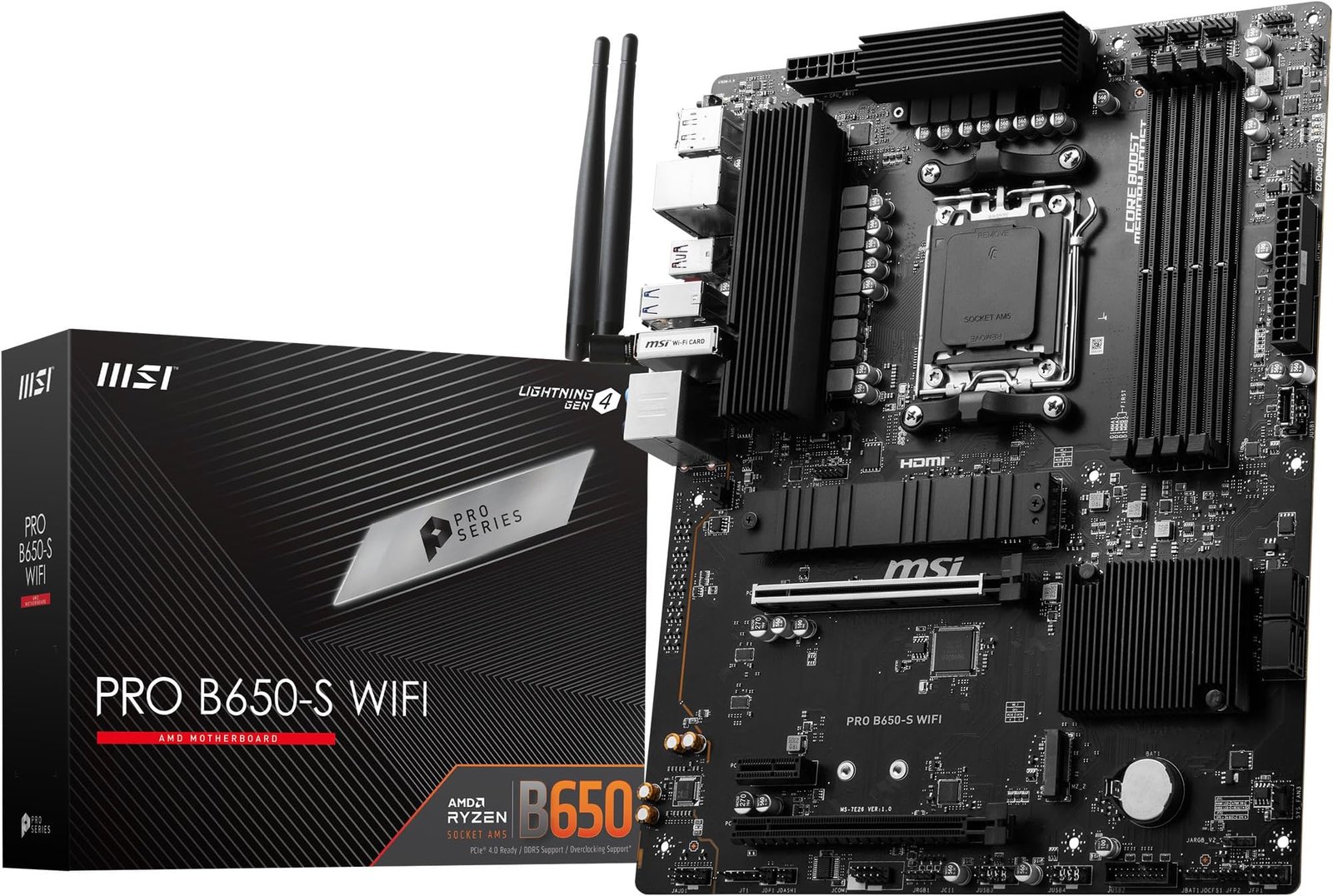

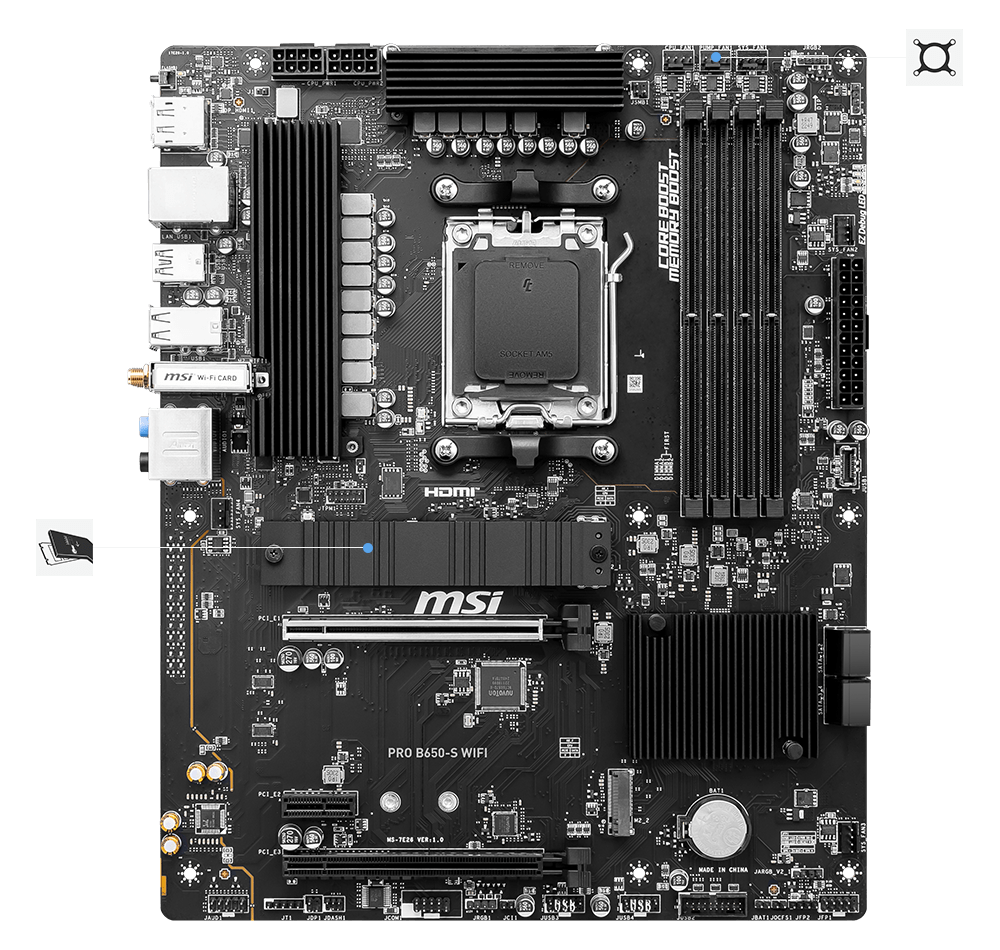

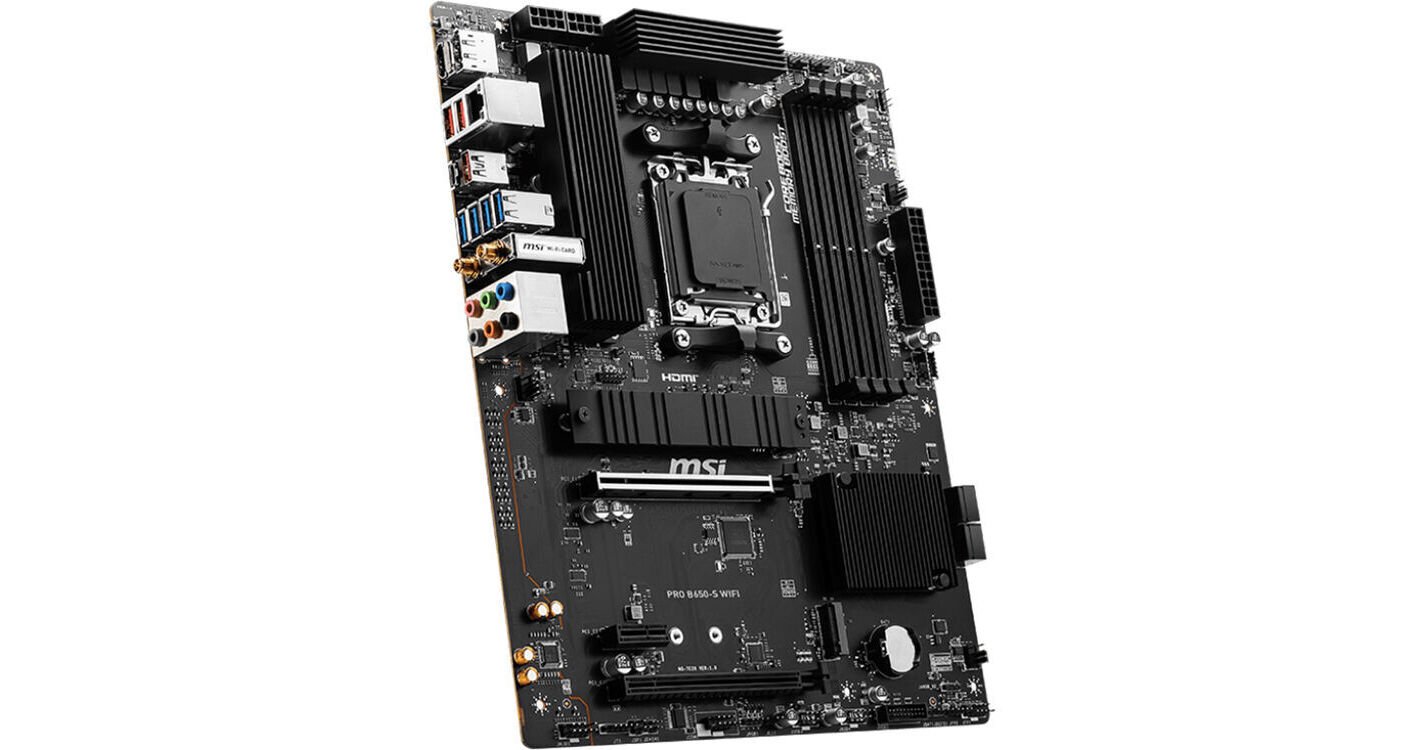

MSI PRO B650-S WIFI Motherboard

Chipset: AMD B650 CPU: Supports AMD Ryzen(TM) 9000/ 8000/ 7000 Series Desktop Processors: Socket AM5 Memory: 4x DDR5, Maximum Memory Capacity 256GB: Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Onboard Graphics 1x HDMI(TM) Support HDMITM 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Supports DP1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. Slot 2x PCI-E x16 slot: 1x PCI-E x1 slot: PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU): PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset): PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) Audio: Realtek(R) ALC897 Codec: 7.1-Channel High Definition Audio Storage: 2x M.2: M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280 devices: M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices: 4x SATA 6G Multi-GPU: AMD MULTI-GPU Support RAID: Supports RAID 0 and RAID 1 for SATA storage devices*: Supports RAID 0 and RAID 1 for M.2 NVMe storage devices USB: 4x USB 2.0 (Front): 4x USB 5Gbps Type A (Rear): 2x USB 5Gbps Type A (Front): 3x USB 10Gbps Type A (Rear): 1x USB 10Gbps Type C (Front): 1x USB 20Gbps Type C (Rear) LAN: Realtek(R) 8125BG 2.5G LAN Internal IO: 1x Power Connector(ATX_PWR): 2x Power Connector(CPU_PWR): 1x CPU Fan: 1x Pump Fan: 4x System Fan: 2x Front Panel (JFP): 1x Chassis Intrusion (JCI): 1x Front Audio (JAUD): 1x Com Port (JCOM): 1x Tuning Controller connector(JDASH): 2x Addressable V2 RGB LED connector (JARGB_V2): 2x RGB LED connector(JRGB): 1x TPM pin header(Support TPM 2.0): 4x USB 2.0 ports: 2x USB 5Gbps Type A ports: 1x USB 10Gbps Type C ports WIRELESS LAN & BLUETOOTH: Wi-Fi 6E: The Wireless module is pre-installed in the M.2 (Key-E) slot: Supports MU-MIMO TX/RX: Supports 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands: Supports 802.11 a/ b/ g/ n/ ac/ ax: : Supports Bluetooth(R) 5.3**: : * Wi-Fi 6E 6GHz may depend on every country?s regulations and will be ready in Windows 11.: ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. LED FEATURE: 4x EZ Debug LED BACK PANEL PORTS: : DisplayPort: 2.5G LAN: USB 3.2 Gen 2 10Gbps (Type-A): USB 3.2 Gen 1 5Gbps (Type-A): Wi-Fi / Bluetooth: Audio connectors: Flash BIOS Button: HDMI(TM): USB 3.2 Gen 2 10Gbps (Type-A): USB 3.2 Gen 2×2 20Gbps (Type-C): OPERATING SYSTEM: Support for Windows(R) 11 64-bit, Windows(R) 10 64-bit BOX CONTENT: PCB Info: ATX | 243.84mmx304.8mm
