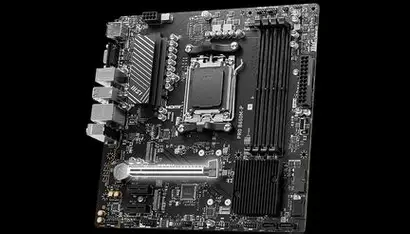

MSI PRO B650M-P Motherboard

Chipset: AMD B650 CPU: Supports AMD Ryzen(TM) 9000/ 8000/ 7000 Series Desktop Processors: Socket AM5 Memory: 4x DDR5, Maximum Memory Capacity 256GB: Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Onboard Graphics: 1x HDMI(TM): Support HDMITM 2.1, maximum resolution of 4K 60Hz*: 1x DisplayPort: Supports DP 1.4, maximum resolution of 4K 60Hz*: 1x VGA: Support VGA, maximum resolution of 1920×1200 60Hz*: *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. Slot: 1x PCI-E x16 slot: ? Supports x16 (For Ryzen(TM) 9000/ 7000 Series processors): ? Supports x8 (For Ryzen(TM) 8700/ 8600/ 8400 Series processors): ? Supports x4 (For Ryzen(TM) 8500/ 8300 Series processors): 2x PCI-E x1 slot: PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU): PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset): PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) Audio: Realtek(R) ALC897 Codec: 7.1-Channel High Definition Audio Storage: 2x M.2: M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices: M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices: 4x SATA 6G RAID: Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices: Supports RAID 0 and RAID 1 for M.2 NVMe storage devices USB: 4x USB 2.0 (Rear): 4x USB 2.0 (Front): 2x USB 5Gbps Type A (Rear): 2x USB 5Gbps Type A (Front): 2x USB 10Gbps Type A (Rear): 1x USB 10Gbps Type C (Front) LAN: Realtek(R) 8125BG 2.5G LAN Internal IO: 1x Power Connector(ATX_PWR): 1x Power Connector(CPU_PWR): 1x CPU Fan: 1x Pump Fan: 3x System Fan: 2x Front Panel (JFP): 1x Chassis Intrusion (JCI): 1x Front Audio (JAUD): 1x Com Port (JCOM): 2x Addressable V2 RGB LED connector (JARGB_V2): 2x RGB LED connector(JRGB): 1x TPM pin header(Support TPM 2.0): 4x USB 2.0 ports: 2x USB 5Gbps Type A ports: 1x USB 10Gbps Type C ports LED FEATURE: 4x EZ Debug LED BACK PANEL PORTS: : DisplayPort: VGA: Keyboard / Mouse: USB 2.0: 2.5G LAN: Audio connectors: Flash BIOS Button: HDMI(TM): USB 2.0: USB 3.2 Gen 1 5Gbps (Type-A): USB 3.2 Gen 2 10Gbps (Type-A): OPERATING SYSTEM: Support for Windows(R) 11 64-bit, Windows(R) 10 64-bit BOX CONTENT: PCB Info: mATX | 243.84mmx243.84mm
