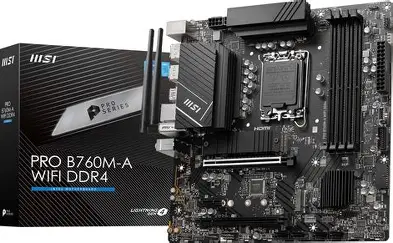

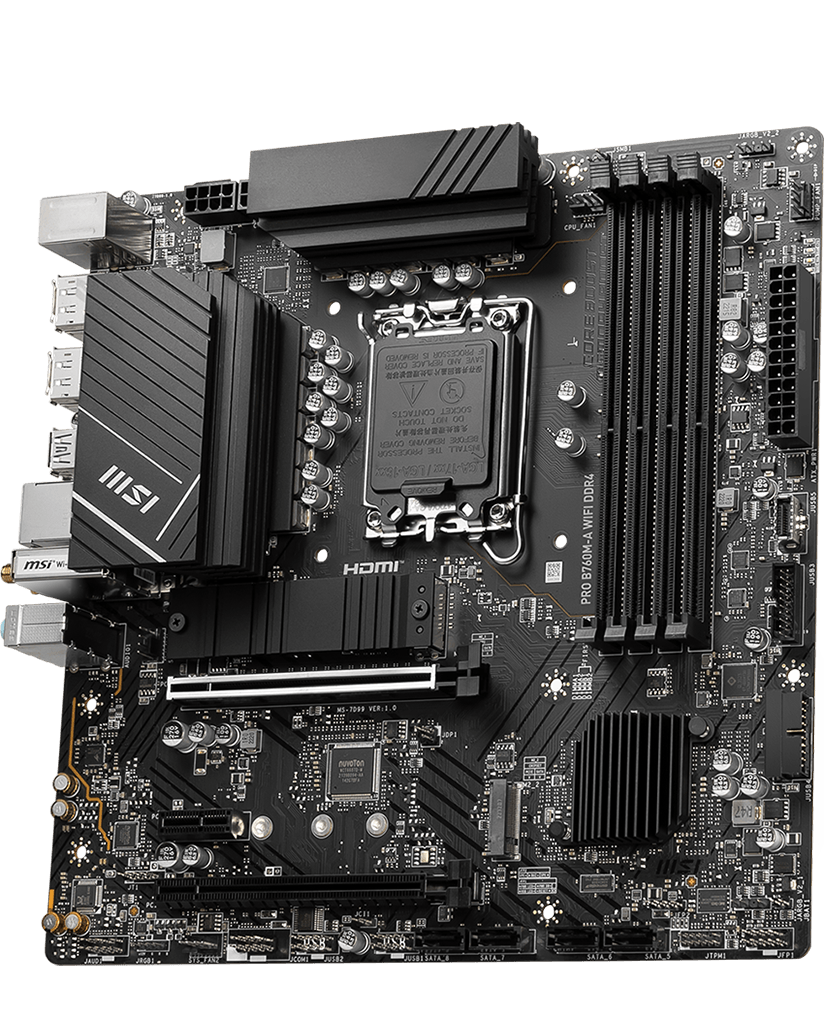

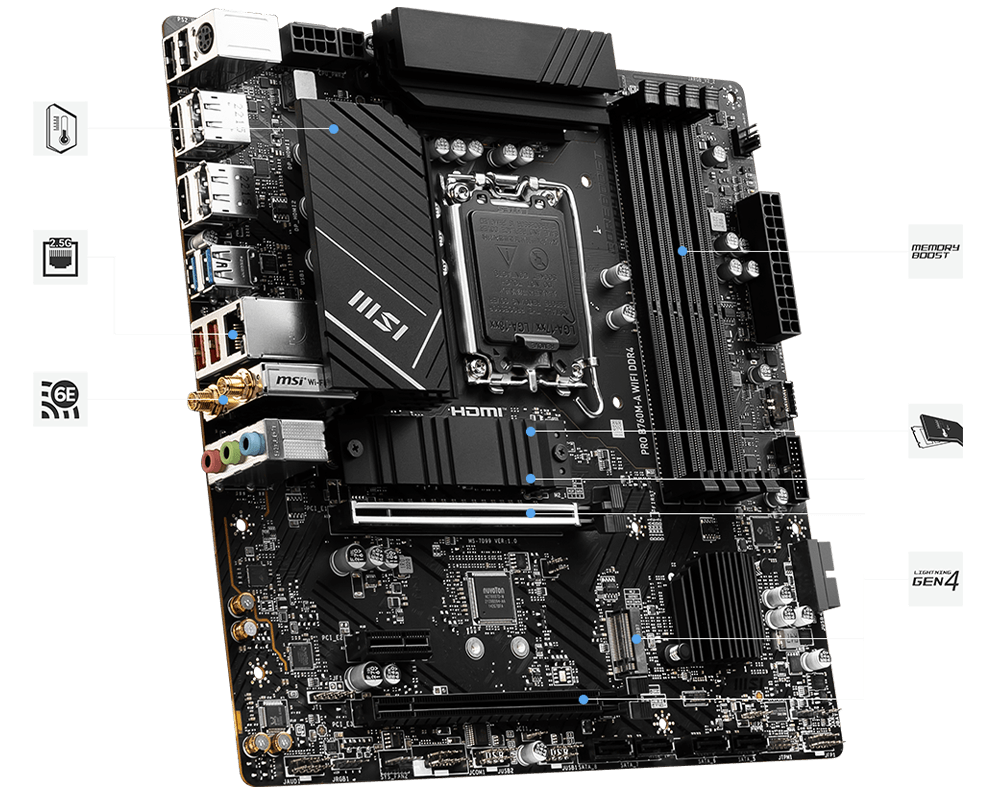

MSI PRO B760M-A WIFI DDR4 Motherboard
Original price was: ₹29,990.00.₹15,490.00Current price is: ₹15,490.00.
✅ In Stock
🚚 Ships in 24–48 hours
PRO B760M-A WIFI DDR4 is designed with tons of flexible tools and convenient Wi-Fi solution with DDR4 memory version.
Build Includes
- 🔒 100% Sealed & Genuine Product
- 🔄 Easy Returns
- 🚚 Free & Safe Shipping
- 📸 Sealed Product Pictures Shared Pre-shipping
- Clean Cable Management
- 🔒 100% Sealed & Genuine Product
- 🔄 Easy Returns
- 🚚 Free & Safe Shipping
- 📸 Sealed Product Pictures Shared Pre-shipping
- Clean Cable Management
- 🔒 100% Sealed & Genuine Product
- 🔄 Easy Returns
- 🚚 Free & Safe Shipping
- 📸 Sealed Product Pictures Shared Pre-shipping
- Clean Cable Management
PAYMENT & DELIVERY INFO
- COD Available (Select Locations)
- EMI Options via Razorpay/ICICI/HDFC
- PAN India Shipping (3–6 Days)
- Product Photos Sent Before Shipping
Technical Details
| Chipset | INTEL B760 |
| CPU | Support Intel(R) Core(TM) 14th/ 13th/ 12th Gen Processors, Intel(R) Pentium(R) Gold and Celeron(R) Processors: LGA 1700 |
| Memory | 4x DDR4, Maximum Memory Capacity 128GB: Memory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC |
| 2x HDMI(TM) | Support HDMI(TM) 2.1, maximum resolution of 4K 60Hz: 2x DisplayPort: Support DP 1.4, maximum resolution of 4K 60Hz: Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Slot | 2x PCI-E x16 slot: 1x PCI-E x1 slot: PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU): PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset): PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| Audio | Realtek(R) ALC897 Codec: 7.1-Channel High Definition Audio |
| Storage | 2x M.2: M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices: M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices: 4x SATA 6G: SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot. |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| USB | 2x USB 2.0 (Rear): 4x USB 2.0 (Front): 2x USB 5Gbps Type A (Rear): 4x USB 5Gbps Type A (Front): 1x USB 5Gbps Type C (Front): 2x USB 10Gbps Type A (Rear) |
| LAN | Realtek(R) RTL8125BG 2.5G LAN |
| Internal IO | 1x Power Connector(ATX_PWR): 2x Power Connector(CPU_PWR): 1x CPU Fan: 1x Pump Fan: 2x System Fan: 2x Front Panel (JFP): 1x Chassis Intrusion (JCI): 1x Front Audio (JAUD): 1x Com Port (JCOM): 2x Addressable V2 RGB LED connector (JARGB_V2): 1x RGB LED connector(JRGB): 1x TPM pin header(Support TPM 2.0): 4x USB 2.0 ports: 4x USB 5Gbps Type A ports: 1x USB 5Gbps Type C ports |
| WIRELESS LAN & BLUETOOTH | Intel(R) Wi-Fi 6E: The Wireless module is pre-installed in the M.2 (Key-E) slot: Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4Gbps: Supports 802.11 a/ b/ g/ n/ ac/ ax: : |
| Supports Bluetooth(R) 5.3, FIPS, FISMA | : |
| LED FEATURE | 4x EZ Debug LED |
| BACK PANEL PORTS | : |
| Keyboard / Mouse | DisplayPort: USB 3.2 Gen 1 5Gbps (Type-A): 2.5G LAN: Wi-Fi / Bluetooth: Audio Connectors: USB 2.0: HDMI(TM): USB 3.2 Gen 2 10Gbps (Type-A): OPERATING SYSTEM: Support for Windows(R) 11 64-bit, Windows(R) 10 64-bit |
| BOX CONTENT | PCB Info: mATX: 243.84mmx243.84mm |
