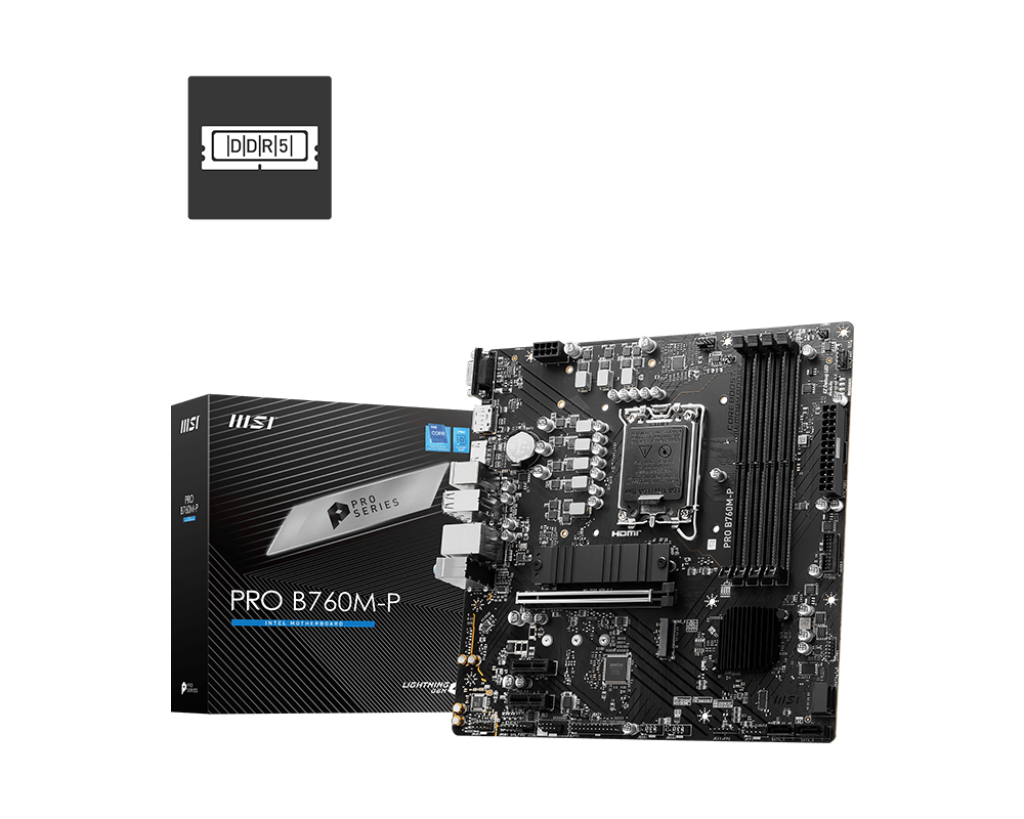

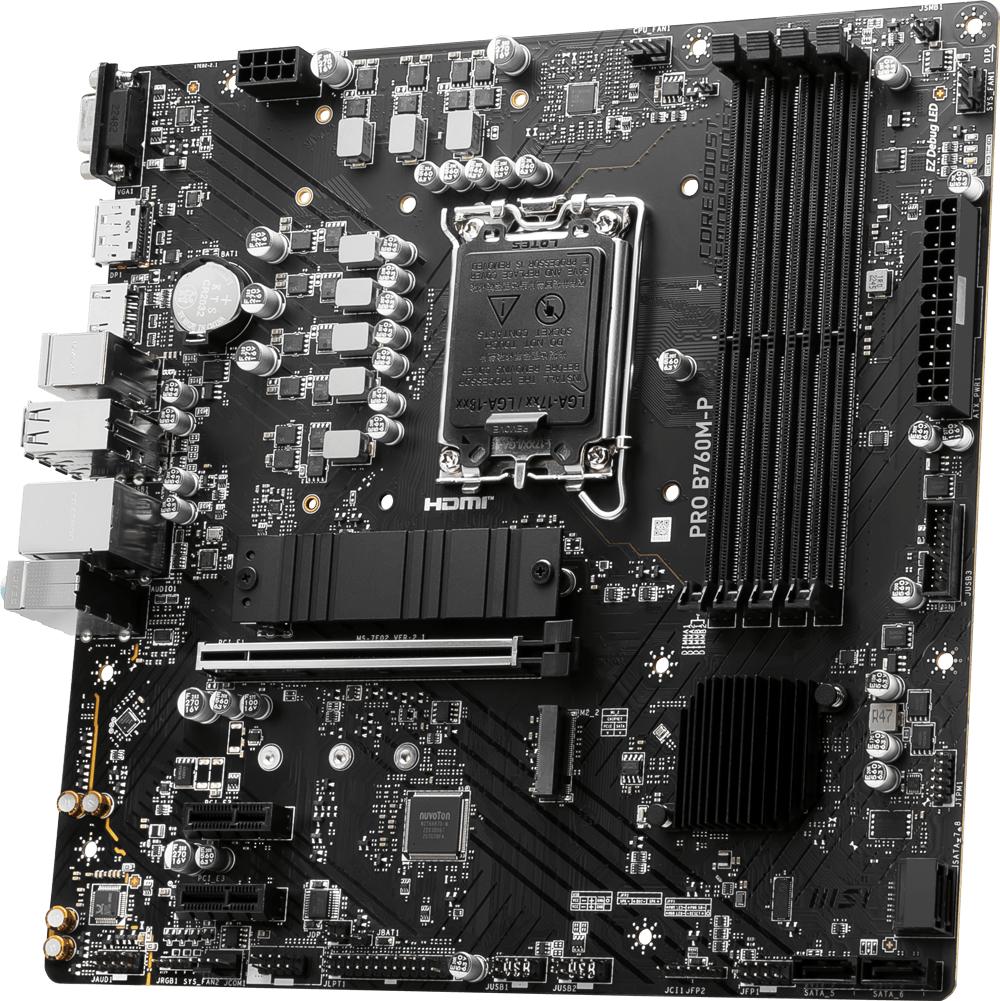

MSI PRO B760M-P Motherboard
Original price was: ₹23,990.00.₹12,299.00Current price is: ₹12,299.00.
✅ In Stock
🚚 Ships in 24–48 hours
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.
Build Includes
- 🔒 100% Sealed & Genuine Product
- 🔄 Easy Returns
- 🚚 Free & Safe Shipping
- 📸 Sealed Product Pictures Shared Pre-shipping
- Clean Cable Management
- 🔒 100% Sealed & Genuine Product
- 🔄 Easy Returns
- 🚚 Free & Safe Shipping
- 📸 Sealed Product Pictures Shared Pre-shipping
- Clean Cable Management
- 🔒 100% Sealed & Genuine Product
- 🔄 Easy Returns
- 🚚 Free & Safe Shipping
- 📸 Sealed Product Pictures Shared Pre-shipping
- Clean Cable Management
PAYMENT & DELIVERY INFO
- COD Available (Select Locations)
- EMI Options via Razorpay/ICICI/HDFC
- PAN India Shipping (3–6 Days)
- Product Photos Sent Before Shipping
Technical Details
| Chipset | INTEL B760 |
| CPU | Support Intel(R) Core(TM) 14th/ 13th/ 12th Gen Processors, Intel(R) Pentium(R) Gold and Celeron(R) Processors: LGA 1700 |
| Memory | 4x DDR5, Maximum Memory Capacity 256GB: Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz |
| 1x HDMI(TM) | Support HDMI(TM) 1.4, maximum resolution of 4K 30Hz: 1x DisplayPort: Support DP 1.4, maximum resolution of 4K 60Hz: 1x VGA: Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz: Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Slot | 1x PCI-E x16 slot: 2x PCI-E x1 slot: PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU): PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset): PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset) |
| Audio | Realtek(R) ALC897 Codec: 7.1-Channel High Definition Audio |
| Storage | 2x M.2: M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices: M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices: 4x SATA 6G: SATA5 will be unavailable when installing M.2 SATA SSD in the M2_2 slot. |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| USB | 4x USB 2.0 (Rear): 4x USB 2.0 (Front): 1x USB 5Gbps Type A (Rear): 2x USB 5Gbps Type A (Front): 1x USB 10Gbps Type C (Rear) |
| LAN | Realtek(R) RTL8111H Gigabit LAN |
| Internal IO | 1x Power Connector(ATX_PWR): 1x Power Connector(CPU_PWR): 1x CPU Fan: 2x System Fan: 2x Front Panel (JFP): 1x Chassis Intrusion (JCI): 1x Front Audio (JAUD): 1x Printer Port (JLPT): 1x Com Port (JCOM): 1x RGB LED connector(JRGB): 1x TPM pin header(Support TPM 2.0): 4x USB 2.0 ports: 2x USB 5Gbps Type A ports |
| LED FEATURE | 4x EZ Debug LED |
| BACK PANEL PORTS | : |
| VGA | DisplayPort: HDMI(TM): Keyboard / Mouse: USB 2.0: LAN port: Audio Connectors: USB 3.2 Gen 1 5Gbps (Type-A): USB 3.2 Gen 2 10Gbps (Type-C): OPERATING SYSTEM: Support for Windows(R) 11 64-bit, Windows(R) 10 64-bit |
| BOX CONTENT | PCB Info: mATX: 243.84mmx243.84mm |
