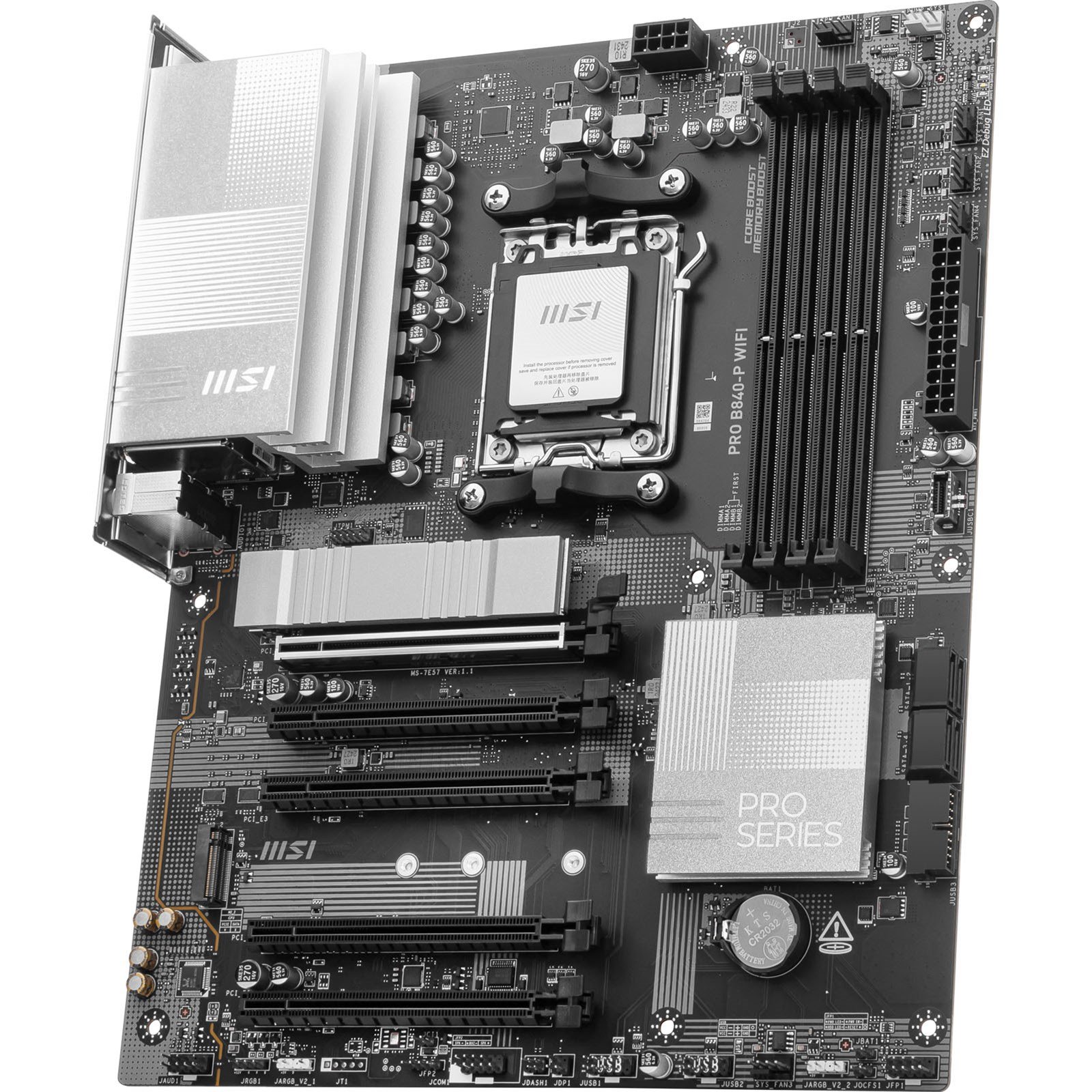

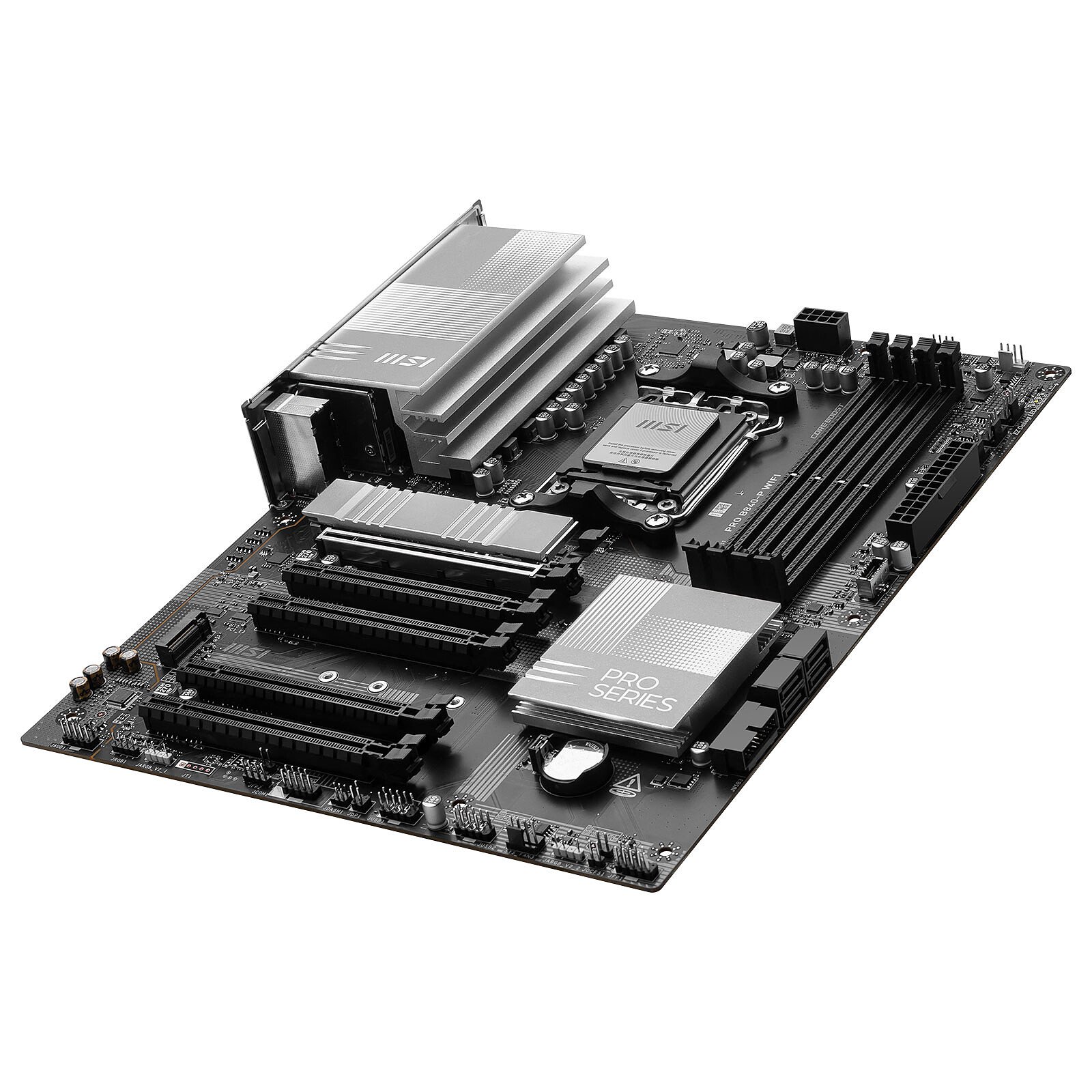

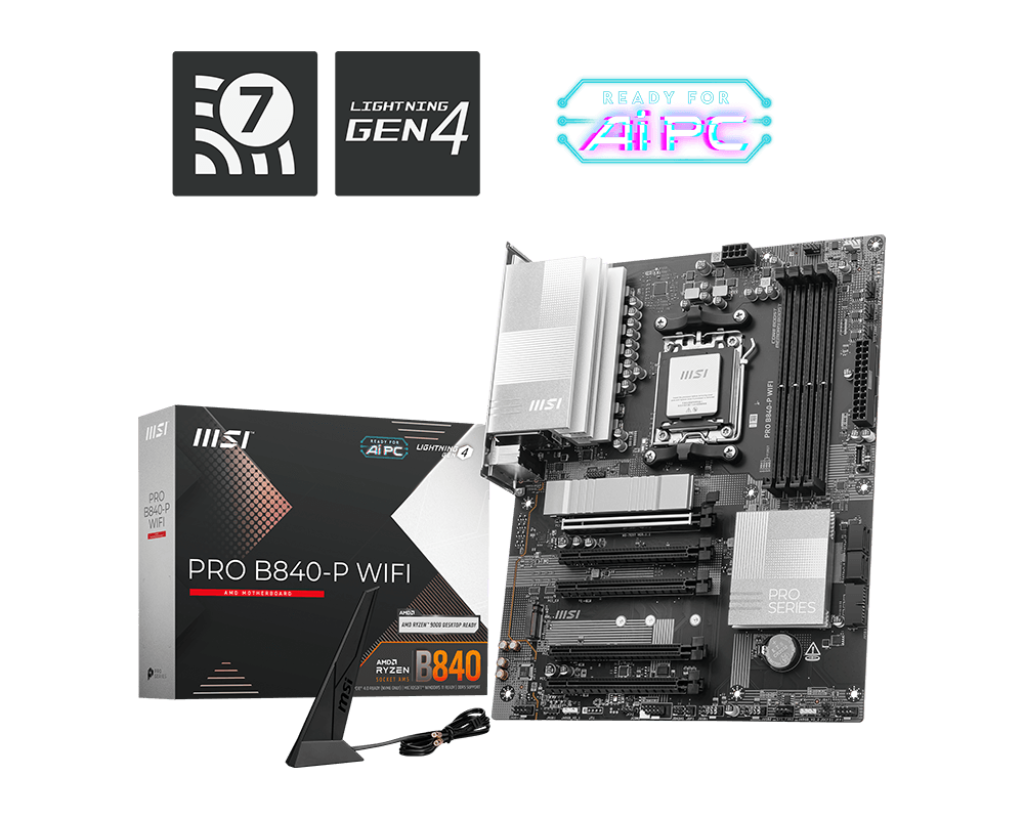

MSI PRO B840-P WIFI Motherboard
Original price was: ₹29,990.00.₹16,490.00Current price is: ₹16,490.00.
✅ In Stock
🚚 Ships in 24–48 hours
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.
Build Includes
- 🔒 100% Sealed & Genuine Product
- 🔄 Easy Returns
- 🚚 Free & Safe Shipping
- 📸 Sealed Product Pictures Shared Pre-shipping
- Clean Cable Management
- 🔒 100% Sealed & Genuine Product
- 🔄 Easy Returns
- 🚚 Free & Safe Shipping
- 📸 Sealed Product Pictures Shared Pre-shipping
- Clean Cable Management
- 🔒 100% Sealed & Genuine Product
- 🔄 Easy Returns
- 🚚 Free & Safe Shipping
- 📸 Sealed Product Pictures Shared Pre-shipping
- Clean Cable Management
PAYMENT & DELIVERY INFO
- COD Available (Select Locations)
- EMI Options via Razorpay/ICICI/HDFC
- PAN India Shipping (3–6 Days)
- Product Photos Sent Before Shipping
Technical Details
| Chipset | AMD B840 |
| CPU | Supports AMD Ryzen(TM) 9000/ 8000/ 7000 Series Desktop Processors: Socket AM5 |
| Memory | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB: Memory Support DDR5 8000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s: Ryzen(TM) 9000 Series Processors max. overclocking frequency: |
| Onboard Graphics | 1x HDMI(TM): Support HDMITM 2.1, maximum resolution of 4K 60Hz: Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Slot | 5x PCI-E x16 slot: PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU): PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset): PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset): PCI_E4 Gen PCIe 3.0 supports up to x4 (From Chipset): PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset): : |
| PCI_E1 slot | • Supports PCIe 4.0 x16 (For Ryzen(TM) 9000/ 7000 Series processors): • Supports PCIe 4.0 x8 (For Ryzen(TM) 8700/ 8600/ 8400 Series processors): • Supports PCIe 4.0 x4 (For Ryzen(TM) 8500/ 8300 Series processors) |
| Audio | Realtek(R) ALC897: 7.1-Channel High Definition Audio |
| Storage | 2x M.2: M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices: M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices: 4x SATA 6G: : |
| M2_2 slot | • Supports up to PCIe 4.0 x4 (For Ryzen(TM) 9000/ 7000 Series processors): • Supports up to PCIe 3.0 x4 (For Ryzen(TM) 8700/ 8600/ 8400 Series processors): • Supports up to PCIe 3.0 x2 (For Ryzen(TM) 8500/ 8300 Series processors): : |
| RAID | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices: Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
| USB | 4x USB 2.0 (Rear): 4x USB 2.0 (Front): 2x USB 5Gbps Type A (Rear): 2x USB 5Gbps Type A (Front): 1x USB 5Gbps Type C (Front): 1x USB 10Gbps Type A (Rear): 1x USB 10Gbps Type C (Rear) |
| LAN | Realtek(R) 8125D 2.5G LAN |
| Internal IO | 1x Power Connector(ATX_PWR): 1x Power Connector(CPU_PWR): 1x CPU Fan: 1x Combo Fan (Pump_Sys Fan): 4x System Fan: 2x Front Panel (JFP): 1x Chassis Intrusion (JCI): 1x Front Audio (JAUD): 1x Com Port (JCOM): 1x Tuning Controller connector(JDASH): 2x Addressable V2 RGB LED connector (JARGB_V2): 1x RGB LED connector(JRGB): 1x TPM pin header(Support TPM 2.0): 4x USB 2.0 ports: 2x USB 5Gbps Type A ports: 1x USB 5Gbps Type C ports |
| WIRELESS LAN & BLUETOOTH | Wi-Fi 7: The Wireless module is pre-installed in the M.2 (Key-E) slot: Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (320MHz) up to 5.8Gbps: Supports 802.11 a/ b/ g/ n/ ac/ ax/ be: : |
| Supports Bluetooth(R) 5.4, MLO, 4KQAM | : |
| LED FEATURE | 4x EZ Debug LED: 1x EZ Memory Detection LED |

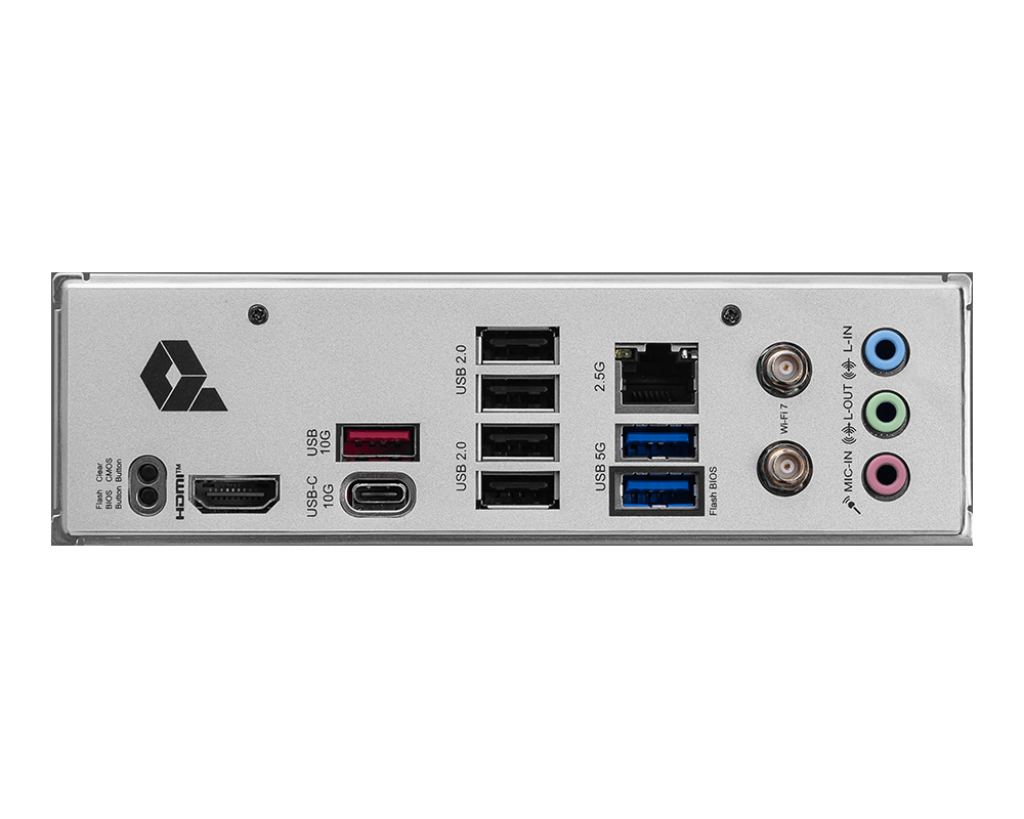

| BACK PANEL PORTS | : |
| Clear CMOS Button | USB 10Gbps Type-A: USB 2.0: 2.5G LAN: Wi-Fi / Bluetooth: Audio connectors: Flash BIOS Button: HDMI(TM): USB 10Gbps Type-C: USB 5Gbps Type-A: OPERATING SYSTEM: Support for Windows(R) 11 64-bit |
| BOX CONTENT | PCB Info: ATX | 243.84mmx304.8mm |
