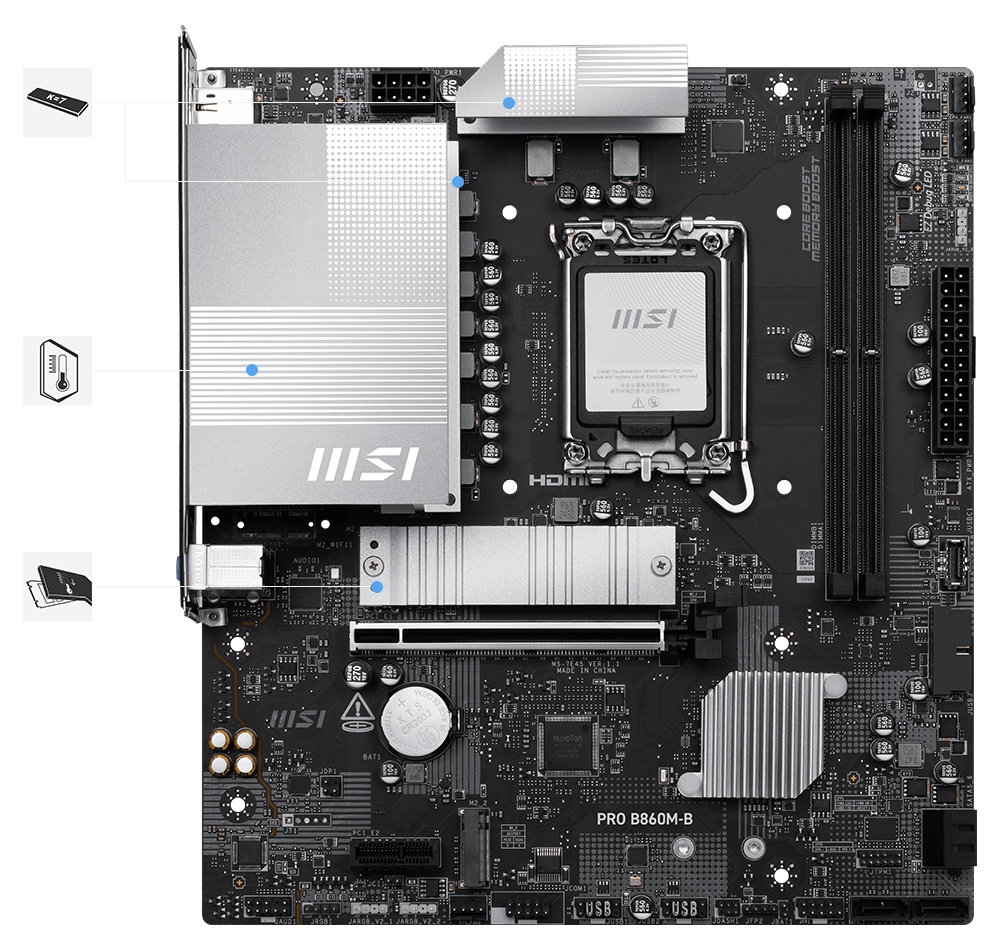

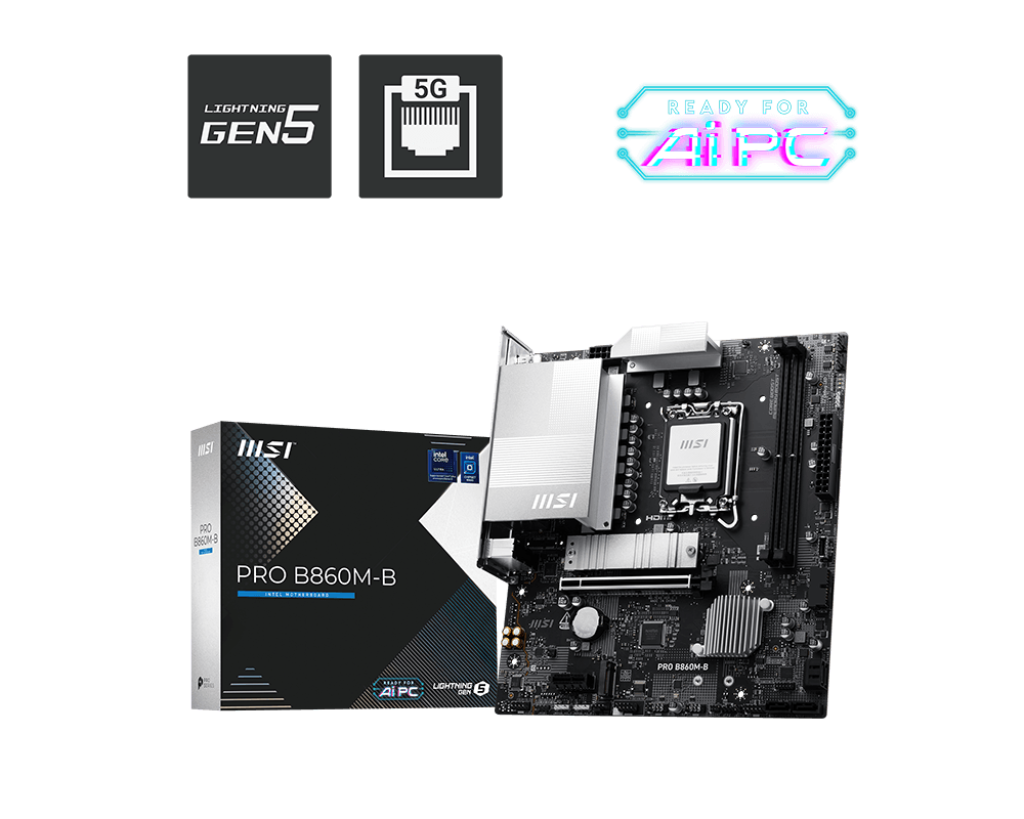

MSI PRO B860M-B Motherboard

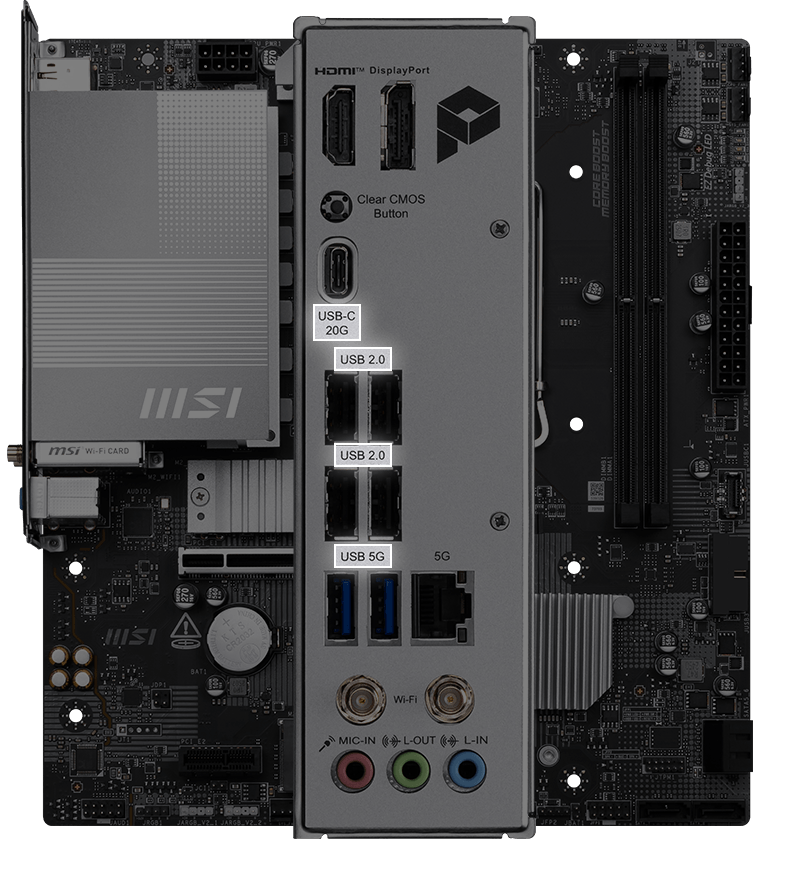

Chipset: INTEL B860 CPU: Supports Intel(R) Core(TM) Ultra Processors (Series 2): LGA 1851 Memory: 2x DDR5 UDIMM, Maximum Memory Capacity 128GB: Memory Support DDR5 9066 – 6400 (OC) MT/s / 6400 – 4800 (JEDEC) MT/s Onboard Graphics: 1x HDMI(TM): Support HDMI(TM) 2.1, maximum resolution of 4K 60Hz*: 1x DisplayPort: Support DisplayPort 1.4, maximum resolution of 4K 60Hz*: *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. Slot: 1x PCI-E x16 slot: 1x PCI-E x1 slot: PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU): PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) Audio: Realtek(R) ALC897 Codec: 7.1-Channel High Definition Audio Storage: 2x M.2: M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices: M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices: 4x SATA 6G: : *Please refer to the manual for M.2 SSD heatsink restrictions. USB: 4x USB 2.0 (Rear): 4x USB 2.0 (Front): 2x USB 5Gbps Type A (Rear): 2x USB 5Gbps Type A (Front): 1x USB 10Gbps Type C (Front): 1x USB 20Gbps Type C (Rear) LAN: Realtek(R) 8126 5Gbps LAN Internal IO: 1x Power Connector(ATX_PWR): 1x Power Connector(CPU_PWR): 1x CPU Fan: 2x System Fan: 2x Front Panel (JFP): 1x Chassis Intrusion (JCI): 1x Front Audio (JAUD): 1x Com Port (JCOM): 1x Tuning Controller connector(JDASH): 3x Addressable V2 RGB LED connector (JARGB_V2): 1x RGB LED connector(JRGB): 1x TPM pin header(Support TPM 2.0): 4x USB 2.0 ports: 2x USB 5Gbps Type A ports: 1x USB 10Gbps Type C ports LED FEATURE: 4x EZ Debug LED: 1x EZ Memory Detection LED BACK PANEL PORTS: : DisplayPort: Clear CMOS Button: USB 20Gbps Type-C: USB 2.0: 5G LAN: Audio Connectors: HDMI(TM): USB 5Gbps Type-A: OPERATING SYSTEM: Support for Windows(R) 11 64-bit BOX CONTENT: PCB Info: mATX | 220mmx243.84mm
