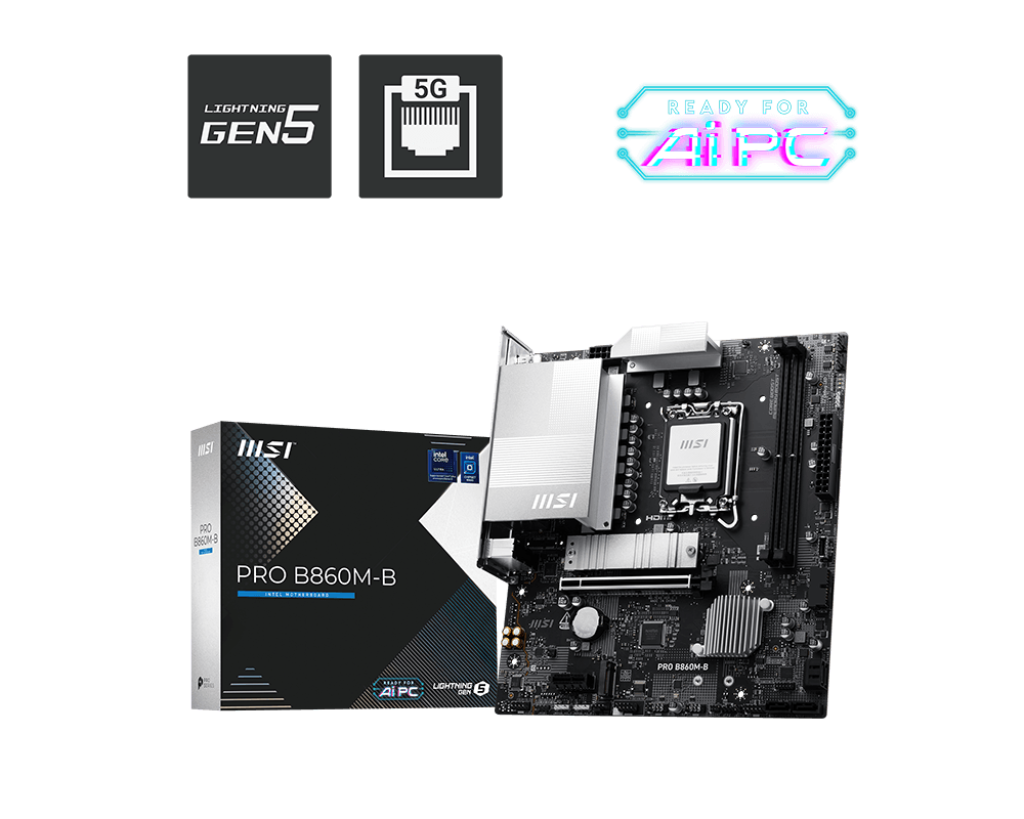

MSI PRO B860M-B Motherboard
Original price was: ₹19,990.00.₹11,690.00Current price is: ₹11,690.00.
✅ In Stock
🚚 Ships in 24–48 hours
PRO B860M-B Title PRO B860M-B offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI, EZ PCIe Clip II, 5G LAN, and PCIe 5.0 M.2, ready for the Intel(R) Core(TM) Ultra processors.
Build Includes
- 🔒 100% Sealed & Genuine Product
- 🔄 Easy Returns
- 🚚 Free & Safe Shipping
- 📸 Sealed Product Pictures Shared Pre-shipping
- Clean Cable Management
- 🔒 100% Sealed & Genuine Product
- 🔄 Easy Returns
- 🚚 Free & Safe Shipping
- 📸 Sealed Product Pictures Shared Pre-shipping
- Clean Cable Management
- 🔒 100% Sealed & Genuine Product
- 🔄 Easy Returns
- 🚚 Free & Safe Shipping
- 📸 Sealed Product Pictures Shared Pre-shipping
- Clean Cable Management
PAYMENT & DELIVERY INFO
- COD Available (Select Locations)
- EMI Options via Razorpay/ICICI/HDFC
- PAN India Shipping (3–6 Days)
- Product Photos Sent Before Shipping
Technical Details
| Chipset | INTEL B860 |
| CPU | Supports Intel(R) Core(TM) Ultra Processors (Series 2): LGA 1851 |
| Memory | 2x DDR5 UDIMM, Maximum Memory Capacity 128GB: Memory Support DDR5 9066 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s |
| Onboard Graphics | 1x HDMI(TM): Support HDMI(TM) 2.1, maximum resolution of 4K 60Hz: 1x DisplayPort: Support DisplayPort 1.4, maximum resolution of 4K 60Hz: Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Slot | 1x PCI-E x16 slot: 1x PCI-E x1 slot: PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU): PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) |
| Audio | Realtek(R) ALC897 Codec: 7.1-Channel High Definition Audio |
| Storage | 2x M.2: M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices: M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices: 4x SATA 6G: : |
| USB | 4x USB 2.0 (Rear): 4x USB 2.0 (Front): 2x USB 5Gbps Type A (Rear): 2x USB 5Gbps Type A (Front): 1x USB 10Gbps Type C (Front): 1x USB 20Gbps Type C (Rear) |
| LAN | Realtek(R) 8126 5Gbps LAN |
| Internal IO | 1x Power Connector(ATX_PWR): 1x Power Connector(CPU_PWR): 1x CPU Fan: 2x System Fan: 2x Front Panel (JFP): 1x Chassis Intrusion (JCI): 1x Front Audio (JAUD): 1x Com Port (JCOM): 1x Tuning Controller connector(JDASH): 3x Addressable V2 RGB LED connector (JARGB_V2): 1x RGB LED connector(JRGB): 1x TPM pin header(Support TPM 2.0): 4x USB 2.0 ports: 2x USB 5Gbps Type A ports: 1x USB 10Gbps Type C ports |
| LED FEATURE | 4x EZ Debug LED: 1x EZ Memory Detection LED |
| BACK PANEL PORTS | : |

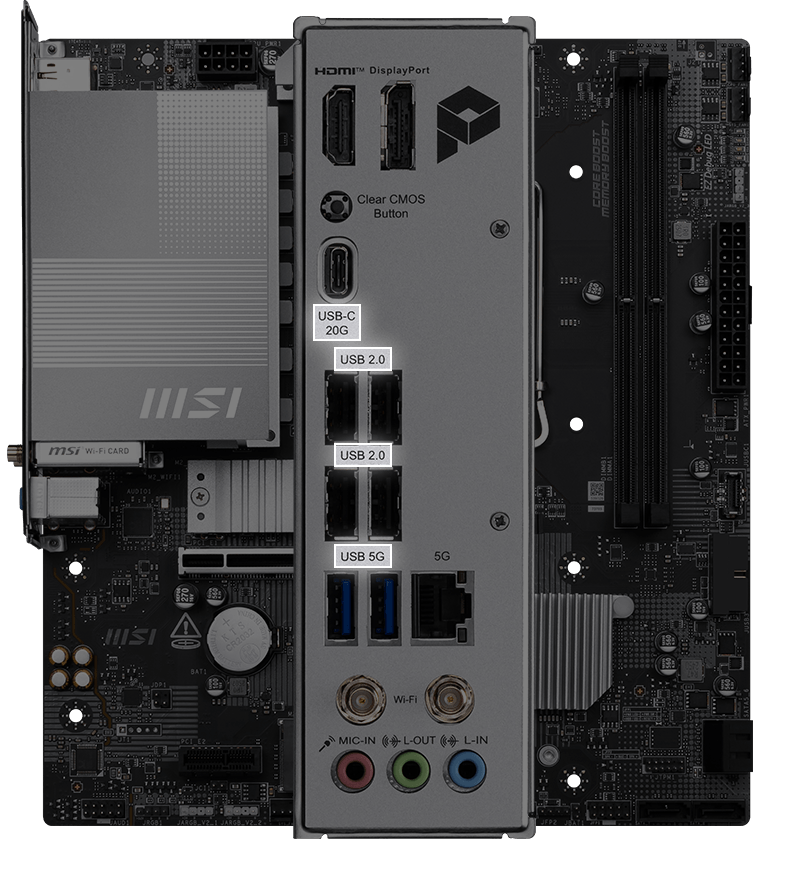

| DisplayPort | Clear CMOS Button: USB 20Gbps Type-C: USB 2.0: 5G LAN: Audio Connectors: HDMI(TM): USB 5Gbps Type-A: OPERATING SYSTEM: Support for Windows(R) 11 64-bit |
| BOX CONTENT | PCB Info: mATX | 220mmx243.84mm |
