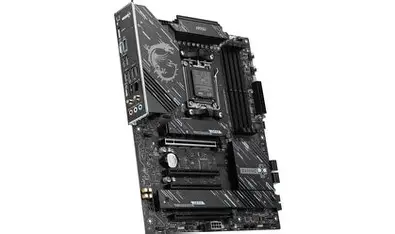

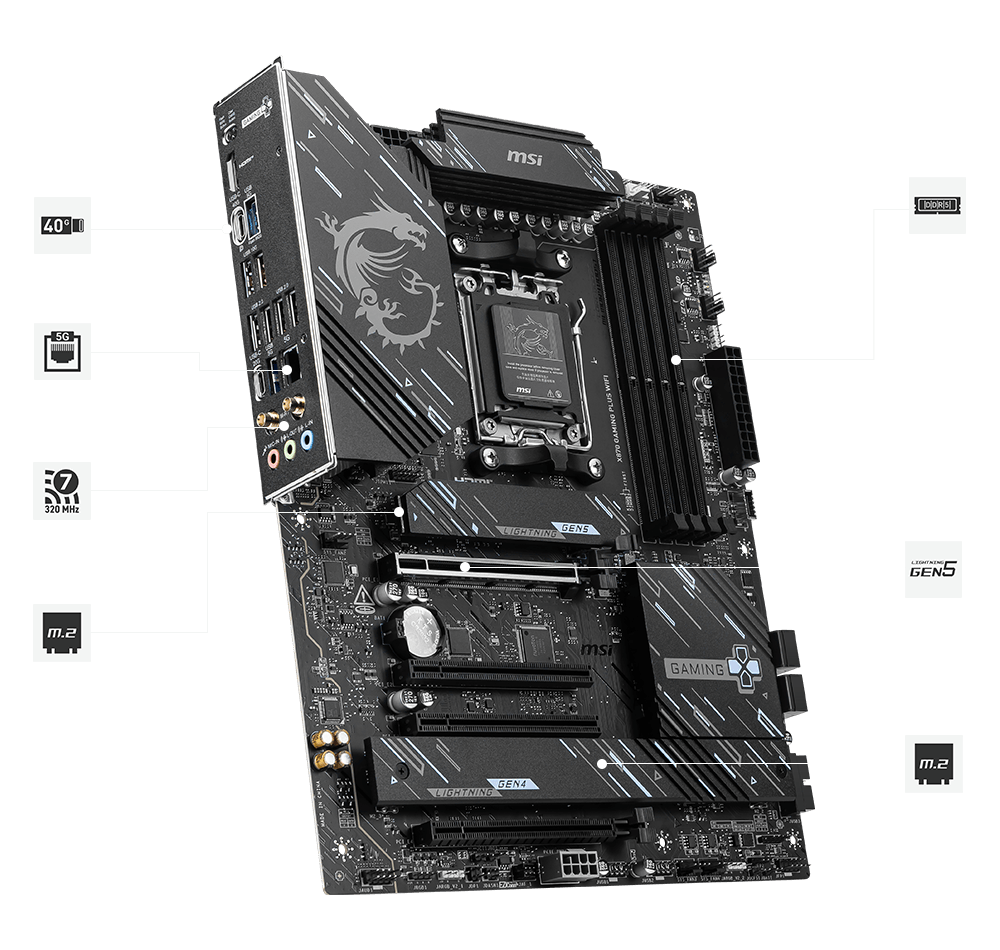

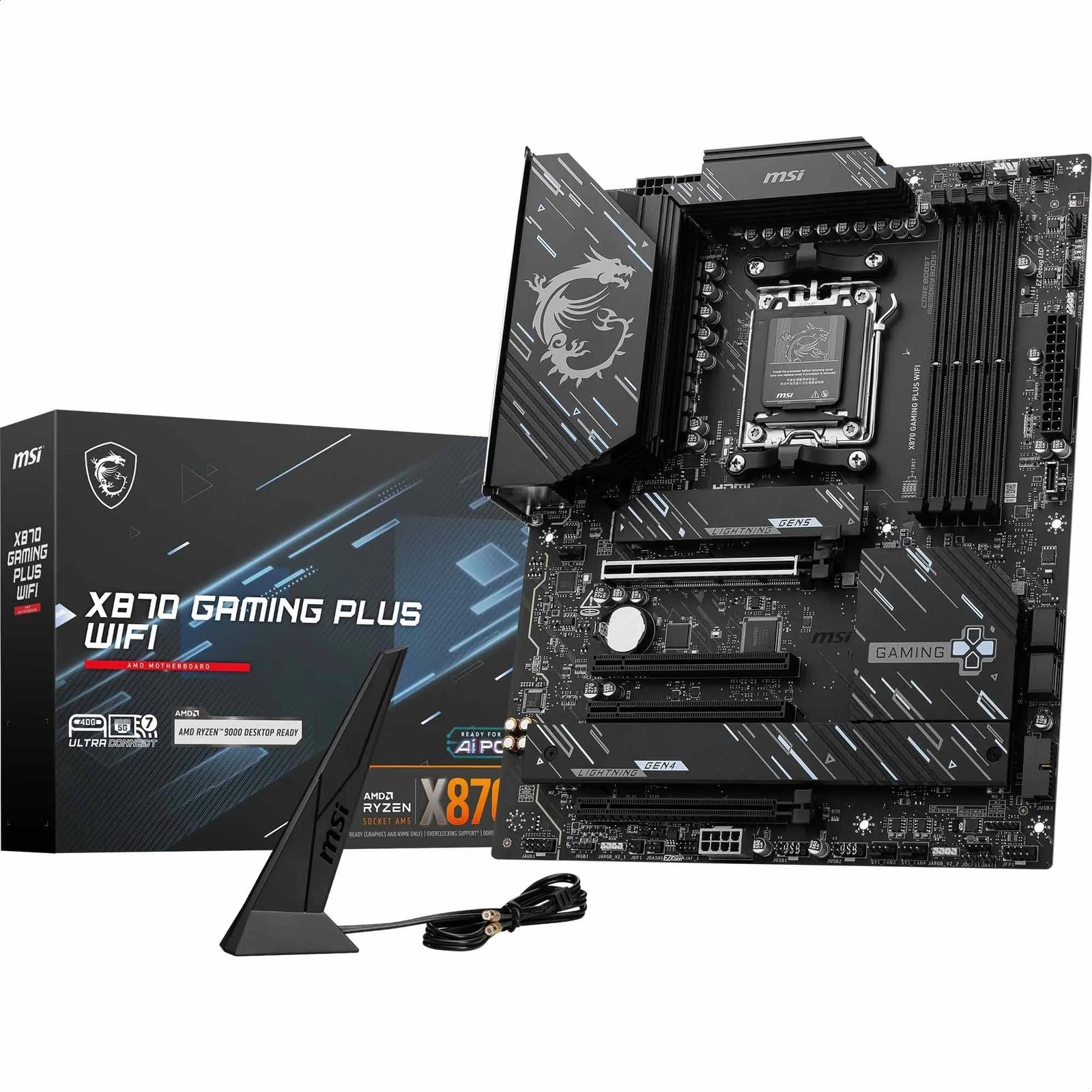

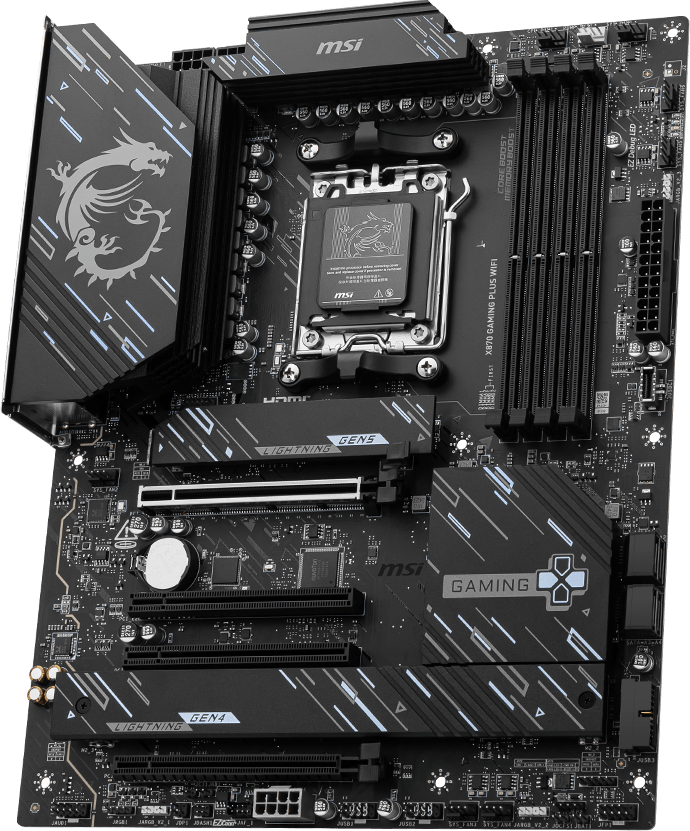

MSI X870 GAMING PLUS WIFI Motherboard

Chipset: AMD X870 CPU: Supports AMD Ryzen(TM) 9000/ 8000/ 7000 Series Desktop Processors: Socket AM5 Memory: 4x DDR5 UDIMM, Maximum Memory Capacity 256GB: Memory Support DDR5 8200 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s: Ryzen(TM) 9000 Series Processors max. overclocking frequency: Onboard Graphics: 1x HDMI(TM): Support HDMITM 2.1, maximum resolution of 4K 60Hz*: 1x Type-C DisplayPort: USB4(R) port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz*: *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. Slot: 4x PCI-E x16 slot: PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU): PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset): PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset): PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset): : PCI_E1 slot: ? Supports PCIe 5.0 x16 (For Ryzen(TM) 9000/ 7000 Series processors): ? Supports PCIe 4.0 x8 (For Ryzen(TM) 8700/ 8600/ 8400 Series processors): ? Supports PCIe 4.0 x4 (For Ryzen(TM) 8500/ 8300 Series processor): : * PCI_E4 slot will run at x2 speed when installing M.2 SSD in the M2_3 slot. Audio: Realtek(R) ALC897: 7.1-Channel High Definition Audio Storage: 3x M.2: M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices: M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices: M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices: 4x SATA 6G: : M2_1 slot: ? Supports up to PCIe 5.0 x4 (For Ryzen(TM) 9000/ 7000 Series processors): ? Supports up to PCIe 4.0 x4 (For Ryzen(TM) 8000 Series processors): : *Please refer to the manual for M.2 SSD heatsink restrictions. RAID: ??Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices: : *SATA_A1~A4 do not support RAID function.: *RAID 5 configuration is only supported by Ryzen(TM) 9000 series processors. USB: 4x USB 2.0 (Rear): 4x USB 2.0 (Front): 2x USB 5Gbps Type A (Rear): 2x USB 5Gbps Type A (Front): 2x USB 10Gbps Type A (Rear): 1x USB 10Gbps Type C (Front): 1x USB 20Gbps Type C (Rear): 1x USB 40Gbps Type C (Rear) LAN: Realtek(R) 8126VB 5G LAN Internal IO: 1x Power Connector(ATX_PWR): 2x Power Connector(CPU_PWR): 1x Power Connector(PCIE_PWR 8pin): 1x CPU Fan: 1x Combo Fan (Pump_Sys Fan): 6x System Fan: 1x EZ Conn-header (JAF_1): 2x Front Panel (JFP): 1x Chassis Intrusion (JCI): 1x Front Audio (JAUD): 1x Tuning Controller connector(JDASH): 3x Addressable V2 RGB LED connector (JARGB_V2): 1x RGB LED connector(JRGB): 1x TPM pin header(Support TPM 2.0): 4x USB 2.0 ports: 2x USB 5Gbps Type A ports: 1x USB 10Gbps Type C ports WIRELESS LAN & BLUETOOTH: Wi-Fi 7: The Wireless module is pre-installed in the M.2 (Key-E) slot: Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps: Supports 802.11 a/ b/ g/ n/ ac/ ax/ be: : Supports Bluetooth(R) 5.4**, MLO, 4KQAM: LED FEATURE: 4x EZ Debug LED BACK PANEL PORTS: : Clear CMOS Button: USB 5Gbps Type-A: USB 10Gbps Type-A: USB 2.0: 5G LAN: Wi-Fi / Bluetooth: Audio connectors: Flash BIOS Button: HDMI(TM): USB 40Gbps Type-C: USB 2.0: USB 20Gbps Type-C: USB 5Gbps Type-A: OPERATING SYSTEM: Support for Windows(R) 11 64-bit BOX CONTENT: PCB Info: ATX | 243.84mmx304.8mm
