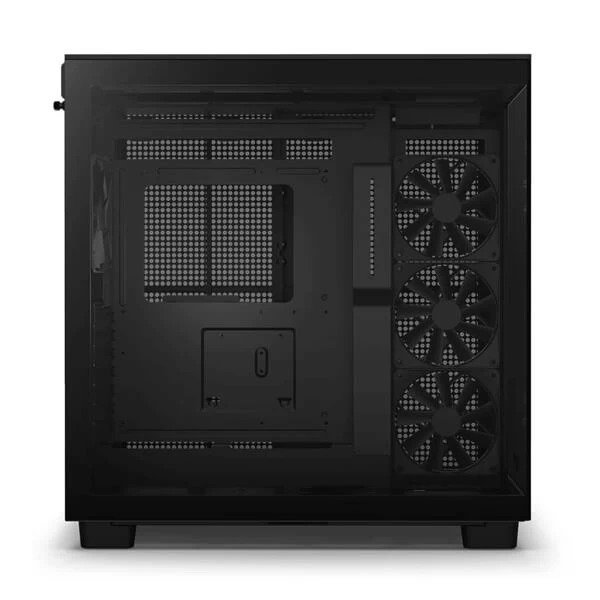

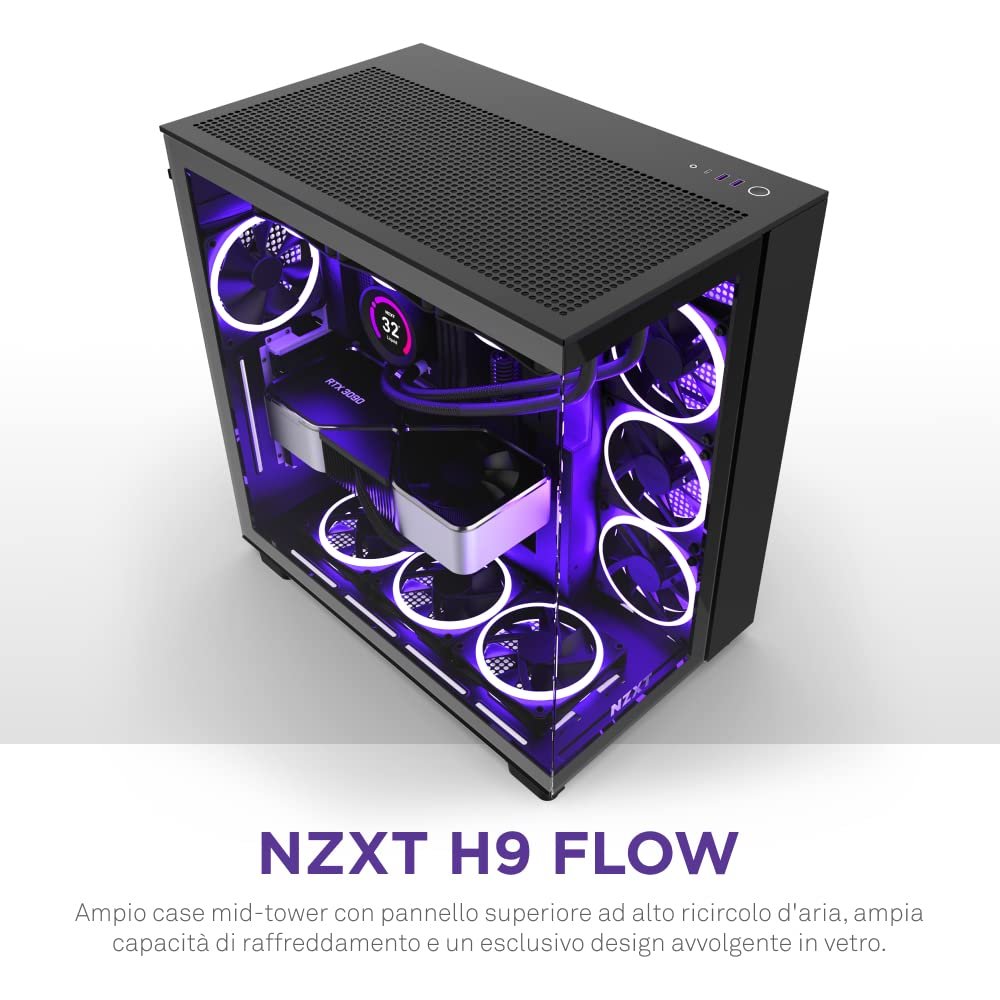

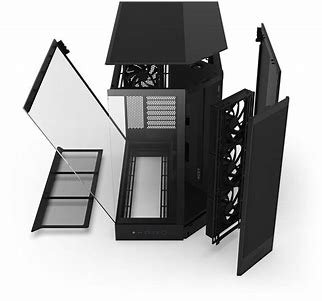

NZXT Chassis H9 Flow (2025) Dual-Chamber Mid-Tower Case Black

Height: 506 mm (19.9 in)
Width: 315 mm (12.4 in)
Depth: 481 mm (18.9 in)
Volume: 76.7 L

Weight: 13.4 kg (29.54 lb)
Enclosure Type: Mid-tower

Motherboard Compatibility: E-ATX (Up to 277 mm), ATX, Micro-ATX, Mini-ITX

Rear-Connecting Motherboard Support (BTF, Project Zero): Yes (ATX)
Materials: SGCC steel, clear tempered glass (white), tinted tempered glass (black)
CPU Cooler Height: 165 mm

GPU Length: Up to 459 mm (with <56 mm thickness fans installed at the front-right) Up to 410 mm (with 56 mm thick 420 mm AIO and fans installed at the front-right)
PSU Length: 200 mm

Top Radiator & Fan Thickness: Up to 80 mm (360 mm) Up to 62 mm (420 mm)
USB 3.2 Type-A: 2

USB 3.2 Gen2x2 Type-C: 1

Headset Jack: 1

Standard: 7

Vertical: 0
2.5″: 4+2
3.5″: 2

Front-Right: 3 x 120 mm / 3 x 140 mm (1 x F420 RGB Core included)
Top: 3 x 120 mm / 3 x 140 mm

Bottom: 3 x 120 mm / 3 x 140 mm (1 x F420 RGB Core included)
Rear: 1 x 120 mm (1 x F120 RGB (CV) included)
Front-Right: Up to 420 mm

Top: Up to 420 mm

Bottom: Up to 360 mm

Rear: Up to 120 mm

Model: F420 RGB Core

Speed: 2,000 ? 200 RPM

Airflow: 98.61 CFM

Static Pressure: 3.2 mmH2O

Noise: 34.5 dBA

Fan Connector: 8-pin

Model: F120 RGB Core (CV)
Speed: 1,300 ? 130 RPM

Airflow: 55.17 CFM

Static Pressure: 1.27 mmH2O

Noise: 26.1 dBA

Fan Connector: 3-pin

Fan Channels: 3 x NZXT 8-pin (PWM only) / 1 x NZXT 8-pin (DC+PWM control) / 1 x 4-pin PWM (DC+PWM control)
RGB Channels: 4 x NZXT 8-pin / 1 x NZXT RGB

Max LED Support: Each NZXT 8-pin channel supports a maximum of 96 LEDs. NZXT RGB channel supports up to 40 LEDs and up to NZXT 5 devices.
System Requirements: USB 2.0 Internal Header 8-pin PCIe Power

Warranty: 2 years

Model Number: CM-H92FW-P1 CM-H92FB-P1 CM-H92FW-P2 CM-H92FB-P2

UPC: 810074847889 810074847896 815671019530 815671019547

EAN: 5056547207674 5056547207681 5056547208886 5056547208893
