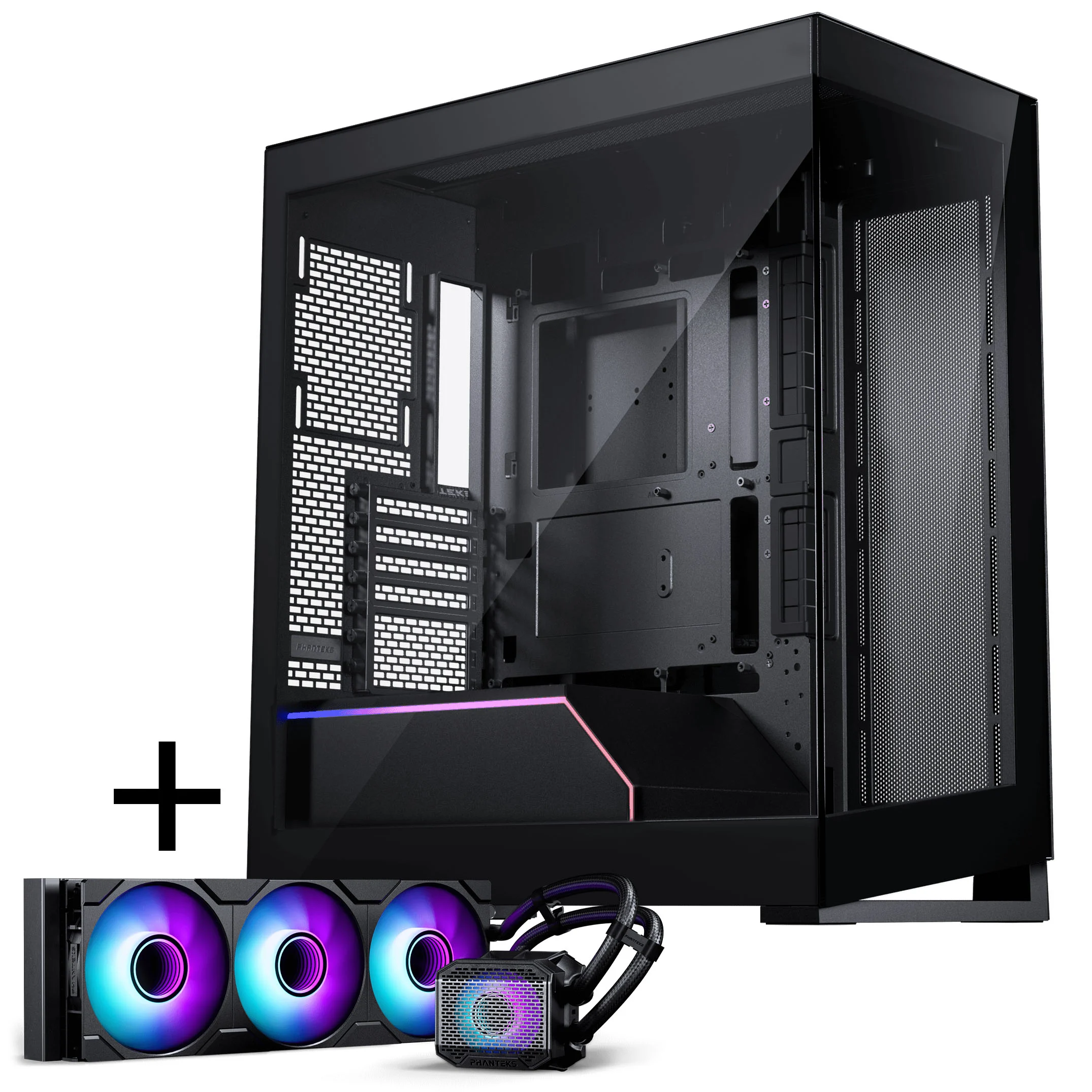

Phanteks Chassis NV Series NV5 Case DRGB Satin Black
✅ In Stock
🚚 Ships in 24–48 hours

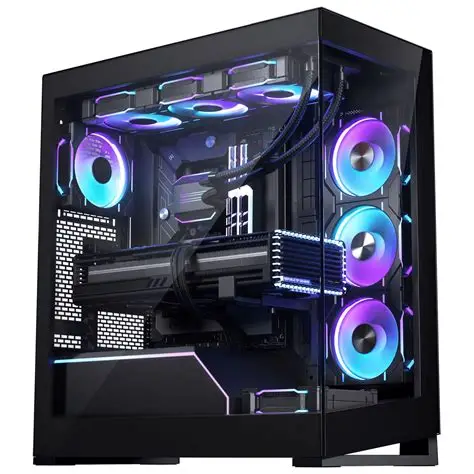

NV5 Performance with a view Meet the NV5 mid-tower chassis, featuring a stunning near-seamless glass view and support for 8 x 120 mm fans and dedicated space for a 360 radiator in the top and side for optimal cooling. With a dedicated bottom fan for enhanced GPU cooling and a spacious interior to accommodate modern GPUs and cables, the NV5 is designed to excel. Its PSU cover opens for easy cable management, and its DRGB lighting system is customizable and easy to sync. With its sleek design and convenient features, the NV5 is the perfect choice for a high-performance PC build that looks as good as it performs.
Build Includes
- 🔒 100% Sealed & Genuine Product
- 🔄 Easy Returns
- 🚚 Free & Safe Shipping
- 📸 Sealed Product Pictures Shared Pre-shipping
- Clean Cable Management
- 🔒 100% Sealed & Genuine Product
- 🔄 Easy Returns
- 🚚 Free & Safe Shipping
- 📸 Sealed Product Pictures Shared Pre-shipping
- Clean Cable Management
- 🔒 100% Sealed & Genuine Product
- 🔄 Easy Returns
- 🚚 Free & Safe Shipping
- 📸 Sealed Product Pictures Shared Pre-shipping
- Clean Cable Management
PRODUCT OVERVIEW
Model No.: PH-NV523TG_DBK01
UPC Code: 8.86523E+11
Case Dimensions: 239 x 477 x 528 mm | 9.4 x 18.8 x 20.8 in
Form Factor: Mid-Tower
Mainboard Support: “*E-ATX | ATX | Micro-ATX | Mini-ITX
*Up to 280mm without GPU Support Bracket”
Materials: Steel chassis | Tempered glass
Side Window: Yes
PCI Slots: 7
Vertical GPU Support: “3-slots
Riser Cable sold separately”
Internal 2.5? Bay: 4
Internal 3.5? Bay: 3
Front I/O: “1x USB-C 3.2 Gen 2
2x USB 3.0
Microphone | Headphone
D-RGB Mode Button
D-RGB Color Button
Power Button”
Total Fans: 8x | ?
Top: 3x | ?
Front: ? | ?
Side: 3x | ?
Rear: 1x | ?
Bottom: 1x | ?
Top: Max. 360 | ?
Front: ? | ?
Side: Max. 360 | ?
Rear: 120 | ?
Bottom: ? | ?
“CPU Cooler
Height”: 180 mm | 7.08 in
“GPU
Length”: 440 mm | 17.32 in
“GPU
Height”: 170 mm | 6.69 in
“Power Supply
Length”: 230 mm | 9.05 in
“Top Radiator
Length x Width”: 134 x 430 x 62 mm | 5.27 x 16.92 x 2.44 in
“Front Radiator
Length x Width”: ? | ?
“Side Radiator
Length x Width”: 130 x 420 x 62 mm | 5.11 x 16.53 x 2.44 in
“Rear Radiator
Length x Width”: 132 x 170 mm | 5.19 x 6.69 in
Net Weight: 11.28 kg | 24.9 lbs
Gross Weight: 13.97 kg | 30.8 lbs
Warranty: “5 Years limited
Learn more”
Scope of Delivery: 1x NV5 chassis
Accessory Box: “6x Zip ties
1x GPU support bracket”
Screws: “22x Mainboard | SSD screws
4x Power supply screws
4x Thumb screws
12x Case screws
1x Motherboard stand-off
1x Stand-off removal tool
